What is the Bosch Rexroth R187366372?

The roller guide rail is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 65

Format BNS: Width = wide, length = normal, height = standard

Guide rail made of carbon steel CS, matte-silver, hard chrome plated

Fastener MA: Bolting from above

Cover AB: Cover strip and protective caps

Accuracy class high

Number of partial sections: two-piece

Rail in standard version

Double-rowed for mounting from above

(with threaded holes at the end faces)

Corrosion-resistant Resist CR coating

Corrosion-resistant wide roller runner blocks and roller guide rails in Resist CR, matt silver finish, hard chrome-plated, available in accuracy class H (preload C2).

Hardened raceways smoothened on all sides

One cover for all bore holes saves time and costs

Cover strip made of corrosion-resistant spring steel as per DIN EN 10088

Cover strip can be mounted simply and securely

Clip on cover strip and lock

Specifications

Version	Roller rail systems
Nominal size [mm]	65/100
Format	BNS - wide guide rail
Material (profiled rail systems)	Hard chrome plated
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Guide rail cover	With cover strip
Max. length Lmax [mm]	3971.0
Note: Lmax	Roller guide rails R1873 .6 .. Resist CR only up to 3971 mm long
Number of holes nB (profiled rail systems)	53
Number of sections	Multi-part
Mass m (kg/m) [kg/m]	34.7
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100°C admissible for short time. For operation at lower minus temperatures, please consult us.
Weight [kg]	0
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Pitch T guide rail [mm]	75

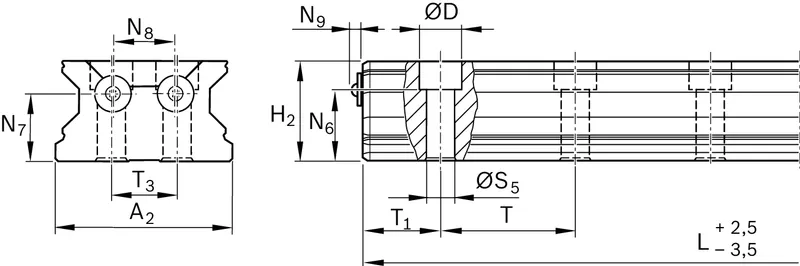

Dimension A2 (profiled rail systems) [mm]	100
Dimension D [mm]	24
Dimension diameter S5 (profiled rail systems)	20
Dimension H2 with cover strip (profiled rail systems) [mm]	58.15
Footnote of H2 with cover strip (profiled rail systems)	With cover strip 0.3 mm
Dimension N6 (profiled rail systems) [mm]	39
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension N7 (profiled rail systems) [mm]	40
Dimension N8 (profiled rail systems) [mm]	37
Dimension N9 (profiled rail systems) [mm]	4.8
Dimension T [mm]	75
Dimension T1 min [mm]	35.5
Dimension T1 s (profiled rail systems) [mm]	38
Footnote of dimension T1 min (profiled rail systems)	When undercutting T<sub>1 min</sub>, no front-side thread possible. Secure the cover strip! Observe the instruction for mounting!
Footnote of dimension T1 s (profiled rail systems)	Preferred dimension T<sub>1S</sub> with tolerance +1/-1.5
Height of guide rail H2 with cover strip [mm]	58.15
