Accessories for ball rail systems Compact Line Parts
Compare Accessories for ball rail systems Compact Line
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

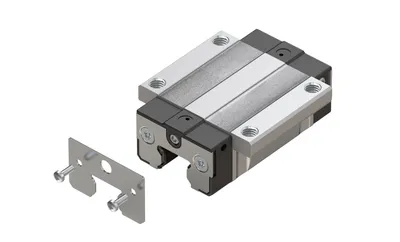

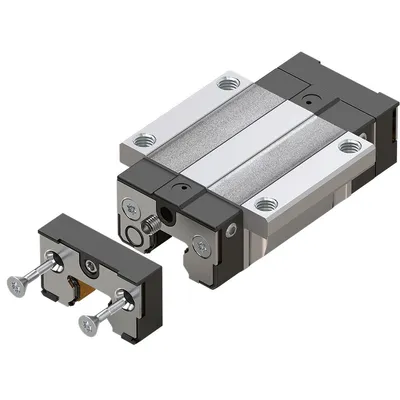

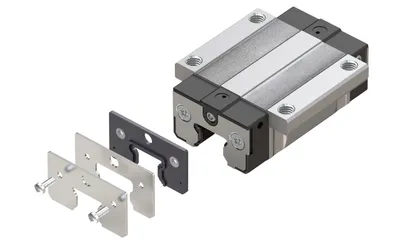

| MPN | Mass m (g) [g] | Dimension A4 (profiled rail system) [mm] | Dimension B3 [mm] | Dimension E9 (profiled rail systems) [mm] | Dimension H3 [mm] |
|---|---|---|---|---|---|
| R205Z49010 | 80.9 | 83.3 | 7 | 17.7 | 48 |
| R205Z39010 | 54.1 | 68 | 7 | 14.2 | 38.3 |
| R205Z79010 | 28.5 | 58 | 6 | 12.4 | 32.9 |
| R205Z29010 | 19.6 | 46 | 6 | 11.35 | 27.85 |
| R205Z89010 | 14.4 | 42.2 | 5.5 | 8.7 | 23.4 |
| R205Z19010 | 9.0 | 31.5 | 5.5 | 7.4 | 19.3 |
| R205Z40000 | 39.9 | 83.3 | 4 | 17.7 | 48 |
| R205Z30000 | 27.2 | 68 | 4 | 14.2 | 38.3 |
| R205Z70000 | 13.9 | 58 | 3.5 | 12.4 | 32.9 |
| R205Z20000 | 9.8 | 46 | 3.5 | 11.35 | 27.85 |
| R205Z80000 | 7.5 | 42.2 | 3 | 8.7 | 23.4 |
| R205Z10000 | 4.8 | 31.5 | 3 | 7.4 | 19.3 |
| R205Z42500 | 78.3 | 83.5 | 14.5 | 19.6 | 49.9 |
| R205Z32500 | 52.8 | 68.6 | 14 | 15.8 | 40.4 |
| R205Z72500 | 33.8 | 58.2 | 13.5 | 12.6 | 35.15 |
| R205Z22500 | 23.8 | 46.6 | 13 | 11.35 | 29.9 |
| R205Z82500 | 17.1 | 42.5 | 12.5 | 10.25 | 25.1 |
| R205Z12500 | 9.6 | 31.7 | 11.5 | 7.9 | 19.9 |
| R205Z41000 | — | 83.3 | 5.5 | 17.7 | 48 |
| R205Z31000 | — | 68 | 5.5 | 14.25 | 38.3 |
| R205Z71000 | — | 58 | 5 | 12.4 | 32.9 |
| R205Z21000 | — | 42.2 | 4.5 | 8.7 | 23.4 |
| R205Z81000 | — | 46 | 5 | 11.35 | 27.85 |
| R205Z11000 | — | 31.5 | 4.5 | 7.4 | 19.3 |
Common to all listed parts
| Accessories for | Runner block |
