LUBRICATING UNIT 35 BSCL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems Compact Line |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R205Z32500 be shipped?
R205Z32500 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R205Z32500 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R205Z32500 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R205Z32500, subject to availability and destination.

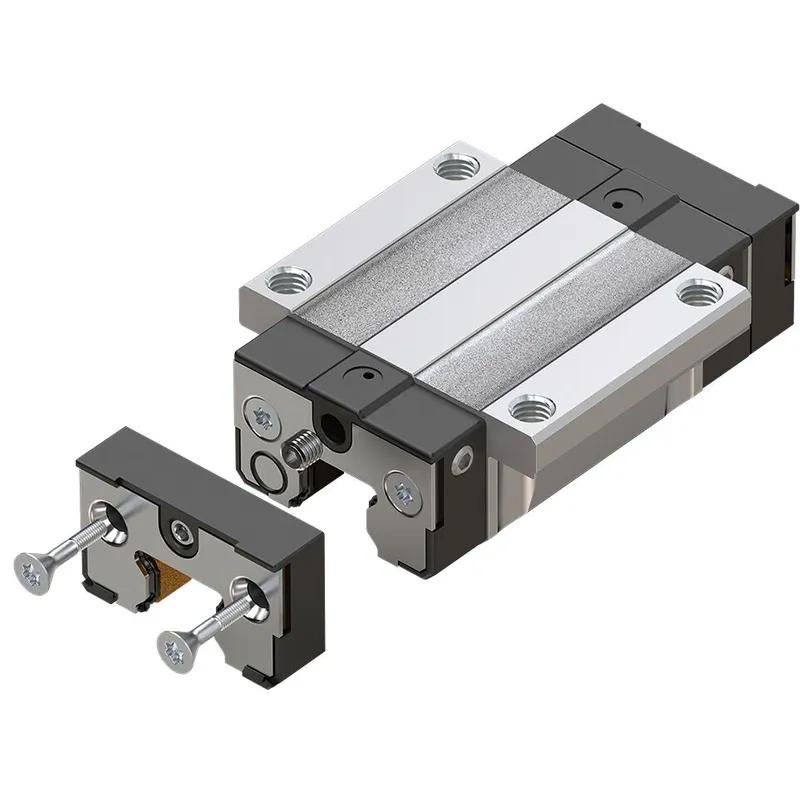

Front lube unit for ball runner blocks Compact Line
Size 35
For extended travel distances without relubrication
Ball runner block only requires initial lubrication with grease
Front lube units on both sides of the ball runner block
Low lubricant loss
Reduced oil consumption
No lubrication lines
Max. operating temperature 60°C
Lube connection on the end-face of the front lube unit is suitable for lubricating the ball runner block with grease.
Specifications
Specifications

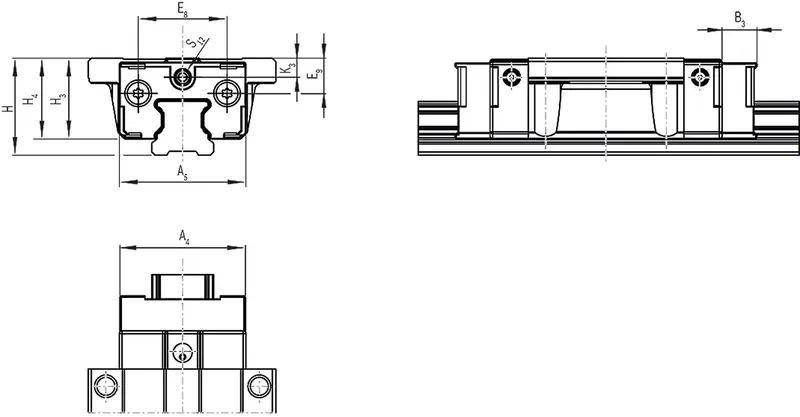

| Accessories for | Runner block |
| Nominal size [mm] | 35 |
| Height runner block with guide rail [mm] | 48.1 |
| Mass m (g) [g] | 52.8 |
| Weight [kg] | 0.06 |
| Dimension A4 (profiled rail system) [mm] | 68.6 |
| Dimension B3 [mm] | 14 |
| Dimension E8 (profiled rail systems) [mm] | 50 |
| Dimension E9 (profiled rail systems) [mm] | 15.8 |
| Dimension H [mm] | 48.1 |
| Dimension H3 [mm] | 40.4 |
| Dimension K3 (profiled rail systems) [mm] | 7.1 |
