FRONT SEAL 25 BSCL
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories for ball rail systems Compact Line |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R205Z21000 be shipped?
R205Z21000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R205Z21000 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R205Z21000 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R205Z21000, subject to availability and destination.

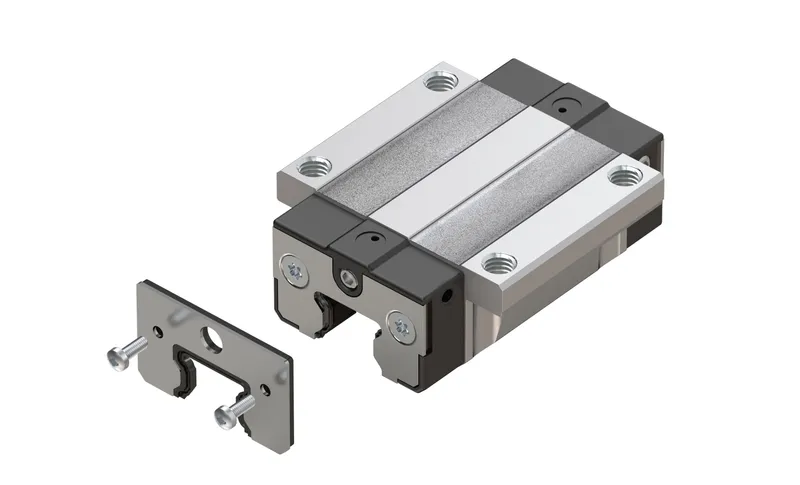

Front seal for ball rail system Compact Line
Size 25
Material: Corrosion resistant steel as per DIN EN 10088 with plastic seal ring
Design: bright
Specifications
Specifications
| Accessories for | Runner block |
| Nominal size [mm] | 25 |
| Weight [kg] | 0.02 |

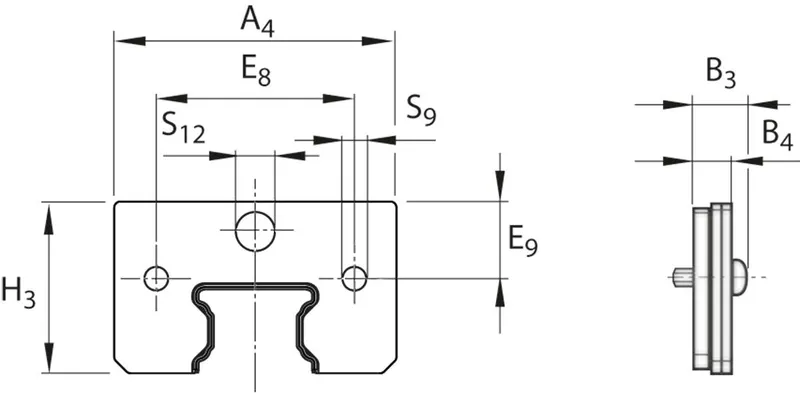

| Dimension A4 (profiled rail system) [mm] | 42.2 |
| Dimension B3 [mm] | 4.5 |
| Dimension B4 [mm] | 2.5 |
| Dimension diameter S12 (profiled rail systems) [mm] | 5 |
| Dimension diameter S9 (profiled rail systems) [mm] | 2,8 |
| Dimension E8 (profiled rail systems) [mm] | 29 |
| Dimension E9 (profiled rail systems) [mm] | 8.7 |
| Dimension H3 [mm] | 23.4 |
