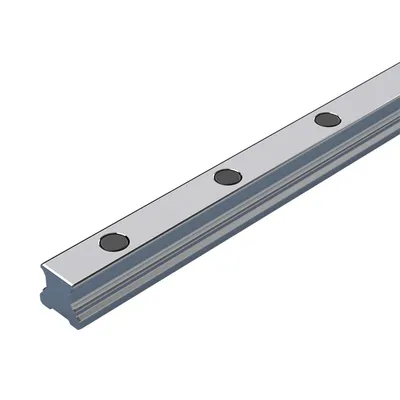

Ball guide rails Compact Line BSCL Parts
























Compare Ball guide rails Compact Line BSCL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Accuracy class | Max. length Lmax [mm] | Number of sections | Weight [kg] |
|---|---|---|---|---|---|
| R205520432 | 25 | N - Normal | 3836.0 | 2-piece | 0 |
| R205520431 | 25 | N - Normal | 3836.0 | 1-piece | 0 |
| R205520451 | 25 | N - Normal | 4150.0 | — | 2.56 |
| R205520338 | 25 | H - Highly accurate | 3836.0 | 8-piece | 0 |
| R205520337 | 25 | H - Highly accurate | 3836.0 | 7-piece | 0 |
| R205520336 | 25 | H - Highly accurate | 3836.0 | 6-piece | 0 |
| R205520335 | 25 | H - Highly accurate | 3836.0 | 5-piece | 0 |
| R205520334 | 25 | H - Highly accurate | 3836.0 | 4-piece | 0 |
| R205520333 | 25 | H - Highly accurate | 3836.0 | 3-piece | 0 |
| R205520332 | 25 | H - Highly accurate | 3836.0 | 2-piece | 0 |
| R205520331 | 25 | H - Highly accurate | 3836.0 | 1-piece | 0 |
| R205520351 | 25 | H - Highly accurate | 4150.0 | — | 10.5 |
| R205580238 | 20 | P - Precise | 3836.0 | 8-piece | 0 |
| R205580237 | 20 | P - Precise | 3836.0 | 7-piece | 0 |
| R205580236 | 20 | P - Precise | 3836.0 | 6-piece | 0 |
| R205580235 | 20 | P - Precise | 3836.0 | 5-piece | 0 |
| R205580233 | 20 | P - Precise | 3836.0 | 3-piece | 0 |
| R205580232 | 20 | P - Precise | 3836.0 | 2-piece | 0 |
| R205580231 | 20 | P - Precise | 3836.0 | 1-piece | 0 |
| R205580251 | 20 | P - Precise | 4150.0 | — | 7.4 |
| R205580438 | 20 | N - Normal | 3836.0 | 8-piece | 0 |
| R205580437 | 20 | N - Normal | 3836.0 | 7-piece | 0 |
| R205580436 | 20 | N - Normal | 3836.0 | 6-piece | 0 |
| R205580435 | 20 | N - Normal | 3836.0 | 5-piece | 0 |
Common to all listed parts
| Version | Ball rail system |
| Format | SNS - Standard guide rail |
| Guide rail mounting | For bolting from above |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Pitch T guide rail [mm] | 60 |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
| Dimension T [mm] | 60 |
| Dimension T1 max (profiled rail systems) [mm] | 50 |
