BALL GUIDE RAIL CARBON STEEL KSE-025-SNS-H

Name: Bosch Rexroth R205520351 – BALL GUIDE RAIL CARBON STEEL KSE-025-SNS-H
Brand: Bosch Rexroth
SKU: R205520351

MPN: R205520351 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Ball guide rails Compact Line BSCL
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R205520351 be shipped?

R205520351 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R205520351 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R205520351 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R205520351, subject to availability and destination.

The Compact Line ball guide rail is precise and characterized by the following product features:

Size 25

Format SNS: Width = slimline, length = normal, height = standard

Guide rail made of carbon steel CS

Fastener MA: Bolting from above

Cover AK: Plastic caps

Accuracy class highly accurate

Rail in factory length

Factory lengths are guide rails without end machining which are only available in four-meter sections.

Specifications

Version	Ball rail system
Nominal size [mm]	25
Format	SNS - Standard guide rail
Accuracy class	H - Highly accurate
Guide rail mounting	For bolting from above
Max. length Lmax [mm]	4150.0
Mass m (kg/m) [kg/m]	2.6
Weight [kg]	10.5
Recommended rail length (formula)	L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.

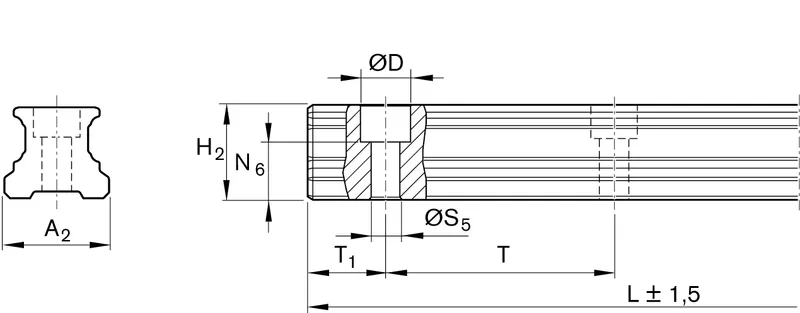

Pitch T guide rail [mm]	60
Dimension A2 (profiled rail systems) [mm]	23
Dimension D [mm]	11
Dimension H2 without cover strip (profiled rail systems) [mm]	20
Dimension N6 (profiled rail systems) [mm]	11.3
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S5 (profiled rail system) [mm]	7
Dimension T [mm]	60
Dimension T1 max (profiled rail systems) [mm]	50
Dimension T1 min [mm]	10
Dimension T1 s (profiled rail systems) [mm]	28
