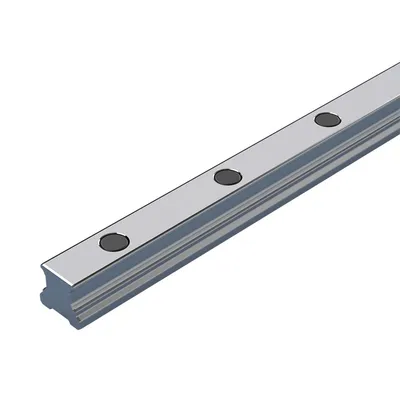

Ball guide rails Compact Line BSCL Parts
























Compare Ball guide rails Compact Line BSCL
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Nominal size [mm] | Accuracy class | Max. length Lmax [mm] | Number of sections | Weight [kg] |
|---|---|---|---|---|---|
| R205570338 | 30 | H - Highly accurate | 3836.0 | 8-piece | 0 |
| R205570337 | 30 | H - Highly accurate | 3836.0 | 7-piece | 0 |
| R205570336 | 30 | H - Highly accurate | 3836.0 | 6-piece | 0 |
| R205570335 | 30 | H - Highly accurate | 3836.0 | 5-piece | 0 |
| R205570334 | 30 | H - Highly accurate | 3836.0 | 4-piece | 0 |
| R205570333 | 30 | H - Highly accurate | 3836.0 | 3-piece | 0 |
| R205570332 | 30 | H - Highly accurate | 3836.0 | 2-piece | 0 |
| R205570331 | 30 | H - Highly accurate | 3836.0 | 1-piece | 0 |
| R205570351 | 30 | H - Highly accurate | 4150.0 | — | 14.5 |
| R205520238 | 25 | P - Precise | 3836.0 | 8-piece | 0 |
| R205520237 | 25 | P - Precise | 3836.0 | 7-piece | 0 |
| R205520236 | 25 | P - Precise | 3836.0 | 6-piece | 0 |
| R205520235 | 25 | P - Precise | 3836.0 | 5-piece | 0 |
| R205520234 | 25 | P - Precise | 3836.0 | 4-piece | 0 |
| R205520233 | 25 | P - Precise | 3836.0 | 3-piece | 0 |
| R205520232 | 25 | P - Precise | 3836.0 | 2-piece | 0 |
| R205520231 | 25 | P - Precise | 3836.0 | 1-piece | 0 |
| R205520251 | 25 | P - Precise | 4150.0 | — | 10.5 |
| R205520438 | 25 | N - Normal | 3836.0 | 8-piece | 0 |
| R205520437 | 25 | N - Normal | 3836.0 | 7-piece | 0 |
| R205520436 | 25 | N - Normal | 3836.0 | 6-piece | 0 |
| R205520435 | 25 | N - Normal | 3836.0 | 5-piece | 0 |
| R205520434 | 25 | N - Normal | 3836.0 | 4-piece | 0 |
| R205520433 | 25 | N - Normal | 3836.0 | 3-piece | 0 |
Common to all listed parts
| Version | Ball rail system |
| Format | SNS - Standard guide rail |
| Guide rail mounting | For bolting from above |
| Recommended rail length (formula) | L = n<sub>B </sub>• T<sub> </sub>‒ 4 mm |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
