Accessories for ball rail systems Parts
























Compare Accessories for ball rail systems

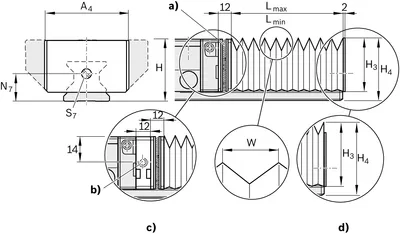

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

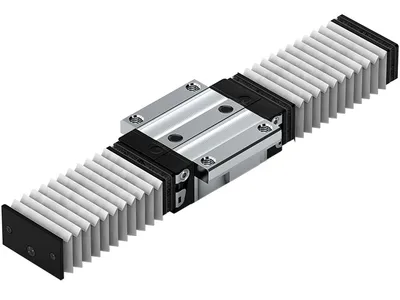

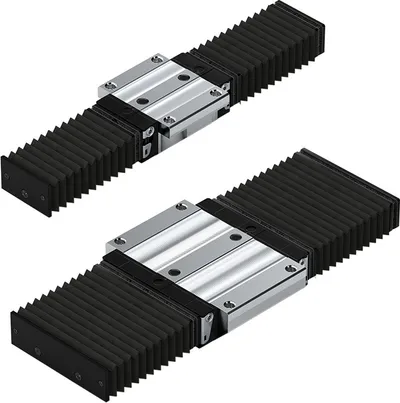

| MPN | Type | Dimension A4 (profiled rail system) [mm] | Dimension H3 [mm] | Dimension H4 [mm] | Dimension W [mm] |
|---|---|---|---|---|---|
| R160045900 | Type 9 | 88 | 55 | 64 | 32.9 |
| R160040900 | Type 9 | 83 | 49 | 59 | 26.9 |
| R162045800 | Type 8 | 88 | 55 | 64 | 32.9 |
| R162040800 | Type 8 | 83 | 49 | 59 | 26.9 |
| R162045700 | Type 7 | 88 | 55 | 64 | 32.9 |
| R162040700 | Type 7 | 83 | 49 | 59 | 26.9 |
| R162045600 | Type 6 | 88 | 55 | 64 | 32.9 |
| R162040600 | Type 6 | 83 | 49 | 59 | 26.9 |
| R162045500 | Type 5 | 88 | 55 | 64 | 32.9 |
| R162045400 | Type 4 | 88 | 55 | 64 | 32.9 |
| R162040400 | Type 4 | 83 | 49 | 59 | 26.9 |
| R162045300 | Type 3 | 88 | 55 | 64 | 32.9 |
| R162040300 | Type 3 | 83 | 49 | 59 | 26.9 |
| R162045200 | Type 2 | 88 | 55 | 64 | 32.9 |
| R162040200 | Type 2 | 83 | 49 | 59 | 26.9 |
| R182045200 | Type 2 | 88 | 55 | 64 | 32.9 |
| R162045100 | Type 1 | 88 | 55 | 64 | 32.9 |
| R162040100 | Type 1 | 83 | 49 | 59 | 26.9 |
| R167030900 | Type 9 | 128 | 42 | 49 | 19.9 |
| R167030400 | Type 4 | 128 | 42 | 49 | 19.9 |
| R167030200 | Type 2 | 128 | 42 | 49 | 19.9 |
| R160035900 | Type 9 | 74 | 47 | 54 | 29.9 |
| R160030900 | Type 9 | 64 | 39 | 47 | 19.9 |
| R162035800 | Type 8 | 74 | 47 | 54 | 29.9 |
Common to all listed parts
| Accessories for | Runner block |
| Factor U footnote | Calculation factor (see project planning notes) |
