Bosch Rexroth R160035900

BELLOWS 35 TYP 9 HEAT RESIST.

MPN: R160035900
Category: Accessories for ball rail systems

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

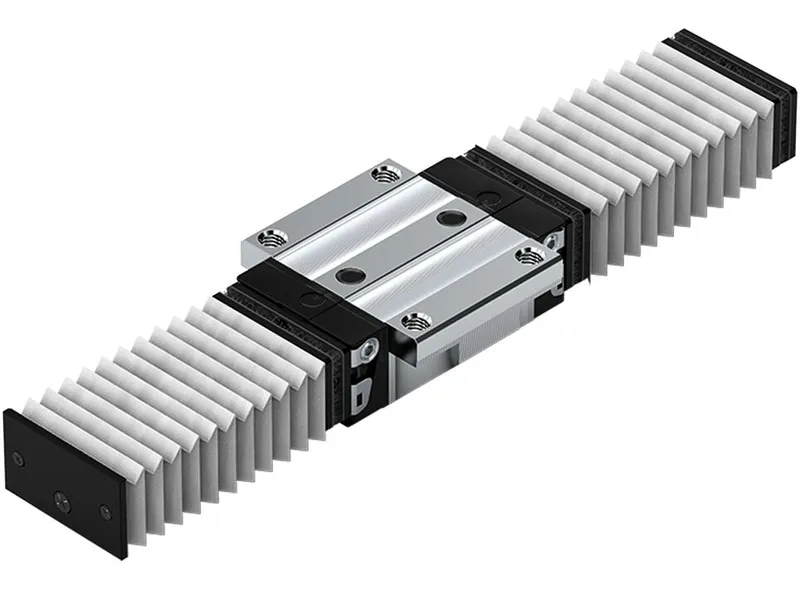

What is the Bosch Rexroth R160035900?

Bellows (heat-resistant) for ball rail systems

Type 9: Loose bellows (spare part)

Size = 35

Material: Nomex fabric, metalized on both sides

Temperature rating

Non combustible, non flammable

Resistant to sparks, welding spatter and hot chips.

The protective metal coating can withstand peak temperatures of up to 200°C

100°C operating temperature for the total bellows

Specifications

Accessories for	Runner block
Nominal size [mm]	35
Type	Type 9
Height runner block with guide rail [mm]	48.0
Weight [kg]	0
Factor U footnote	Calculation factor (see project planning notes)

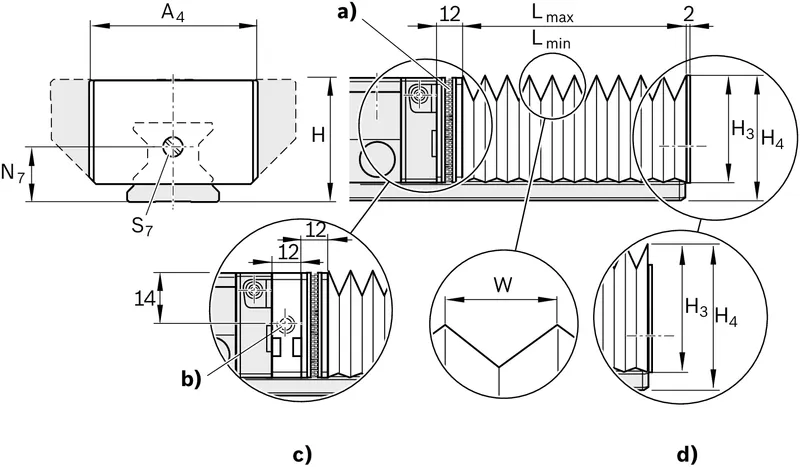

Dimension A4 (profiled rail system) [mm]	74
Dimension B3 [mm]	12
Dimension H [mm]	48.0
Dimension H3 [mm]	47
Dimension H4 [mm]	54
Dimension K3 (profiled rail systems) [mm]	8
Dimension W [mm]	29.9
