High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Preload class | Accuracy class | Seal | Ball chain | Weight [kg] |
|---|---|---|---|---|---|
| R16233382Z | C3 - High preload | XP - Extra precise | DS - Double-lip seal | Without ball chain (standard) | 1.7 |
| R16233382Y | C3 - High preload | XP - Extra precise | DS - Double-lip seal | With ball chain | 1.7 |
| R162333822 | C3 - High preload | XP - Extra precise | SS - Standard seal | With ball chain | 1.7 |
| R162333820 | C3 - High preload | XP - Extra precise | SS - Standard seal | Without ball chain (standard) | 1.7 |
| R16233282Z | C2 - Medium preload | XP - Extra precise | DS - Double-lip seal | Without ball chain (standard) | 1.7 |
| R16233282Y | C2 - Medium preload | XP - Extra precise | DS - Double-lip seal | With ball chain | 1.7 |
| R162332822 | C2 - Medium preload | XP - Extra precise | SS - Standard seal | With ball chain | 1.79 |
| R162332820 | C2 - Medium preload | XP - Extra precise | SS - Standard seal | Without ball chain (standard) | 1.8 |
| R16233222Z | C2 - Medium preload | P - Precise | DS - Double-lip seal | Without ball chain (standard) | 1.79 |
| R16233222Y | C2 - Medium preload | P - Precise | DS - Double-lip seal | With ball chain | 1.7 |
| R162332222 | C2 - Medium preload | P - Precise | SS - Standard seal | With ball chain | 1.79 |
| R162332220 | C2 - Medium preload | P - Precise | SS - Standard seal | Without ball chain (standard) | 1.79 |
| R162332420 | C2 - Medium preload | N - Normal | SS - Standard seal | Without ball chain (standard) | 1.78 |
| R16233232Z | C2 - Medium preload | H - Highly accurate | DS - Double-lip seal | Without ball chain (standard) | 1.36 |
| R16233232Y | C2 - Medium preload | H - Highly accurate | DS - Double-lip seal | With ball chain | 1.7 |
| R162332322 | C2 - Medium preload | H - Highly accurate | SS - Standard seal | With ball chain | 1.7 |
| R162332320 | C2 - Medium preload | H - Highly accurate | SS - Standard seal | Without ball chain (standard) | 1.8 |
| R16233182Z | C1 - Low preload | XP - Extra precise | DS - Double-lip seal | Without ball chain (standard) | 1.7 |
| R16233182Y | C1 - Low preload | XP - Extra precise | DS - Double-lip seal | With ball chain | 1.7 |
| R162331823 | C1 - Low preload | XP - Extra precise | LS - Low-friction seal | With ball chain | 1.7 |
| R162331822 | C1 - Low preload | XP - Extra precise | SS - Standard seal | With ball chain | 1.7 |

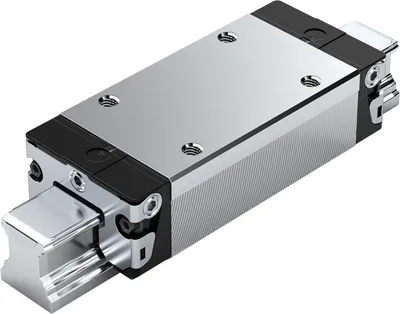

| R162331821 | C1 - Low preload | XP - Extra precise | LS - Low-friction seal | Without ball chain (standard) | 1.7 |
| R162331820 | C1 - Low preload | XP - Extra precise | SS - Standard seal | Without ball chain (standard) | 1.7 |
| R16233122Z | C1 - Low preload | P - Precise | DS - Double-lip seal | Without ball chain (standard) | 1.8 |
Common to all listed parts
| Nominal size [mm] | 35 |
| Format | SLS - slimline, long, standard height |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 70.0 |
| Length of runner block [mm] | 139.0 |
| Height of runner block [mm] | 40.4 |
