High-precision ball runner block BSHP Parts

Bosch Rexroth

R162231320

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNS-C1-H-1

Bosch Rexroth

R162239422

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNS-C0-N-1

Bosch Rexroth

R162239420

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNS-C0-N-1

Bosch Rexroth

R162239322

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNS-C0-H-1

Bosch Rexroth

R162239320

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNS-C0-H-1

Bosch Rexroth

R16213382Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C3-X-1

Bosch Rexroth

R16213382Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C3-X-1

Bosch Rexroth

R162133822

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C3-X-1

Bosch Rexroth

R162133820

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C3-X-1

Bosch Rexroth

R16213282Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-X-1

Bosch Rexroth

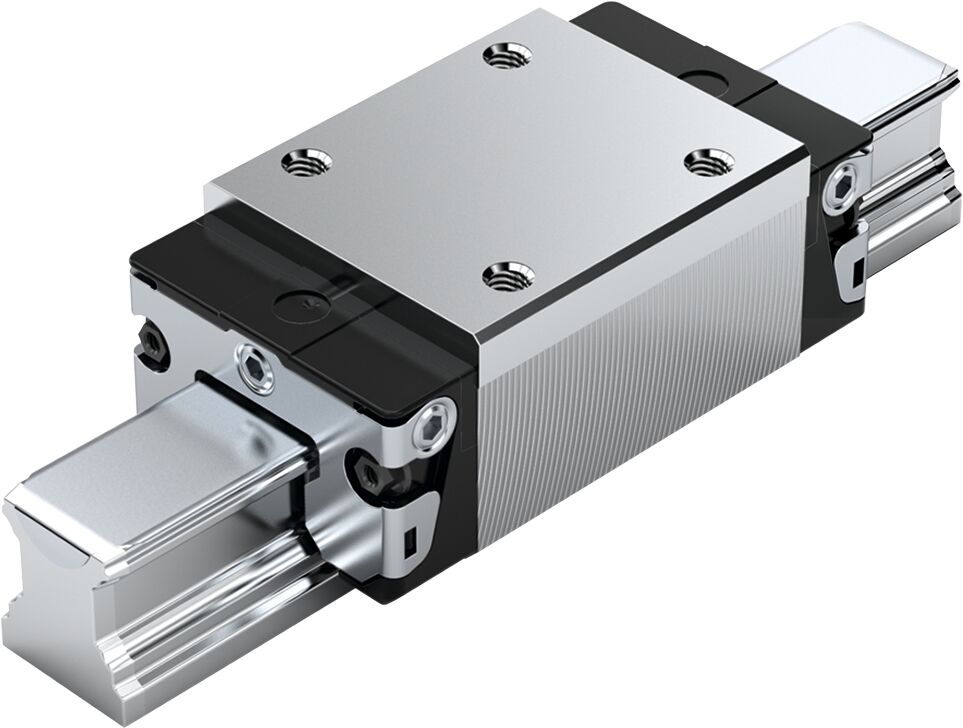

R16213282Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-X-1

Bosch Rexroth

R162132822

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-X-1

Bosch Rexroth

R162132820

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-X-1

Bosch Rexroth

R16213222Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-P-1

Bosch Rexroth

R16213222Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-P-1

Bosch Rexroth

R162132222

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-P-1

Bosch Rexroth

R162132220

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-P-1

Bosch Rexroth

R162132420

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-N-1

Bosch Rexroth

R16213232Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-H-1

Bosch Rexroth

R16213232Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-H-1

Bosch Rexroth

R162132322

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-H-1

Bosch Rexroth

R162132320

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C2-H-1

Bosch Rexroth

R16213182Z

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth

R16213182Y

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Format	Preload class	Accuracy class	Seal	Weight [kg]
R162231320	SNS - slimline, normal, standard height	C1 - Low preload	H - Highly accurate	SS - Standard seal	1.36
R162239422	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	1.36
R162239420	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	1.25
R162239322	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	1.36
R162239320	SNS - slimline, normal, standard height	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	1.25
R16213382Z	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	DS - Double-lip seal	1.55
R16213382Y	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	DS - Double-lip seal	1.55
R162133822	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	SS - Standard seal	1.55
R162133820	SNH - slimline, normal, high	C3 - High preload	XP - Extra precise	SS - Standard seal	1.55
R16213282Z	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	DS - Double-lip seal	1.55
R16213282Y	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	DS - Double-lip seal	1.55
R162132822	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	SS - Standard seal	1.65
R162132820	SNH - slimline, normal, high	C2 - Medium preload	XP - Extra precise	SS - Standard seal	1.55
R16213222Z	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	DS - Double-lip seal	1.55
R16213222Y	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	DS - Double-lip seal	1.55
R162132222	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	SS - Standard seal	1.65
R162132220	SNH - slimline, normal, high	C2 - Medium preload	P - Precise	SS - Standard seal	1.66
R162132420	SNH - slimline, normal, high	C2 - Medium preload	N - Normal	SS - Standard seal	1.55
R16213232Z	SNH - slimline, normal, high	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	1.66
R16213232Y	SNH - slimline, normal, high	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	1.55
R162132322	SNH - slimline, normal, high	C2 - Medium preload	H - Highly accurate	SS - Standard seal	1.55
R162132320	SNH - slimline, normal, high	C2 - Medium preload	H - Highly accurate	SS - Standard seal	1.66
R16213182Z	SNH - slimline, normal, high	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	1.55
R16213182Y	SNH - slimline, normal, high	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	1.55

Common to all listed parts

Nominal size [mm]	35
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	70.0
Length of runner block [mm]	110.5
Lubrication	Pre-lubricated, preserved
Maximum acceleration rate amax [m/s²]	500.0
