High-precision ball runner block BSHP Parts

Bosch Rexroth R162131823 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth R162131822 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth R162131821 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth R162131820 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-X-1

Bosch Rexroth R16213122Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth R16213122Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth R162131222 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth R162131220 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-P-1

Bosch Rexroth R16213142Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth R16213142Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth R162131423 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth R162131422 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth R162131421 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth R162131420 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-N-1

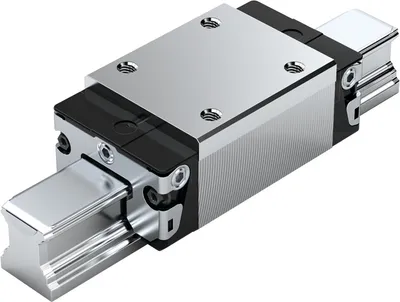

Bosch Rexroth R16213132Z – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R16213132Y – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R162131323 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R162131322 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R162131321 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R162131320 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C1-H-1

Bosch Rexroth R162139422 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-N-1

Bosch Rexroth R162139420 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-N-1

Bosch Rexroth R162139322 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-H-1

Bosch Rexroth R162139320 – BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-035-SNH-C0-H-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Weight [kg]
R162131823	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	With ball chain	1.55
R162131822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	1.55
R162131821	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	Without ball chain (standard)	1.55
R162131820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	1.55
R16213122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	1.55
R16213122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	1.55
R162131222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	1.55
R162131220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	1.55
R16213142Z	C1 - Low preload	N - Normal	DS - Double-lip seal	Without ball chain (standard)	1.55
R16213142Y	C1 - Low preload	N - Normal	DS - Double-lip seal	With ball chain	1.55
R162131423	C1 - Low preload	N - Normal	LS - Low-friction seal	With ball chain	1.55
R162131422	C1 - Low preload	N - Normal	SS - Standard seal	With ball chain	1.65
R162131421	C1 - Low preload	N - Normal	LS - Low-friction seal	Without ball chain (standard)	1.55
R162131420	C1 - Low preload	N - Normal	SS - Standard seal	Without ball chain (standard)	1.55
R16213132Z	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	1.55
R16213132Y	C1 - Low preload	H - Highly accurate	DS - Double-lip seal	With ball chain	1.55
R162131323	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	With ball chain	1.55
R162131322	C1 - Low preload	H - Highly accurate	SS - Standard seal	With ball chain	1.55
R162131321	C1 - Low preload	H - Highly accurate	LS - Low-friction seal	Without ball chain (standard)	1.55
R162131320	C1 - Low preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	1.65
R162139422	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	With ball chain	1.65
R162139420	C0 - Without preload (clearance)	N - Normal	SS - Standard seal	Without ball chain (standard)	1.55
R162139322	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	With ball chain	1.55
R162139320	C0 - Without preload (clearance)	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	1.66

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	35
Format	SNH - slimline, normal, high
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	70.0
Length of runner block [mm]	110.5
