High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] |
|---|---|---|---|---|---|

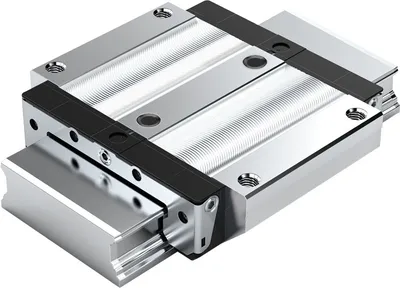

| R167159372 | 0.45 | 17300.0 | 13700.0 | 18200.0 | 390.0 |
| R167159370 | 0.45 | 18800.0 | 14900.0 | 20600.0 | 430.0 |
| R162119373 | 0.2 | 11200.0 | 8850.0 | 10800.0 | 110.0 |
| R162119372 | 0.2 | 11200.0 | 8850.0 | 10800.0 | 110.0 |
| R162119371 | 0.2 | 12400.0 | 9860.0 | 12700.0 | 120.0 |

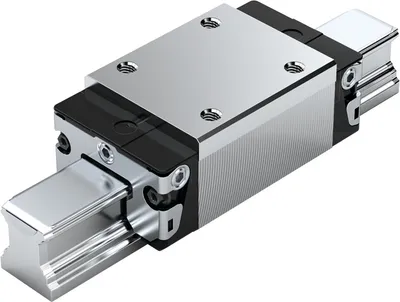

| R162119370 | 0.2 | 12400.0 | 9860.0 | 12700.0 | 120.0 |
| R162261360 | 6.9 | 217000.0 | 172000.0 | 280000.0 | 8580.0 |
| R162269360 | 6.9 | 217000.0 | 172000.0 | 280000.0 | 8580.0 |
| R162361360 | 9.8 | 281000.0 | 223000.0 | 404000.0 | 11100.0 |

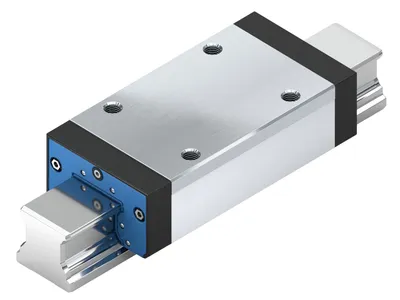

| R162369360 | 9.8 | 281000.0 | 223000.0 | 404000.0 | 11100.0 |
| R165161360 | 10.25 | 217000.0 | 172000.0 | 280000.0 | 8580.0 |

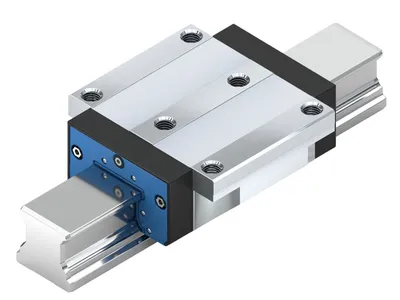

| R165169360 | 10.25 | 217000.0 | 172000.0 | 280000.0 | 8580.0 |
| R165361360 | 14.15 | 281000.0 | 223000.0 | 404000.0 | 11100.0 |

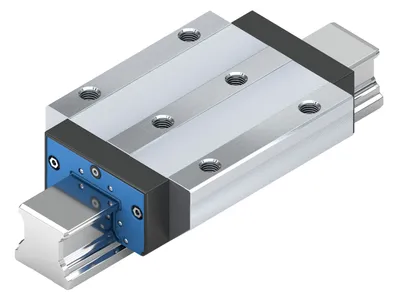

| R165369360 | 14.15 | 281000.0 | 223000.0 | 404000.0 | 11100.0 |

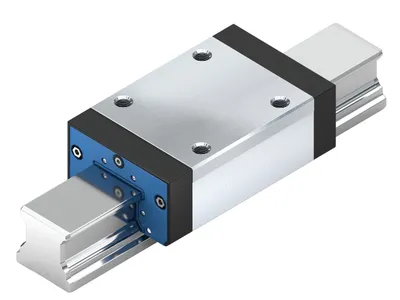

| R162251360 | 3.8 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |
| R162259360 | 4.03 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |
| R162151360 | 4.7 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |

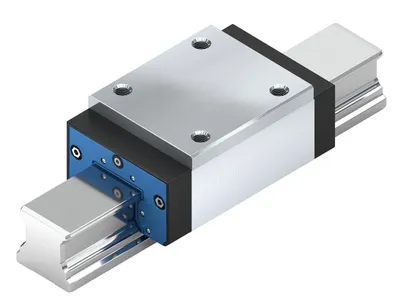

| R162159360 | 4.7 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |
| R162351360 | 4.8 | 175000.0 | 139000.0 | 245000.0 | 5560.0 |
| R162359360 | 4.8 | 175000.0 | 139000.0 | 245000.0 | 5560.0 |

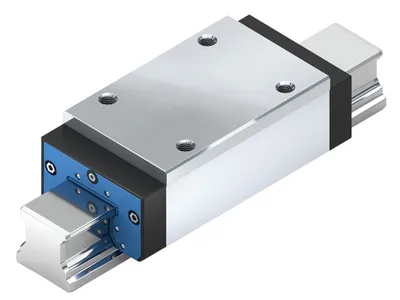

| R162451360 | 6.41 | 175000.0 | 139000.0 | 245000.0 | 5560.0 |
| R162459360 | 6.34 | 175000.0 | 139000.0 | 245000.0 | 5560.0 |
| R165151360 | 5.04 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |
| R165159360 | 5.04 | 137000.0 | 109000.0 | 174000.0 | 4390.0 |
Common to all listed parts
| Version | Ball rail system |
| Material (profiled rail systems) | Hard chrome plated |
| Accuracy class | H - Highly accurate |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Dimension N6 tolerance (profiled rail systems) [mm] | ±0.5 |
