High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Weight [kg] | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] |
|---|---|---|---|---|---|
| R162479370 | 1.2 | 58000.0 | 46000.0 | 66900.0 | 1010.0 |
| R162129374 | 0.6 | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R162129373 | 0.6 | 33600.0 | 26700.0 | 32300.0 | 480.0 |

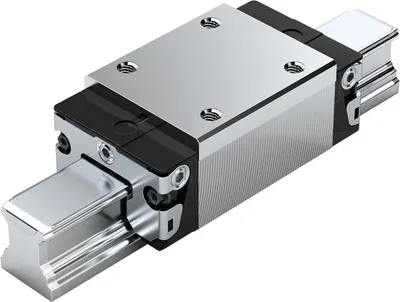

| R162129372 | 0.6 | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R162129371 | 0.6 | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R162129370 | 0.6 | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R162429373 | 0.8 | 43800.0 | 34800.0 | 47300.0 | 630.0 |
| R162429372 | 0.8 | 43800.0 | 34800.0 | 47300.0 | 630.0 |

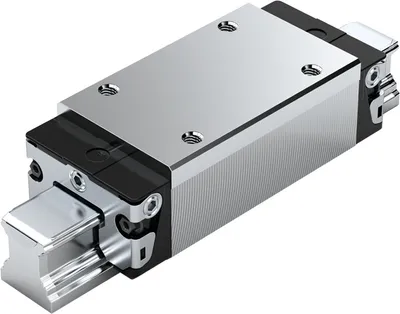

| R162429371 | 0.8 | 47000.0 | 37300.0 | 52500.0 | 670.0 |
| R162429370 | 0.8 | 47000.0 | 37300.0 | 52500.0 | 670.0 |
| R16722937Z | 1 | 45600.0 | 36200.0 | 50200.0 | 1700.0 |
| R16722937Y | 1 | 42500.0 | 33700.0 | 45200.0 | 1590.0 |
| R167229372 | 1 | 42500.0 | 33700.0 | 45200.0 | 1590.0 |
| R167229370 | 1 | 45600.0 | 36200.0 | 50200.0 | 1700.0 |
| R16712937Z | 1.32 | 45600.0 | 36200.0 | 50200.0 | 1700.0 |
| R16712937Y | 1.33 | 42500.0 | 33700.0 | 45200.0 | 1590.0 |
| R167129372 | 1.32 | 42500.0 | 33700.0 | 45200.0 | 1590.0 |
| R167129370 | 1.33 | 45600.0 | 36200.0 | 50200.0 | 1700.0 |
| R16725937Z | 0.3 | 18800.0 | 14900.0 | 20600.0 | 430.0 |
| R16725937Y | 0.3 | 17300.0 | 13700.0 | 18200.0 | 390.0 |
| R167259372 | 0.3 | 17300.0 | 13700.0 | 18200.0 | 390.0 |

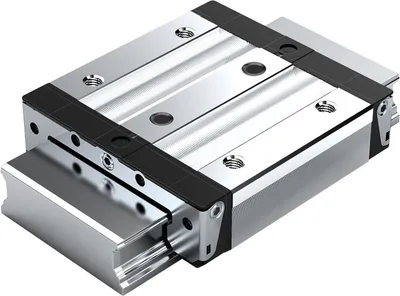

| R167259370 | 0.3 | 18800.0 | 14900.0 | 20600.0 | 430.0 |
| R16715937Z | 0.4 | 18800.0 | 14900.0 | 20600.0 | 430.0 |

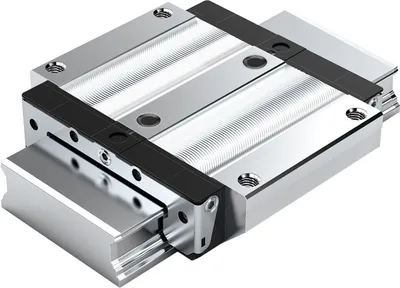

| R16715937Y | 0.45 | 17300.0 | 13700.0 | 18200.0 | 390.0 |
Common to all listed parts
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
