Bosch Rexroth R162351360

BALL RUNNER BLOCK RESIST CR KWC-055-SLS-C1-H-2

MPN: R162351360
Category: High-precision ball runner block BSHP

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R162351360?

The ball runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:

Size 55

Format SLS: Width = slimline, length = long, height = standard

Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated

Preload class C1: Low preload

Accuracy class H: High

Without ball chain

Preserved

Without initial lubrication

Without attachment element, left (front reference edge)

Without attachment element, right (front reference edge)

45° angular lube nipples loosely attached.

Runner block body in standard version

Overall length of the runner block = 199.0 mm

Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

Area of application: For restricted space in the transverse direction

Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity

Maximum rigidity in all load directions

High torque load capacity

Steel ball runner block body with corrosion-resistant coating, matt silver finish, hard chrome plated

Different preload classes

Smooth, quiet running thanks to optimally designed ball return and guideway

Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection

Long-term lubrication is possible over several years

Specifications

Version	Ball rail system
Nominal size [mm]	55
Format	SLS - slimline, long, standard height
Model	Heavy-duty ball runner block
Material (profiled rail systems)	Hard chrome plated
Preload class	C1 - Low preload
Accuracy class	H - Highly accurate
Seal	SS - Standard seal
Ball chain	Without ball chain (standard)
Self-aligning for compensation of misalignments	Without self-alignment

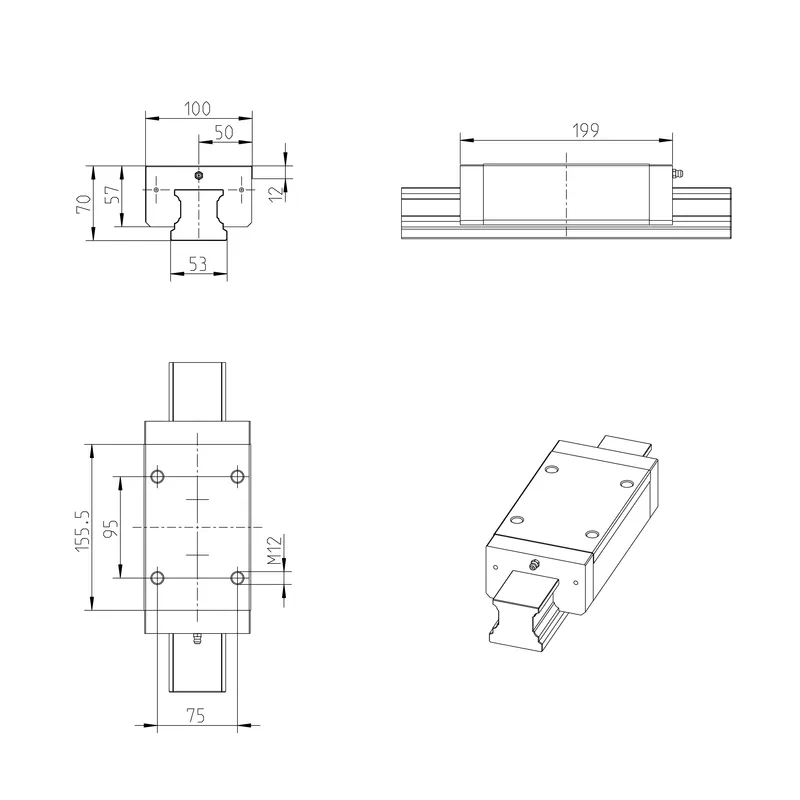

Width of runner block [mm]	100.0
Length of runner block [mm]	199.0
Height of runner block [mm]	57.0
Height runner block with guide rail [mm]	70.0
Lubrication	Preserved
Maximum acceleration rate amax [m/s²]	250.0
Note: Max. acceleration amax	If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup>
Maximum permissible linear speed vmax [m/s]	5.0
Permissible ambient temperature (min. ... max.)	-10 °C ... +80 °C
Note: permissible ambient temperature (min. ... max.)	100 °C admissible for short time. For operation at negative temperatures, please consult us.
Friction coefficient μ	0.002 ... 0.003
Note: friction coefficient μ	Without friction of seal
Weight [kg]	4.8
Dynamic load capacity C50 [N]	175000.0
Note: dynamic load capacity C50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic load capacity C100 [N]	139000.0
Note: dynamic load capacity C100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static load capacity C0 [N]	245000.0
Dynamic torsional moment load capacity Mt50 [Nm]	5560.0
Note: Dynamic torsional moment load capacity Mt50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic torsional moment load capacity Mt100 [Nm]	4410.0
Note: Dynamic torsional moment load capacity Mt100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static torsional moment load capacity Mt0 [Nm]	7780
Dynamic longitudinal moment load capacity ML50 [Nm]	4990.0
Note: Dynamic longitudinal moment load capacity ML50	Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1.
Dynamic longitudinal moment load capacity ML100 [Nm]	3960.0
Note: Dynamic longitudinal moment load capacity ML100	Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1.
Static longitudinal moment load capacity ML0 [Nm]	6990

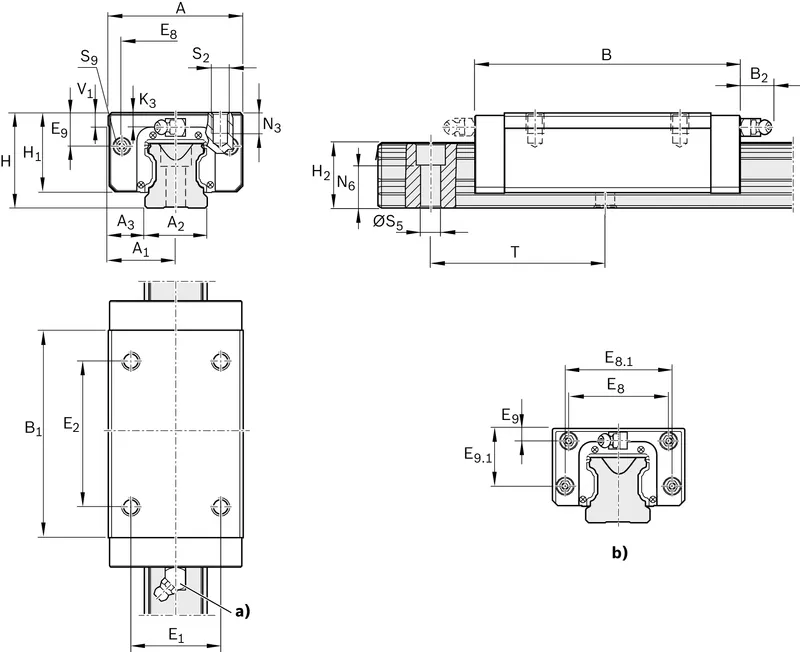

Pitch T guide rail [mm]	120
Dimension A (profiled rail systems) [mm]	100
Dimension A1 (profiled rail systems) [mm]	50
Dimension A2 (profiled rail systems) [mm]	53
Dimension A3 (profiled rail systems) [mm]	23.5
Dimension B (profiled rail systems) [mm]	199
Dimension B tolerance (profiled rail systems) [mm]	+0.5
Dimension B1 [mm]	155.5
Dimension E1 [mm]	75
Dimension E2 (profiled rail systems) [mm]	95
Dimension E8 (profiled rail systems) [mm]	80
Dimension E9 (profiled rail systems) [mm]	22.3
Dimension H [mm]	70.0
Dimension H1 (profiled rail systems) [mm]	57
Dimension H2 with cover strip (profiled rail systems) [mm]	48.15
Dimension H2 without cover strip (profiled rail systems) [mm]	47.85
Dimension K3 (profiled rail systems) [mm]	9
Dimension N3 (profiled rail systems) [mm]	19
Dimension N6 (profiled rail systems) [mm]	29
Dimension N6 tolerance (profiled rail systems) [mm]	±0.5
Dimension S2 (profiled rail systems)	M12
Dimension S5 (profiled rail system) [mm]	16
Dimension S9	M5x8 mm
Dimension S9 thread diameter (profiled rail systems)	M5
Dimension S9 lead [mm]	8
Dimension T1 min [mm]	20
Dimension V1 [mm]	12
