BALL RUNNER BLOCK RESIST CR KWD-025-SNH-C0-H-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | High-precision ball runner block BSHP |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can R162129374 be shipped?
R162129374 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up R162129374 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for R162129374 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R162129374, subject to availability and destination.

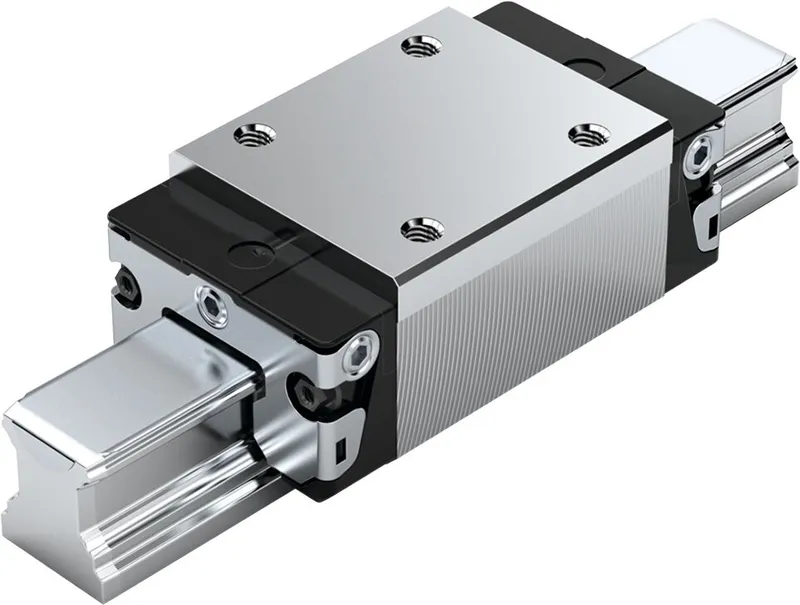

The ball runner block is highly precise and corrosion-resistant thanks to its Resist CR coating. Additionally, it is characterized by the following product features:<br>Size 25<br>Format SNH: Width = slimline, length = normal, height = high<br>Runner block body made of unalloyed steel CS, matte-silver, hard chrome plated<br>Preload class C0: Preload-free<br>Accuracy class H: High<br>Without ball chain<br>Preserved<br>Without initial lubrication<br>Without attachment element, left (front reference edge)<br>Without attachment element, right (front reference edge)<br>Straight lube connection loosely attached.<br>Runner block body in standard version<br>Overall length of the runner block = 86.2 mm<br>Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
Specifications
Specifications
| Nominal size [mm] | 25 |
| Format | SNH - slimline, normal, high |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Hard chrome plated |
| Preload class | C0 - Without preload (clearance) |
| Accuracy class | H - Highly accurate |
| Seal | SS - Standard seal |
| Ball chain | Without ball chain (standard) |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Width of runner block [mm] | 48.0 |
| Length of runner block [mm] | 86.2 |
| Height of runner block [mm] | 33.9 |
| Height runner block with guide rail [mm] | 40.0 |
| Lubrication | Preserved |
| Maximum acceleration rate amax [m/s²] | 500.0 |
| Note: Max. acceleration amax | If F<sub>comb</sub>◡> 2.8 • F<sub>pr</sub> : a<sub>max</sub> = 50 m/s<sup>2</sup> |
| Maximum permissible linear speed vmax [m/s] | 5.0 |
| Note: permissible ambient temperature (min. ... max.) | 100 °C admissible for short time. For operation at negative temperatures, please consult us. |
| Friction coefficient μ | 0.002 ... 0.003 |
| Note: friction coefficient μ | Without friction of seal |
| Weight [kg] | 0.6 |
| Dynamic load capacity C50 [N] | 36000.0 |
| Note: dynamic load capacity C50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic load capacity C100 [N] | 28600.0 |
| Note: dynamic load capacity C100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static load capacity C0 [N] | 35900.0 |
| Dynamic torsional moment load capacity Mt50 [Nm] | 520.0 |
| Note: Dynamic torsional moment load capacity Mt50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic torsional moment load capacity Mt100 [Nm] | 410.0 |
| Note: Dynamic torsional moment load capacity Mt100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static torsional moment load capacity Mt0 [Nm] | 510 |
| Dynamic longitudinal moment load capacity ML50 [Nm] | 370.0 |
| Note: Dynamic longitudinal moment load capacity ML50 | Dynamic load capacities and load moments are based on a travel of 50,000 m according to DIN ISO 14728-1. |
| Dynamic longitudinal moment load capacity ML100 [Nm] | 290.0 |
| Note: Dynamic longitudinal moment load capacity ML100 | Dynamic load capacities and load moments are based on a travel of 100,000 m according to DIN ISO 14728-1. |
| Static longitudinal moment load capacity ML0 [Nm] | 360 |

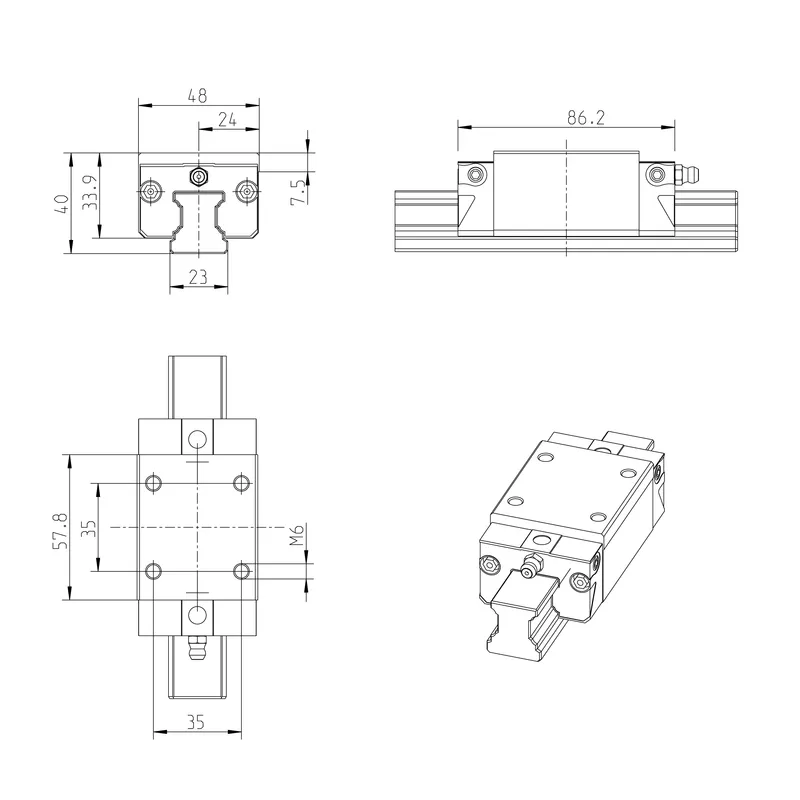

| Dimension A (profiled rail systems) [mm] | 48 |
| Dimension B (profiled rail systems) [mm] | 86.2 |
| Dimension H [mm] | 40.0 |
