High-precision ball runner block BSHP Parts

Bosch Rexroth R16231142Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth R162311423 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth R162311422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth R162311421 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth R162311420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-N-1

Bosch Rexroth R16231132Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

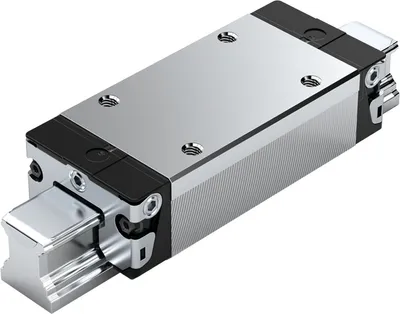

Bosch Rexroth R162311323 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth R162311322 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth R162311321 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth R162311320 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C1-H-1

Bosch Rexroth R162319422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1

Bosch Rexroth R162319420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-N-1

Bosch Rexroth R162319322 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-H-1

Bosch Rexroth R162319320 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SLS-C0-H-1

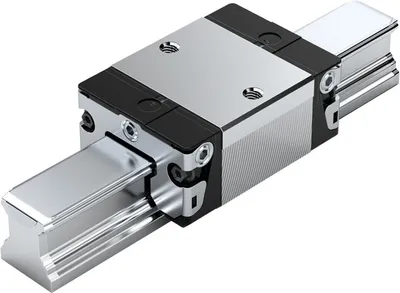

Bosch Rexroth R16661142Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth R166611423 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth R166611422 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth R166611421 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth R166611420 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-N-1

Bosch Rexroth R16661132Z – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth R166611323 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth R166611322 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth R166611321 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth R166611320 – BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-015-SKS-C1-H-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Weight [kg]	Dynamic load capacity C50 [N]	Dynamic load capacity C100 [N]	Static load capacity C0 [N]	Dynamic torsional moment load capacity Mt50 [Nm]
R16231142Z	0.2	16100.0	12800.0	18400.0	150.0
R162311423	0.2	14500.0	11500.0	15600.0	140.0
R162311422	0.2	14500.0	11500.0	15600.0	140.0
R162311421	0.2	16100.0	12800.0	18400.0	150.0
R162311420	0.2	16100.0	12800.0	18400.0	150.0
R16231132Z	0.2	16100.0	12800.0	18400.0	150.0
R162311323	0.2	14500.0	11500.0	15600.0	140.0
R162311322	0.2	14500.0	11500.0	15600.0	140.0
R162311321	0.2	16100.0	12800.0	18400.0	150.0
R162311320	0.23	16100.0	12800.0	18400.0	150.0
R162319422	0.2	14500.0	11500.0	15600.0	140.0
R162319420	0.2	16100.0	12800.0	18400.0	150.0
R162319322	0.2	14500.0	11500.0	15600.0	140.0
R162319320	0.2	16100.0	12800.0	18400.0	150.0
R16661142Z	0.1	8470.0	6720.0	7340.0	82.0
R166611423	0.1	7600.0	6030.0	6230.0	73.0
R166611422	0.1	7600.0	6030.0	6230.0	73.0
R166611421	0.1	8470.0	6720.0	7340.0	82.0
R166611420	0.14	8470.0	6720.0	7340.0	82.0
R16661132Z	0.1	8470.0	6720.0	7340.0	82.0
R166611323	0.1	7600.0	6030.0	6230.0	73.0
R166611322	0.1	7600.0	6030.0	6230.0	73.0
R166611321	0.1	8470.0	6720.0	7340.0	82.0
R166611320	0.12	8470.0	6720.0	7340.0	82.0

Common to all listed parts

Version	Ball rail system
Nominal size [mm]	15
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	34.0
Height of runner block [mm]	19.9
Height runner block with guide rail [mm]	24.0
