High-precision ball runner block BSHP Parts

Bosch Rexroth R162422820 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-X-1

Bosch Rexroth R16242222Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth R16242222Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth R162422222 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth R162422220 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-P-1

Bosch Rexroth R162422420 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-N-1

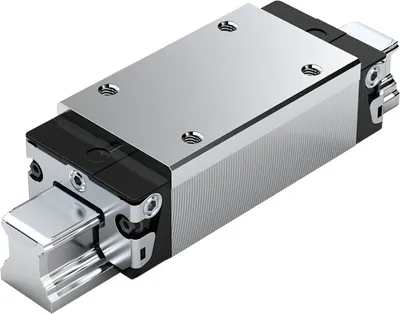

Bosch Rexroth R16242232Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth R16242232Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth R162422322 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth R162422320 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C2-H-1

Bosch Rexroth R16242182Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R16242182Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R162421823 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R162421822 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R162421821 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R162421820 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-X-1

Bosch Rexroth R16242122Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth R16242122Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth R162421222 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth R162421220 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-P-1

Bosch Rexroth R16242142Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth R16242142Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth R162421423 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth R162421422 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLH-C1-N-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Dynamic load capacity C50 [N]
R162422820	C2 - Medium preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	47000.0
R16242222Z	C2 - Medium preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	47000.0
R16242222Y	C2 - Medium preload	P - Precise	DS - Double-lip seal	With ball chain	43800.0
R162422222	C2 - Medium preload	P - Precise	SS - Standard seal	With ball chain	43800.0
R162422220	C2 - Medium preload	P - Precise	SS - Standard seal	Without ball chain (standard)	47000.0
R162422420	C2 - Medium preload	N - Normal	SS - Standard seal	Without ball chain (standard)	47000.0
R16242232Z	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	47000.0
R16242232Y	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	With ball chain	43800.0
R162422322	C2 - Medium preload	H - Highly accurate	SS - Standard seal	With ball chain	43800.0
R162422320	C2 - Medium preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	47000.0
R16242182Z	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	Without ball chain (standard)	47000.0
R16242182Y	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	With ball chain	43800.0
R162421823	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	With ball chain	43800.0
R162421822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	43800.0
R162421821	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	Without ball chain (standard)	47000.0
R162421820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	47000.0
R16242122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	47000.0
R16242122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	43800.0
R162421222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	43800.0
R162421220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	47000.0
R16242142Z	C1 - Low preload	N - Normal	DS - Double-lip seal	Without ball chain (standard)	47000.0
R16242142Y	C1 - Low preload	N - Normal	DS - Double-lip seal	With ball chain	43800.0
R162421423	C1 - Low preload	N - Normal	LS - Low-friction seal	With ball chain	43800.0
R162421422	C1 - Low preload	N - Normal	SS - Standard seal	With ball chain	43800.0

Common to all listed parts

Nominal size [mm]	25
Format	SLH - slimline, long, high
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	48.0
Length of runner block [mm]	107.9
Height of runner block [mm]	33.9
