High-precision ball runner block BSHP Parts

Bosch Rexroth R162323820 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C3-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C3-X-1

Bosch Rexroth R16232282Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth R16232282Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth R162322822 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth R162322820 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-X-1

Bosch Rexroth R16232222Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth R16232222Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth R162322222 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth R162322220 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-P-1

Bosch Rexroth R162322420 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-N-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-N-1

Bosch Rexroth R16232232Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth R16232232Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth R162322322 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth R162322320 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C2-H-1

Bosch Rexroth R16232182Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R16232182Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R162321823 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R162321822 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R162321821 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R162321820 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-X-1

Bosch Rexroth R16232122Z – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth R16232122Y – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

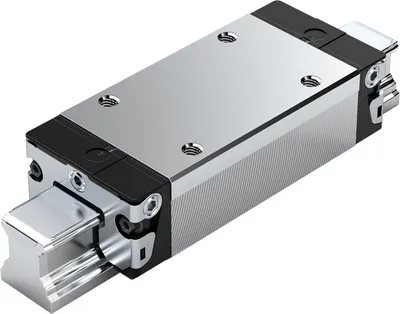

Bosch Rexroth R162321222 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth R162321220 – BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Bosch Rexroth

BALL RUNNER BLOCK CARBON STEEL KWD-025-SLS-C1-P-1

Compare High-precision ball runner block BSHP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Preload class	Accuracy class	Seal	Ball chain	Weight [kg]
R162323820	C3 - High preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	0.65
R16232282Z	C2 - Medium preload	XP - Extra precise	DS - Double-lip seal	Without ball chain (standard)	0.65
R16232282Y	C2 - Medium preload	XP - Extra precise	DS - Double-lip seal	With ball chain	0.65
R162322822	C2 - Medium preload	XP - Extra precise	SS - Standard seal	With ball chain	0.65
R162322820	C2 - Medium preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	0.65
R16232222Z	C2 - Medium preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	0.65
R16232222Y	C2 - Medium preload	P - Precise	DS - Double-lip seal	With ball chain	0.65
R162322222	C2 - Medium preload	P - Precise	SS - Standard seal	With ball chain	0.65
R162322220	C2 - Medium preload	P - Precise	SS - Standard seal	Without ball chain (standard)	0.65
R162322420	C2 - Medium preload	N - Normal	SS - Standard seal	Without ball chain (standard)	0.65
R16232232Z	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	Without ball chain (standard)	0.65
R16232232Y	C2 - Medium preload	H - Highly accurate	DS - Double-lip seal	With ball chain	0.65
R162322322	C2 - Medium preload	H - Highly accurate	SS - Standard seal	With ball chain	0.65
R162322320	C2 - Medium preload	H - Highly accurate	SS - Standard seal	Without ball chain (standard)	0.7
R16232182Z	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	Without ball chain (standard)	0.65
R16232182Y	C1 - Low preload	XP - Extra precise	DS - Double-lip seal	With ball chain	0.65
R162321823	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	With ball chain	0.65
R162321822	C1 - Low preload	XP - Extra precise	SS - Standard seal	With ball chain	0.65
R162321821	C1 - Low preload	XP - Extra precise	LS - Low-friction seal	Without ball chain (standard)	0.65
R162321820	C1 - Low preload	XP - Extra precise	SS - Standard seal	Without ball chain (standard)	0.65
R16232122Z	C1 - Low preload	P - Precise	DS - Double-lip seal	Without ball chain (standard)	0.65
R16232122Y	C1 - Low preload	P - Precise	DS - Double-lip seal	With ball chain	0.65
R162321222	C1 - Low preload	P - Precise	SS - Standard seal	With ball chain	0.65
R162321220	C1 - Low preload	P - Precise	SS - Standard seal	Without ball chain (standard)	0.65

Common to all listed parts

Nominal size [mm]	25
Format	SLS - slimline, long, standard height
Model	High-precision ball runner block
Material (profiled rail systems)	Carbon steel
Self-aligning for compensation of misalignments	Without self-alignment
Width of runner block [mm]	48.0
Length of runner block [mm]	107.9
Height of runner block [mm]	29.9
