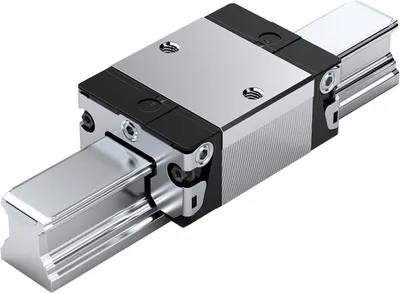

High-precision ball runner block BSHP Parts
Compare High-precision ball runner block BSHP
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Accuracy class | Dynamic load capacity C50 [N] | Dynamic load capacity C100 [N] | Static load capacity C0 [N] | Dynamic torsional moment load capacity Mt50 [Nm] |
|---|---|---|---|---|---|
| R166629423 | N - Normal | 23300.0 | 18500.0 | 19100.0 | 330.0 |
| R166629422 | N - Normal | 23300.0 | 18500.0 | 19100.0 | 330.0 |
| R166629421 | N - Normal | 24900.0 | 19800.0 | 21200.0 | 350.0 |
| R166629420 | N - Normal | 24900.0 | 19800.0 | 21200.0 | 350.0 |
| R166629323 | H - Highly accurate | 23300.0 | 18500.0 | 19100.0 | 330.0 |
| R166629322 | H - Highly accurate | 23300.0 | 18500.0 | 19100.0 | 330.0 |
| R166629321 | H - Highly accurate | 24900.0 | 19800.0 | 21200.0 | 350.0 |
| R166629320 | H - Highly accurate | 24900.0 | 19800.0 | 21200.0 | 350.0 |
| R16512382Z | XP - Extra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512382Y | XP - Extra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123822 | XP - Extra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123820 | XP - Extra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512392Z | UP - Ultra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512392Y | UP - Ultra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123922 | UP - Ultra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123920 | UP - Ultra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512312Z | SP - Super precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512312Y | SP - Super precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123122 | SP - Super precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165123120 | SP - Super precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512282Z | XP - Extra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
| R16512282Y | XP - Extra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165122822 | XP - Extra precise | 33600.0 | 26700.0 | 32300.0 | 480.0 |
| R165122820 | XP - Extra precise | 36000.0 | 28600.0 | 35900.0 | 520.0 |
Common to all listed parts
| Version | Ball rail system |
| Nominal size [mm] | 25 |
| Model | High-precision ball runner block |
| Material (profiled rail systems) | Carbon steel |
| Self-aligning for compensation of misalignments | Without self-alignment |
| Height of runner block [mm] | 29.9 |
| Height runner block with guide rail [mm] | 36.0 |
| Lubrication | Pre-lubricated, preserved |
