Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Operating pressure, max. [bar] | Max. flow [l/min] | Spool symbol | Nominal flow [l/min] | Weight [kg] |
|---|---|---|---|---|---|
| R901538130 | 270.0 | 1000.0 | Symbol W | 500.0 | 19.5 |
| R901554712 | 270.0 | 1000.0 | Symbol V | 500.0 | 19.5 |
| R901527733 | 270.0 | 1000.0 | Symbol V | 500.0 | 19.5 |
| R901557290 | 270.0 | 1000.0 | Symbol V | 500.0 | 19.5 |
| R901555480 | 270.0 | 1000.0 | Symbol V | 500.0 | 19.5 |
| R901547592 | 270.0 | 1000.0 | Symbol V1 | 500.0 | 18.65 |
| R901550677 | 270.0 | 1000.0 | Symbol V1 | 500.0 | 19.5 |
| R901484473 | 270.0 | 1000.0 | Symbol V1 | 500.0 | 20.19 |
| R901545046 | 270.0 | 1000.0 | Symbol V1 | 500.0 | 19.5 |
| R901525000 | 270.0 | 1000.0 | Symbol E | 500.0 | 19.5 |
| R901553363 | 350.0 | 870.0 | Symbol W8 | 350.0 | 17.5 |
| R901571665 | 350.0 | 870.0 | Symbol W8 | 350.0 | 9.95 |
| R901579894 | 350.0 | 870.0 | Symbol W6 | 350.0 | 25.24 |
| R901562096 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901579722 | 350.0 | 870.0 | Symbol V | 220.0 | 16.94 |
| R901565014 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901528161 | 350.0 | 870.0 | Symbol V | 350.0 | 17 |
| R901539232 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901508476 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |

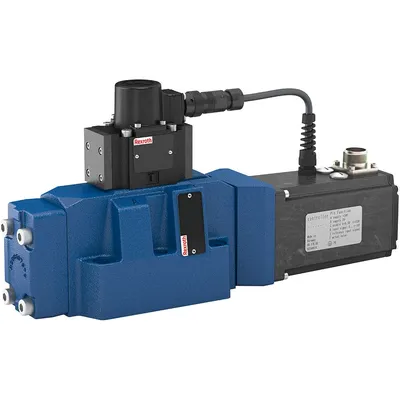

| R901484472 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901507461 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901568350 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901569729 | 350.0 | 870.0 | Symbol V | 350.0 | 17.5 |
| R901517859 | 350.0 | 870.0 | Symbol V | 220.0 | 17.5 |
Common to all listed parts
| Connection diagram | ISO 4401-08-08-0-05 |
| Product family | 4WRDE |
| Type of connection | Subplate mounting |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
