Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product family | Spool symbol | Nominal flow [l/min] | Supply voltage | Weight [kg] |
|---|---|---|---|---|---|
| R901289129 | 4WRE(E)6,10 | Symbol E | 75.0 | 24 VDC | 6.52 |

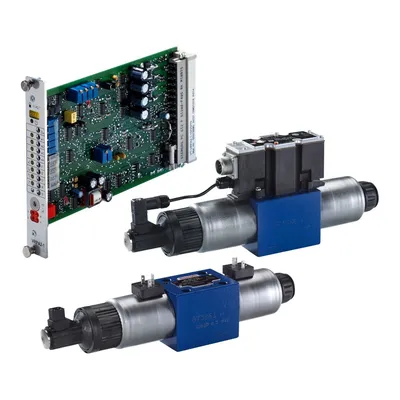

| R900927230 | 4WRE(E)6,10 | Symbol E | 75.0 | 24 VDC | 6.26 |
| R901572060 | 4WREE | Symbol E | 50.0 | 24 VDC | 7.3 |
| R901572019 | 4WREE | Symbol E | 50.0 | 24 VDC | 7.3 |
| R901582571 | 4WREE | Symbol E | 50.0 | 26 VDC | 7.5 |
| R901581290 | 4WREE | Symbol E | 50.0 | 24 VDC | 7.3 |
| R900943094 | 4WRE(E)6,10 | Symbol E | 50.0 | 24 VDC | 6.24 |
| R900927231 | 4WRE(E)6,10 | Symbol E | 50.0 | 24 VDC | 6.26 |
| R901568909 | 4WREE | Symbol E3 | 75.0 | 24 VDC | 7.3 |
| R901582132 | 4WREE | Symbol E | 25.0 | 24 VDC | 7.5 |
| R901556081 | 4WREE | Symbol E | 25.0 | 24 VDC | 7 |
| R901577532 | 4WREE | Symbol E | 25.0 | 24 VDC | 7.3 |
| R901582131 | 4WREE | Symbol E | 25.0 | 24 VDC | 7.3 |
| R900956574 | 4WRE(E)6,10 | Symbol E | 25.0 | 24 VDC | 6.22 |
| R900933073 | 4WRE(E)6,10 | Symbol E | 25.0 | 24 VDC | 6.24 |
| R901577883 | 4WREE | Symbol E1 | 75.0 | 24 VDC | 7.3 |
| R901572047 | 4WREE | Symbol E1 | 75.0 | 24 VDC | 7.4 |
| R901582570 | 4WREE | Symbol E1 | 75.0 | 25 VDC | 7.3 |

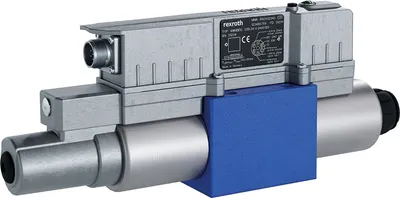

| R901582130 | 4WREE | Symbol E1 | 75.0 | 24 VDC | 7.28 |
| R900970089 | 4WRE(E)6,10 | Symbol E1 | 75.0 | 24 VDC | 6.26 |
| R900927232 | 4WRE(E)6,10 | Symbol E1 | 75.0 | 24 VDC | 6.24 |
| R901582129 | 4WREE | Symbol E1 | 50.0 | 24 VDC | 7.3 |
| R901572057 | 4WREE | Symbol E1 | 50.0 | 24 VDC | 7.3 |
| R901576158 | 4WREE | Symbol E1 | 50.0 | 24 VDC | 7.4 |
Common to all listed parts
| Connection diagram | ISO 4401-05-04-0-05 |
| Type of connection | Subplate mounting |
| Size | 10 |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Electrical connector | Connector, 7-pole (6 + PE) |
