Proportional directional valves Parts
Compare Proportional directional valves
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Connection diagram | Max. flow [l/min] | Spool symbol | Nominal flow [l/min] | Weight [kg] |
|---|---|---|---|---|---|
| R901564848 | ISO 4401-08-08-0-05 | 870.0 | Symbol E | 220.0 | 17.5 |

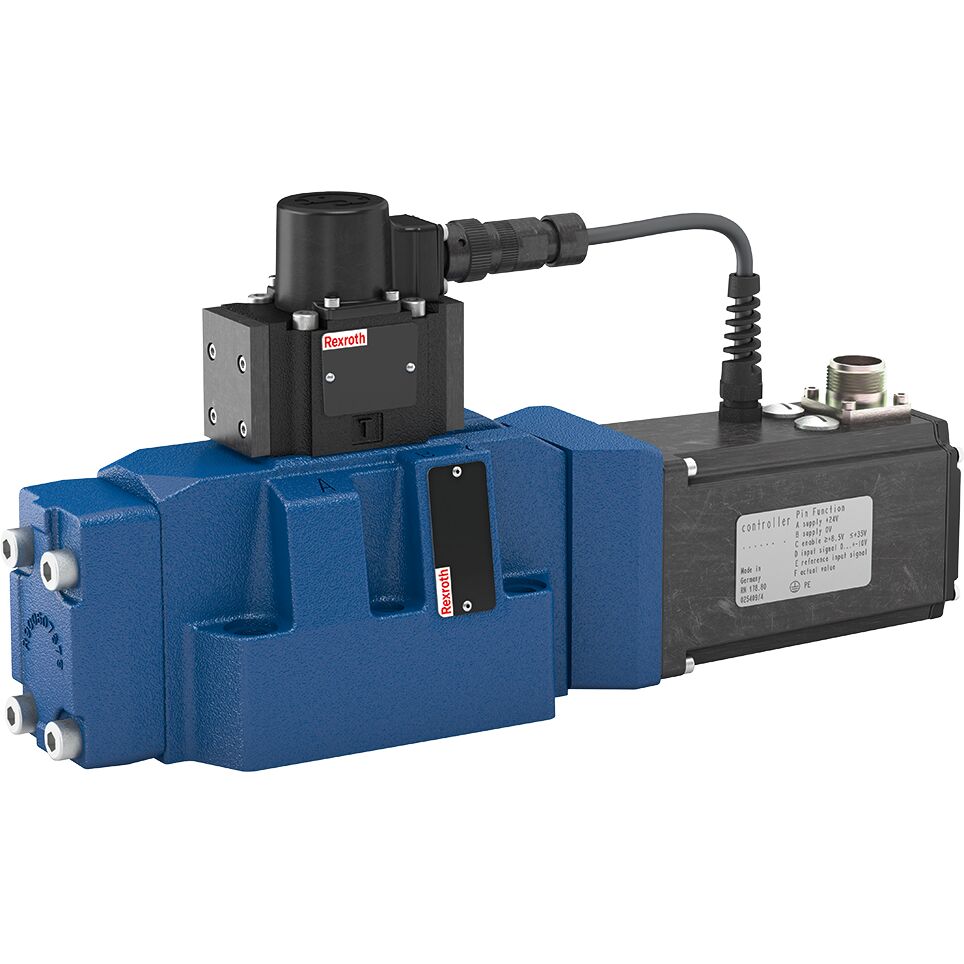

| R901581764 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 220.0 | 10 |
| R901508299 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 220.0 | 10.5 |
| R901529897 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 220.0 | 10.5 |
| R901489102 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 150.0 | 10.5 |
| R901502770 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 150.0 | 10.08 |
| R901528797 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 150.0 | 10.5 |
| R901515167 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 150.0 | 10.12 |
| R901545039 | ISO 4401-07-07-0-05 | 460.0 | Symbol W8 | 150.0 | 10.5 |
| R901499908 | ISO 4401-07-07-0-05 | 460.0 | Symbol W6 | 220.0 | 10.5 |
| R901499907 | ISO 4401-07-07-0-05 | 460.0 | Symbol W6 | 150.0 | 10.5 |
| R901499204 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
| R901470692 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
| R901469193 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 150.0 | 10.5 |
| R901572424 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 14.04 |
| R901572426 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 150.0 | 14.04 |
| R901495316 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 150.0 | 10 |
| R901454653 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 150.0 | 10.5 |
| R901530209 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.36 |
| R901537033 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
| R901456262 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
| R901581763 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 11 |
| R901454652 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
| R901540339 | ISO 4401-07-07-0-05 | 460.0 | Symbol V | 220.0 | 10.5 |
Common to all listed parts
| Product family | 4WRDE |
| Operating pressure, max. [bar] | 350.0 |
| Type of connection | Subplate mounting |
| Type of actuation | Electrical with on-board electronics |
| Number of ports | 4 |
| Number of switching positions | 3 |
| Supply voltage | 24 VDC |
| Electrical connector | Connector, 7-pole (6 + PE) |
