Proportional directional valves Parts

Bosch Rexroth

R901547690

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24K31/A1D3V

Bosch Rexroth

R901426437

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24ETK31/F1D3M

Bosch Rexroth

R901524502

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24ETK31/A1D3V

Bosch Rexroth

R901432624

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901479824

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24EK31/F1D3M

Bosch Rexroth

R901432358

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24EK31/A1D3M

Bosch Rexroth

R901561747

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W000L-3X/6EG24K31/A1M-909

Bosch Rexroth

R901499810

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R3-220L-3X/6EG24K31/A1D3M

Bosch Rexroth

R901561073

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R3-220L-3X/6EG24ETK31/F1D3V

Bosch Rexroth

R901542028

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R3-220L-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901420831

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R3-150L-3X/6EG24ETK31/F1D3V

Bosch Rexroth

R901482271

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R3-150L-3X/6EG24ETK31/A1D3V

Bosch Rexroth

R901565097

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16R200P-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901485363

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220P-3X/6EG24EK31/F1D3M

Bosch Rexroth

R901384482

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220P-3X/6EG24EK31/A1D3V

Bosch Rexroth

R901383949

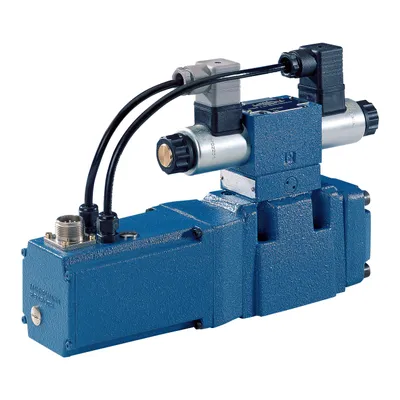

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220P-3X/6EG24EK31/A1D3M

Bosch Rexroth

R901499046

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24TK31/F1D3M

Bosch Rexroth

R901380645

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24K31/F1D3V

Bosch Rexroth

R901536524

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24K31/A1D3M

Bosch Rexroth

R901484880

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901496596

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24EK31/F1D3M

Bosch Rexroth

R901575154

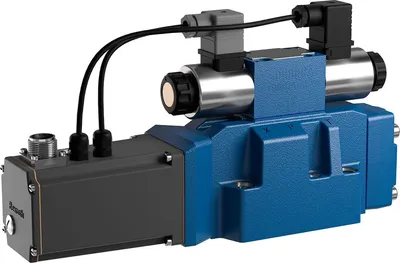

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24EK31/A1M-909

Bosch Rexroth

R901565085

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E220L-3X/6EG24EK31/A1D3M

Bosch Rexroth

R900727361

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16E200L-3X/6EG24EK31/A1D3M

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Operating pressure, max. [bar]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R901547690	350.0	Symbol W6	150.0	Analog, command value ±10 V	10.98
R901426437	350.0	Symbol W6	150.0	Analog, command value 4…20 mA	11.26
R901524502	350.0	Symbol W6	150.0	Analog, command value ±10 V	12
R901432624	350.0	Symbol W6	150.0	Analog, command value ±10 V	12.96
R901479824	350.0	Symbol W6	150.0	Analog, command value 4…20 mA	12.05
R901432358	350.0	Symbol W6	150.0	Analog, command value ±10 V	12.05
R901561747	250.0	Symbol W	0.0	Analog, command value ±10 V	10.98
R901499810	350.0	Symbol R3	220.0	Analog, command value ±10 V	11.3
R901561073	350.0	Symbol R3	220.0	Analog, command value 4…20 mA	11.1
R901542028	350.0	Symbol R3	220.0	Analog, command value ±10 V	10.98
R901420831	350.0	Symbol R3	150.0	Analog, command value 4…20 mA	11.6
R901482271	350.0	Symbol R3	150.0	Analog, command value ±10 V	12.05
R901565097	350.0	Symbol R	200.0	Analog, command value ±10 V	11.98
R901485363	350.0	Symbol E	220.0	Analog, command value 4…20 mA	19.35
R901384482	350.0	Symbol E	220.0	Analog, command value ±10 V	11.28
R901383949	350.0	Symbol E	220.0	Analog, command value ±10 V	11.28
R901499046	350.0	Symbol E	220.0	Analog, command value 4…20 mA	11.28
R901380645	350.0	Symbol E	220.0	Analog, command value 4…20 mA	11.28
R901536524	350.0	Symbol E	220.0	Analog, command value ±10 V	10.98
R901484880	350.0	Symbol E	220.0	Analog, command value ±10 V	11.3
R901496596	350.0	Symbol E	220.0	Analog, command value 4…20 mA	10.98
R901575154	250.0	Symbol E	220.0	Analog, command value ±10 V	10.54
R901565085	350.0	Symbol E	220.0	Analog, command value ±10 V	11.28
R900727361	350.0	Symbol E	200.0	Analog, command value ±10 V	11.28

Common to all listed parts

Connection diagram	ISO 4401-07-07-0-05
Max. flow [l/min]	460.0
Type of connection	Subplate mounting
Size	16
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
