Proportional directional valves Parts

Bosch Rexroth

R901563989

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24K31/F1D3V

Bosch Rexroth

R901431602

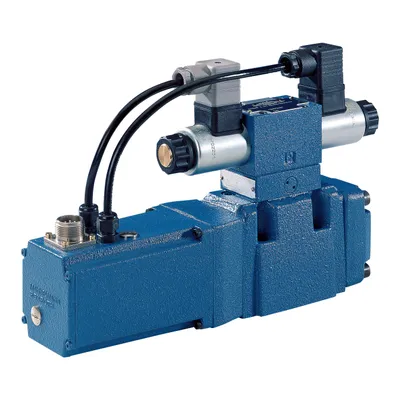

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24K31/F1D3M

Bosch Rexroth

R901448105

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24ETK31/F1D3V

Bosch Rexroth

R901396936

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24ETK31/F1D3M

Bosch Rexroth

R901524803

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24ETK31/A1D3V

Bosch Rexroth

R901524801

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901504857

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24EK31/F1D3M

Bosch Rexroth

R901484768

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W8-150L-3X/6EG24EK31/A1D3M

Bosch Rexroth

R901575160

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220P-3X/6EG24EK31/A1M-909

Bosch Rexroth

R901524787

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24K31/F1D3V

Bosch Rexroth

R901484772

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24K31/F1D3M

Bosch Rexroth

R901575158

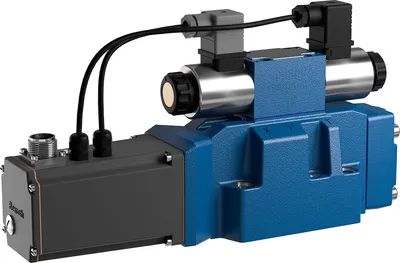

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24K31/A1M-909

Bosch Rexroth

R901378319

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24K31/A1D3M

Bosch Rexroth

R901527721

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24ETK31/F1D3V

Bosch Rexroth

R901527508

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24ETK31/F1D3M

Bosch Rexroth

R901386113

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901521925

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24EK31/F1D3M

Bosch Rexroth

R901551915

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24EK31/A1M-909

Bosch Rexroth

R901530520

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-220L-3X/6EG24EK31/A1D3M

Bosch Rexroth

R901576342

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150P-3X/6EG24ETK31/F1D3V

Bosch Rexroth

R901524505

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150P-3X/6EG24ETK31/A1D3V

Bosch Rexroth

R901524504

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150P-3X/6EG24ETK31/A1D3M

Bosch Rexroth

R901492716

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24TK31/A1D3M

Bosch Rexroth

R901548123

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W6-150L-3X/6EG24K31/F1D3M

Compare Proportional directional valves

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Operating pressure, max. [bar]	Spool symbol	Nominal flow [l/min]	Connectivity	Weight [kg]
R901563989	350.0	Symbol W8	150.0	Analog, command value 4…20 mA	11.3
R901431602	350.0	Symbol W8	150.0	Analog, command value 4…20 mA	12.28
R901448105	350.0	Symbol W8	150.0	Analog, command value 4…20 mA	11.3
R901396936	350.0	Symbol W8	150.0	Analog, command value 4…20 mA	11.3
R901524803	350.0	Symbol W8	150.0	Analog, command value ±10 V	10.98
R901524801	350.0	Symbol W8	150.0	Analog, command value ±10 V	10.98
R901504857	350.0	Symbol W8	150.0	Analog, command value 4…20 mA	11.3
R901484768	350.0	Symbol W8	150.0	Analog, command value ±10 V	11.2
R901575160	250.0	Symbol W6	220.0	Analog, command value ±10 V	10.54
R901524787	350.0	Symbol W6	220.0	Analog, command value 4…20 mA	11
R901484772	350.0	Symbol W6	220.0	Analog, command value 4…20 mA	11.3
R901575158	250.0	Symbol W6	220.0	Analog, command value ±10 V	10.54
R901378319	350.0	Symbol W6	220.0	Analog, command value ±10 V	11.22
R901527721	350.0	Symbol W6	220.0	Analog, command value 4…20 mA	16.2
R901527508	350.0	Symbol W6	220.0	Analog, command value 4…20 mA	10.98
R901386113	350.0	Symbol W6	220.0	Analog, command value ±10 V	11.22
R901521925	350.0	Symbol W6	220.0	Analog, command value 4…20 mA	10.98
R901551915	250.0	Symbol W6	220.0	Analog, command value ±10 V	10.54
R901530520	350.0	Symbol W6	220.0	Analog, command value ±10 V	11.22
R901576342	350.0	Symbol W6	150.0	Analog, command value 4…20 mA	10.98
R901524505	350.0	Symbol W6	150.0	Analog, command value ±10 V	12
R901524504	350.0	Symbol W6	150.0	Analog, command value ±10 V	12
R901492716	350.0	Symbol W6	150.0	Analog, command value ±10 V	12.05
R901548123	350.0	Symbol W6	150.0	Analog, command value 4…20 mA	10.98

Common to all listed parts

Connection diagram	ISO 4401-07-07-0-05
Max. flow [l/min]	460.0
Type of connection	Subplate mounting
Size	16
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
