Bosch Rexroth R901561747

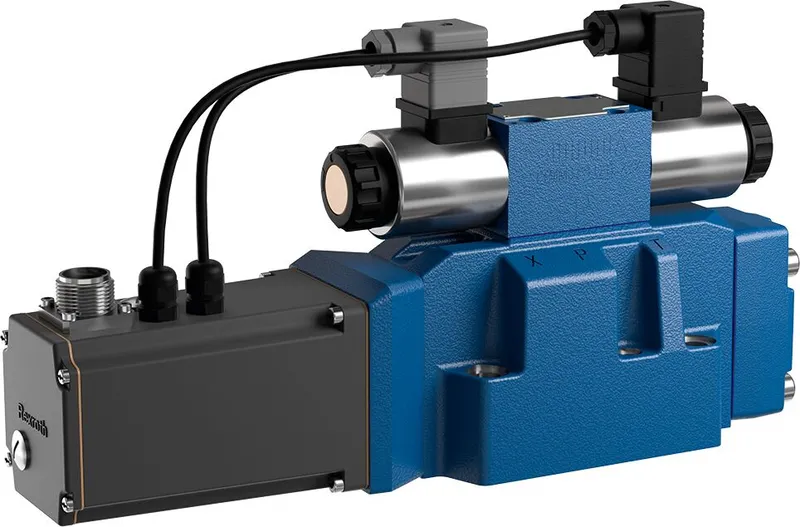

PROPORTIONAL DIRECTIONAL VALVE 4WRKE16W000L-3X/6EG24K31/A1M-909

MPN: R901561747
Category: Proportional directional valves

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R901561747?

Industrial hydraulic valve in a high performance range, reliable control of oil flow direction according to hydraulic symbol, high accuracy through internal piston position feedback

Spool valve

Pilot-operated

External pilot oil supply, external pilot oil return

Characteristic curve, linear

Specifications

Connection diagram	ISO 4401-07-07-0-05
Operating pressure, max. [bar]	250.0
Max. flow [l/min]	460.0
Spool symbol	Symbol W
Type of connection	Subplate mounting
Nominal flow [l/min]	0.0
Size	16
Type of actuation	Electrical with on-board electronics
Number of ports	4
Number of switching positions	3
Supply voltage	24 VDC
Electrical connector	Connector, 7-pole (6 + PE)
Electrical connection description	Connector 7-pole (6 + PE) according to EN 175201-804
Connectivity	Analog, command value ±10 V
Conformity	CE; RoHS
Hydraulic fluid	HFC; HL; HLP; HLPD; HVLP; HVLPD
Seals	NBR
Weight [kg]	10.98
