KR QUANTEC nano Parts
Compare KR QUANTEC nano
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Maximum payload | Rated payload | Maximum reach | Mounting position | A6 |
|---|---|---|---|---|---|
| 253457 | 181 kg | 120 kg | 2100 mm | Floor | 284 °/s |

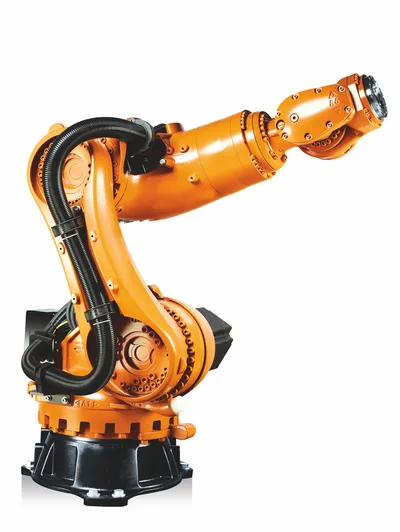

| 215032 | 224 kg | 160 kg | 1573 mm | Floor | 220 °/s |
| 294633 | 256 kg | 180 kg | 2100 mm | Floor | 219 °/s |

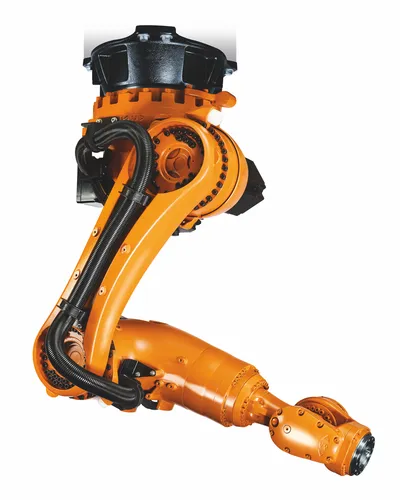

| 215752 | 197 kg | 120 kg | 1803 mm | Ceiling | 284 °/s |
| 215751 | 197 kg | 120 kg | 1803 mm | Floor | 284 °/s |
| 215719 | 224 kg | 160 kg | 1573 mm | Ceiling | 220 °/s |
Common to all listed parts
| Number of axes | 6 |
| Ambient temperature during operation | 10 °C to 55 °C (283 K to 328 K) |
| Ambient temperature during stor./transp. | -40 °C to 60 °C (233 K to 333 K) |
