Kuka 215032

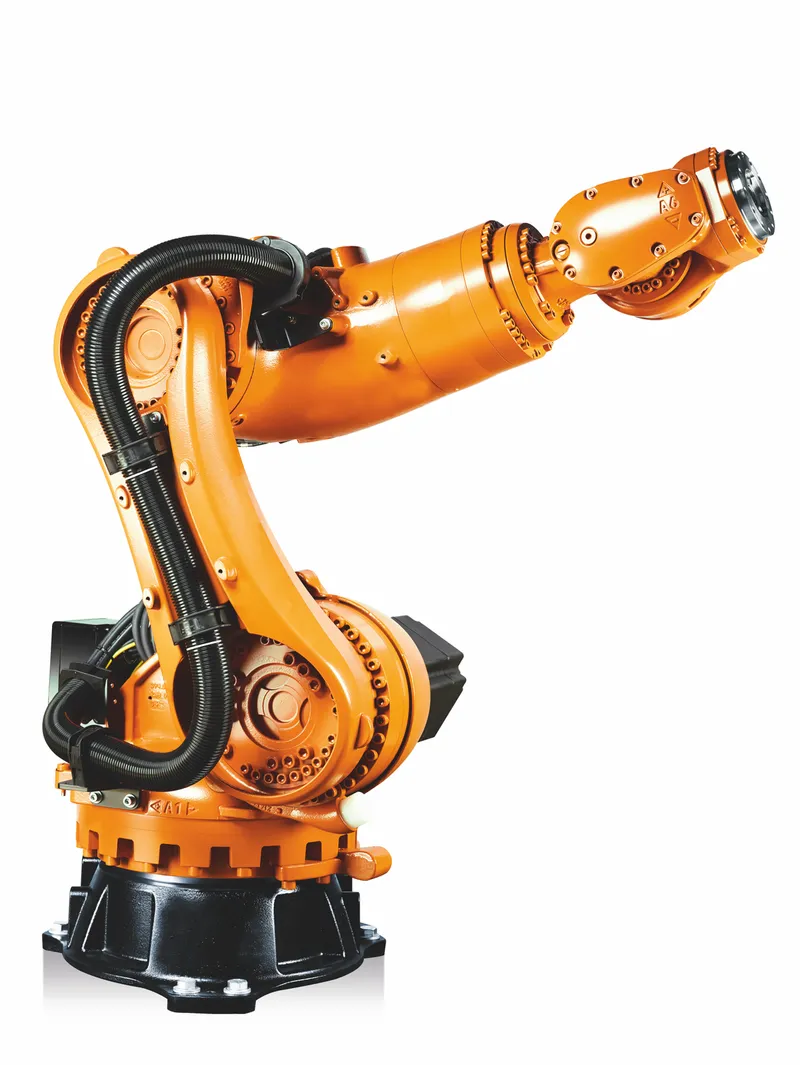

KR 160 R1570 nano

MPN: 215032
Category: KR QUANTEC nano

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 215032?

Kuka KR 160 R1570 nano, manufacturer part number 215032. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	224 kg
Rated payload	160 kg
Maximum reach	1573 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.06 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65
Prot. rating, in-line wrist (IEC 60529)	IP65
A1	123 °/s
A2	114 °/s
A3	86 °/s
A4	179 °/s
A5	172 °/s
A6	220 °/s

215032: frequently asked questions

When can 215032 be shipped?

215032 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 215032 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 215032 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 215032, subject to availability and destination.
