Kuka 253457

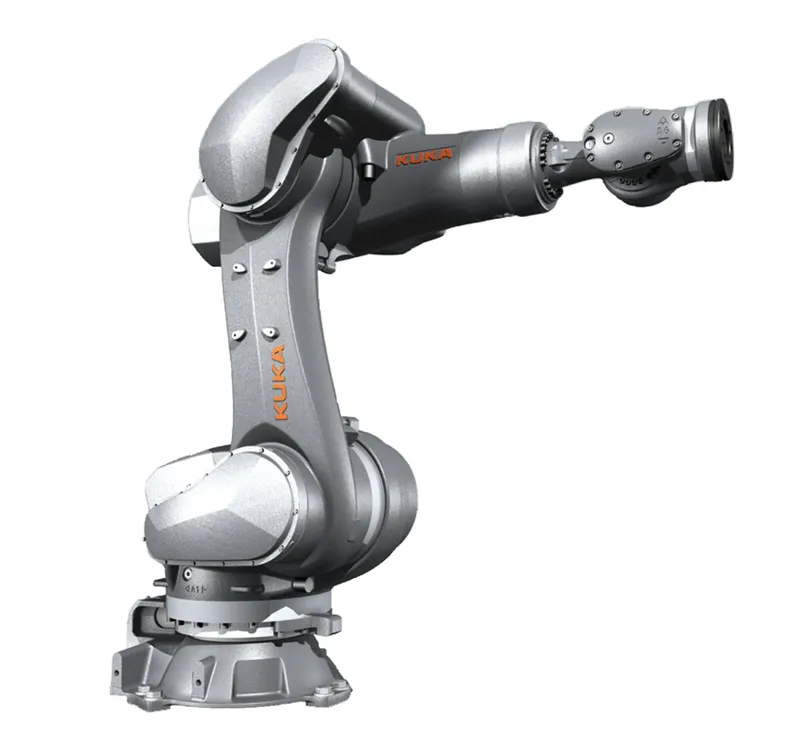

KR 120 R2100 nano F exclusive

MPN: 253457
Category: KR QUANTEC nano

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Kuka 253457?

Kuka KR 120 R2100 nano F exclusive, manufacturer part number 253457. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Maximum payload	181 kg
Rated payload	120 kg
Maximum reach	2100 mm
Mounting position	Floor
Pose repeatability (ISO 9283)	0.05 mm
Number of axes	6
Ambient temperature during operation	10 °C to 55 °C (283 K to 328 K)
Ambient temperature during stor./transp.	-40 °C to 60 °C (233 K to 333 K)
Protection rating (IEC 60529)	IP65 / IP67 / IP69
Prot. rating, in-line wrist (IEC 60529)	IP65 / IP67 / IP69
A1	136 °/s
A2	95 °/s
A3	120 °/s
A4	292 °/s
A5	258 °/s
A6	284 °/s
