Power Panel T80 Parts
Compare Power Panel T80
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Diagonal | Temperature – Storage | Temperature – Transport | Dimensions – Width | Dimensions – Height |
|---|---|---|---|---|---|

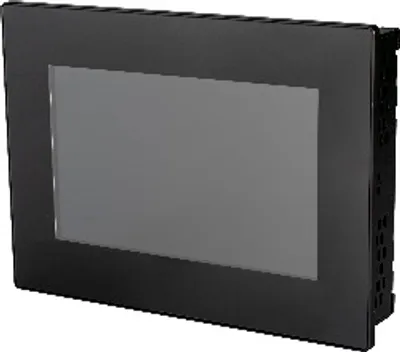

| 6PPT80.0702-10A | 7.0" | -20 to 80°C | -20 to 80°C | 209 mm | 153 mm |
| 6PPT80.0702-10B | 7.0" | -20 to 80°C | -20 to 80°C | 209 mm | 153 mm |
| 6PPT80.0702-16A | 7.0" | -20 to 80°C | -20 to 80°C | 209 mm | 153 mm |
| 6PPT80.0702-16B | 7.0" | -20 to 80 °C | -20 to 80 °C | 209 mm | 153 mm |
| 6PPT80.101E-10A | 10.1" | -20 to 80 °C | -20 to 80 °C | 279 mm | 191 mm |
| 6PPT80.101E-10B | 10.1" | -20 to 80 °C | -20 to 80 °C | 279 mm | 191 mm |
| 6PPT80.101E-16A | 10.1" | -20 to 80 °C | -20 to 80 °C | 279 mm | 191 mm |

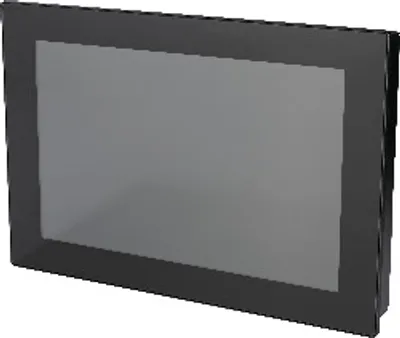

| 6PPT80.101E-16B | 10.1" | -20 to 80 °C | -20 to 80 °C | 279 mm | 191 mm |
| 6PPT80.121E-10A | 12.1" | -20 to 80 °C | -20 to 80 °C | 324 mm | 221.5 mm |

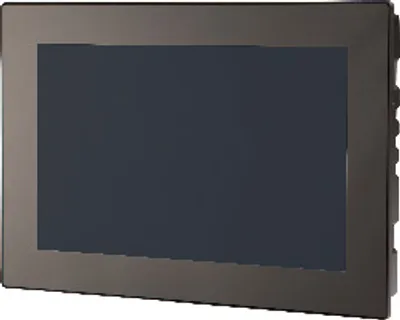

| 6PPT80.121E-10B | 12.1" | -20 to 80 °C | -20 to 80 °C | 324 mm | 221.5 mm |
| 6PPT80.121E-16A | 12.1" | -20 to 80 °C | -20 to 80 °C | 324 mm | 221.5 mm |
| 6PPT80.121E-16B | 12.1" | -20 to 80 °C | -20 to 80 °C | 324 mm | 221.5 mm |
| 6PPT80.156B-10A | 15.6" | -20 to 70 °C | -20 to 70 °C | 414 mm | 258.5 mm |
| 6PPT80.156B-10B | 15.6" | -20 to 70 °C | -20 to 70 °C | 414 mm | 258.5 mm |

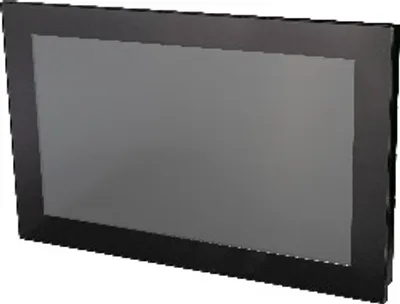

| 6PPT80.156B-16A | 15.6" | -20 to 70 °C | -20 to 70 °C | 414 mm | 258.5 mm |
| 6PPT80.156B-16B | 15.6" | -20 to 70°C | -20 to 70°C | 414 mm | 258.5 mm |
Common to all listed parts
| System requirements – Automation Studio | 4.7.1 or later |
| System requirements – Automation Runtime | 4.71 or later |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
