B&R 6PPT80.101E-16B
Power Panel T80, 10.1", glass front
- MPN
- 6PPT80.101E-16B
- Category
- Power Panel T80
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

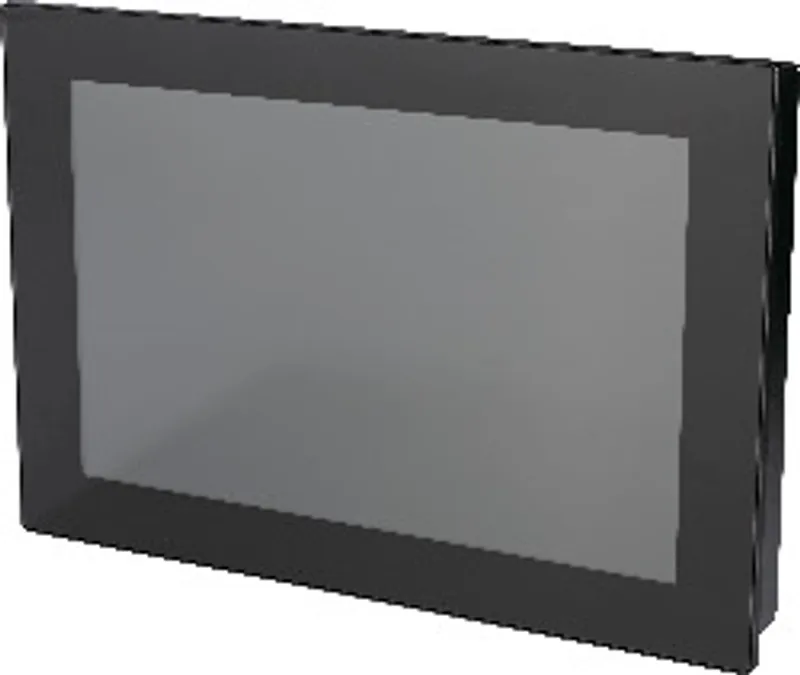

What is the B&R 6PPT80.101E-16B?
Power Panel T80, 10.1", glass front, 2x Gigabit Ethernet (integrated switch). CPU and memory: 1.3 GHz dual core (Atom E3930), 1 GB RAM, 512 MB onboard flash drive. Display and touch screen: 10.1", 1280 x 800 (WXGA) resolution, projected capacitive touch screen, multi-touch support, glass front with black frame, landscape and portrait format configurable with software. Interfaces: 2x Ethernet 10/100/1000 Mbit/s (integrated switch), 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.
Specifications
General information
| System requirements – Automation Studio | 4.7.1 or later |
| System requirements – Automation Runtime | 4.71 or later |
| Support – mapp View | Yes (note: Due to the power of the Power Panel, the following widget classes are fully supported: A, B, C.) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – ABS | Yes |
| Certifications – BV | EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck |
| LEDs | Ethernet (Link, Activity, Speed) |
| B&R ID code | 0xF9CB |
| Cooling | Passive |
| Power button | No |
| Reset button | No |
| Buzzer | Yes |
Controller
| Processor – Data code | 24 kB |
| Processor – Program code | 32 kB |
| Processor – Type | Atom E3930 |
| Processor – Clock frequency | 2x 1.3 GHz |
| Processor – L2 cache | 1 MB for 2 CPU cores |
| Operating system | PPT80 system |
| Real-time clock | No |
| Flash | 512 MB |
| Mode/Node switches | No |
| DRAM | 1 GB LP DDR4 RAM |
Display
| Viewing angles – Horizontal | Direction L / Direction R = Typ. 85° |
| Viewing angles – Vertical | Direction U / Direction D = Typ. 85° |
| Backlight – Type | LED |
| Backlight – Brightness | Typ. 500 cd/m² |
| Backlight – Half-brightness time | 50,000 h (note: At 25 °C ambient temperature. Reducing the brightness by 50% can typically increase the half-brightness time by approximately 50%.) |
| Touch screen – Type | Multi-touch |
| Touch screen – Technology | PCT (projected capacitive touch) |
| Touch screen – Surface | Glass, chemically hardened (6H) |
| Type | TFT color |
| Diagonal | 10.1" |
| Colors | 16.7 million (RGB, 8 bits per channel) |
| Resolution | WXGA, 1280 x 800 pixels |
| Contrast | Typ. 800:1 |
| Screen rotation | Yes |
Interfaces
| Interface – Physical layer | 10BASE-T / 100BASE-TX / 1000BASE-T |
| Interface – Half-duplex | Yes |
| Interface – Full-duplex | Yes |
| Interface – Autonegotiation | Yes |
| Interface – Auto-MDI/MDIX | Yes |
| Interface – Connection | ETH1 (IF1) and ETH2 (IF2) |
| Interface – Type | Ethernet |
| Interface – Variant | Shielded RJ45 (integrated 2-port switch) |
| Interface – Line length | Max. 100 m between 2 stations (segment length) |
| Interface – Max. transfer rate | 10/100/1000 Mbit/s |
| Interface IF3 – Type | USB 2.0 |
| Interface IF3 – Variant | Type A |
| Interface IF3 – Current-carrying capacity | 0.5 A |
| Interface IF4 – Type | USB 2.0 |
| Interface IF4 – Variant | Type A |
| Interface IF4 – Current-carrying capacity | 0.5 A |
Electrical properties
| Nominal voltage | 24 VDC (-25% / +30%), PELV |
| Power consumption | Max. 17 W (note: Power consumption including all interfaces.) |
| Fuse | 3 A slow-blow, internal (note: The internal fuse cannot be replaced by the user or reset.) |
| Reverse polarity protection | Yes |
| Electrical isolation | Ethernet (ETH1/IF1 and EHT2/IF2) to other interfaces, power supply and ground |
Operating conditions
| Permissible mounting orientationsDerating")."> – Standard mounting orientation | Vertical (note: Operation deviating from the permissible mounting orientations is permitted if an appropriate derating is observed (see section) |
| Permissible mounting orientationsDerating")."> – Inclination | ±25° (note: Operation deviating from the permissible mounting orientations is permitted if an appropriate derating is observed (see section) |
| Permissible mounting orientationsDerating")."> – Rotation | In 90° increments (portrait/landscape) (note: Operation deviating from the permissible mounting orientations is permitted if an appropriate derating is observed (see section) |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5 °C per 100 m |
| Degree of protection per EN 60529 | Rev. F0 and later: IP65 front; Up to Rev. E0: IP55 front; Back: IP20 |
| Degree of protection per UL 50 | Type 1 |
Ambient conditions
| Temperature – Operation | -20 to 60 °C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -20 to 80 °C |
| Temperature – Transport | -20 to 80 °C |
| Relative humidity | See temperature/humidity diagram |
Mechanical properties
| Front – Design | Black |
| Dimensions – Width | 279 mm |
| Dimensions – Height | 191 mm |
| Dimensions – Depth | 42.2 mm |
| Weight | 1.7 kg |
Accessories
Optional accessories (5)
| 0TB6102.2110-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm² |
| 6ACCRPP2.0001-000 | Other — Installation kit for Power Panel T-Series variants: 9x retaining clips with torque limiting, 1x 2-pin cage clamp terminal block, 1x 2-pin s… |
| 0TB6102.2010-01 | Terminal blocks — Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm² |
| 5MMUSB.4096-01 | USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB… |
| 5MMUSB.2048-01 | USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
Certificates (7)
- ABS Certificate of Product Design Assessment - Power Panel T-Series
- BV Type Approval Certificate - Power Panel T-Series
- DNV Type Approval Certificate - Power Panel T-Series
- Lloyds Register (X20 only)
- Lloyds Register T-Series
- UL61010-1 Certificate of Compliance C80, T80, PPC1200
- UL61010-1 Certificate of Compliance T80 Series
