B&R 6PPT80.156B-10A

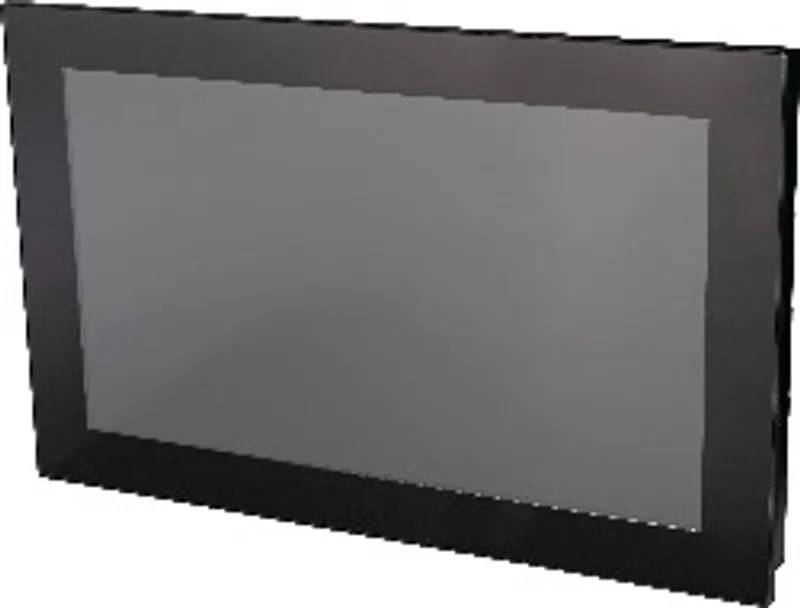

Power Panel T80, 15.6", glass front (anti-glare)

MPN: 6PPT80.156B-10A
Category: Power Panel T80

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 6PPT80.156B-10A?

Power Panel T80, 15.6", glass front (anti-glare), 1x Gigabit Ethernet. CPU and memory: 1.3 GHz dual core (Atom E3930), 1 GB RAM, 512 MB onboard flash drive. Display and touch screen: 15.6", 1366 x 768 (HD) resolution, projected capacitive touch screen, multi-touch support, anti-glare glass front with black frame, landscape and portrait format configurable with software. Interfaces: 1x Ethernet 10/100/1000 Mbit/s, 2x USB 2.0. Client software: Integrated service page, VNC client, embedded web browser.

Specifications

General information

System requirements – Automation Studio	4.7.1 or later
System requirements – Automation Runtime	4.71 or later
Support – mapp View	Yes (note: Due to the power of the Power Panel, the following widget classes are fully supported: A, B, C.)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: A (0.7 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – ABS	Yes
Certifications – BV	EC31B ; Temperature: 5 - 55°C; Vibration: 0.7 g; EMC: Bridge and open deck
LEDs	Ethernet (Link, Activity, Speed)
B&R ID code	0xF9D2
Cooling	Passive
Power button	No
Reset button	No
Buzzer	Yes

Controller

Processor – Data code	24 kB
Processor – Program code	32 kB
Processor – Type	Atom E3930
Processor – Clock frequency	2x 1.3 GHz
Processor – L2 cache	1 MB for 2 CPU cores
Operating system	PPT80 system
Real-time clock	No
Flash	512 MB
Mode/Node switches	No
DRAM	1 GB LP DDR4 RAM

Display

Viewing angles – Horizontal	Direction L / Direction R = Typ. 85°
Viewing angles – Vertical	Direction U / Direction D = Typ. 85°
Backlight – Type	LED
Backlight – Brightness	Typ. 400 cd/m²
Backlight – Half-brightness time	70,000 h (note: At 25 °C ambient temperature. Reducing the brightness by 50% can typically increase the half-brightness time by approximately 50%.)
Touch screen – Type	Multi-touch
Touch screen – Technology	PCT (projected capacitive touch)
Touch screen – Surface	Glass, chemically hardened (6H), anti-glare
Type	TFT color
Diagonal	15.6"
Colors	16.7 million (RGB, 8 bits per channel)
Resolution	HD, 1366 x 768 pixels
Contrast	Typ. 1000:1
Screen rotation	Yes

Interfaces

Interface – Physical layer	10BASE-T / 100BASE-TX / 1000BASE-T
Interface – Half-duplex	Yes
Interface – Full-duplex	Yes
Interface – Autonegotiation	Yes
Interface – Auto-MDI/MDIX	Yes
Interface – Connection	ETH1 (IF1)
Interface – Type	Ethernet
Interface – Variant	Shielded RJ45
Interface – Line length	Max. 100 m between 2 stations (segment length)
Interface – Max. transfer rate	10/100/1000 Mbit/s
Interface IF3 – Type	USB 2.0
Interface IF3 – Variant	Type A
Interface IF3 – Current-carrying capacity	0.5 A
Interface IF4 – Type	USB 2.0
Interface IF4 – Variant	Type A
Interface IF4 – Current-carrying capacity	0.5 A

Electrical properties

Nominal voltage	24 VDC (-25% / +30%), PELV
Power consumption	Max. 29 W (note: Power consumption including all interfaces.)
Fuse	3 A slow-blow, internal (note: The internal fuse cannot be replaced by the user or reset.)
Reverse polarity protection	Yes
Electrical isolation	Ethernet (ETH1/IF1) to other interfaces, power supply and ground

Operating conditions

Permissible mounting orientationsDerating")."> – Standard mounting orientation	Vertical (note: Operation deviating from the permissible mounting orientations is permitted if an appropriate derating is observed (see section)
Permissible mounting orientationsDerating")."> – Inclination	±25° (note: Operation deviating from the permissible mounting orientations is permitted if an appropriate derating is observed (see section)
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5 °C per 100 m
Degree of protection per EN 60529	Rev. F0 and later: IP65 front; Up to Rev. E0: IP55 front; Back: IP20
Degree of protection per UL 50	Type 1

Ambient conditions

Temperature – Operation	-20 to 60 °C
Temperature – Derating	See section "Derating".
Temperature – Storage	-20 to 70 °C
Temperature – Transport	-20 to 70 °C
Relative humidity	See temperature/humidity diagram

Mechanical properties

Front – Design	Black
Dimensions – Width	414 mm
Dimensions – Height	258.5 mm
Dimensions – Depth	43.7 mm
Weight	3.3 kg

Accessories

Optional accessories (5)

0TB6102.2110-01	Terminal blocks — Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm²
6ACCRPP2.0001-000	Other — Installation kit for Power Panel T-Series variants: 9x retaining clips with torque limiting, 1x 2-pin cage clamp terminal block, 1x 2-pin s…
0TB6102.2010-01	Terminal blocks — Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm²
5MMUSB.4096-01	USB accessories — 4 GB; USB 1.1, USB 2.0; High transfer rate; High data storage; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 4096 MB…
5MMUSB.2048-01	USB accessories — 2 GB; USB 1.1, USB 2.0; High transfer rate; High data retention; Ambient temperature during operation: 0 to 70°C USB 2.0 flash drive 2048 M…
