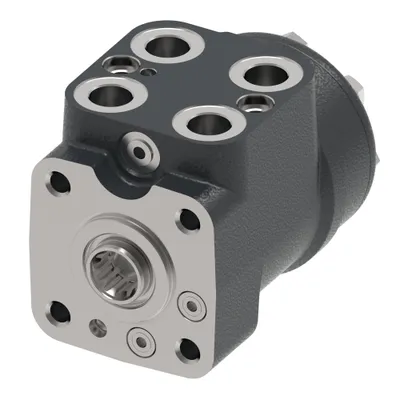

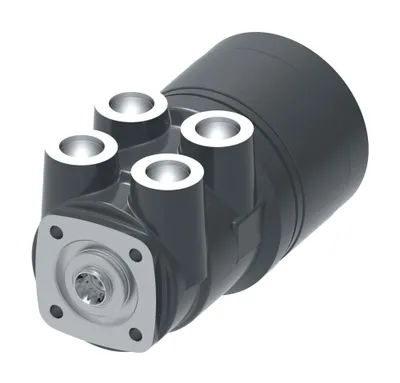

Hydraulic steering units Parts
























Compare Hydraulic steering units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Cylinder relief valve setting | Displacement | Neutral circuit | Return pressure rating |
|---|---|---|---|---|
| 252-1017-004 | 207 bar [3000] PSI | 983 cm3/r [60.0 in3/r] | Closed center | 10 bar [145 lbf/in2] MAXIMUM |
| 252-1004-004 | None | 983 cm3/r [60.0 in3/r] | Closed center | 10 bar [145 lbf/in2] MAXIMUM |
| 251-1020-004 | 224 bar [3250] PSI | 787 cm3/r [48.0 in3/r] | Open center | 21 bar [305 lbf/in2] MAXIMUM |
| 251-1005-004 | None | 1230 cm3/r [75.0 in3/r] | Open center | 10 bar [145 lbf/in2] MAXIMUM |
Common to all listed parts
| Additional ports | None |
| Design code | 5 |
| Flow amplification | NONE |
| Fluid type | REFERENCE Danfoss TECHNICAL BULLETIN 3-401 |
| Identification | DANFOSS NUMBER ON NAMEPLATE |
| Inlet or LS relief setting | None |
| Inlet pressure rating | 241 bar [3500 lbf/in2]-DUCTILE HOUSING HIGH Pressure |
| Input torque | Standard |
