What is the Danfoss 252-1017-004?

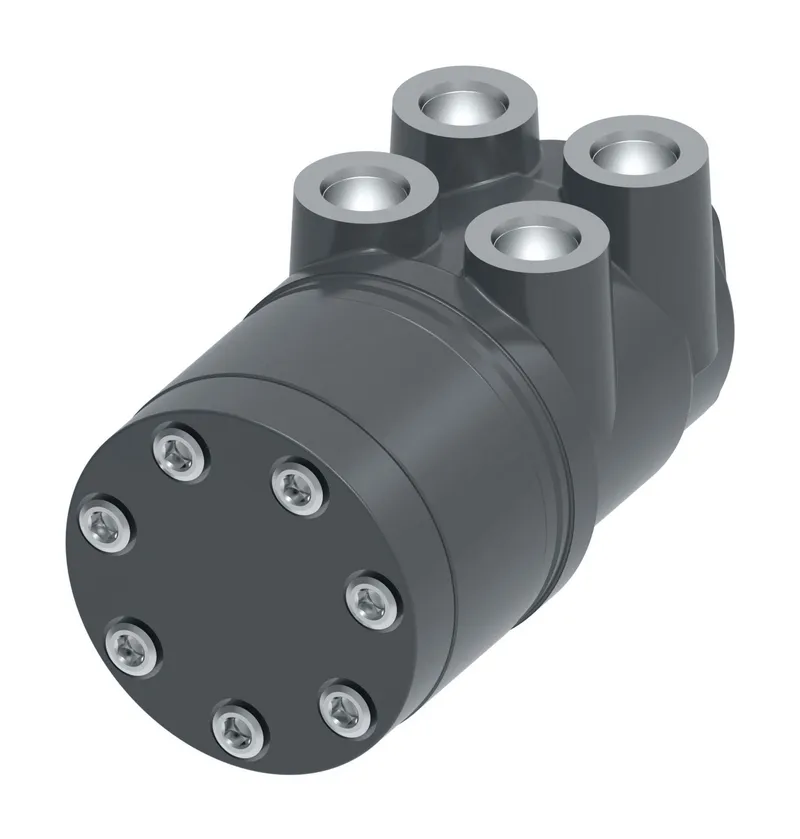

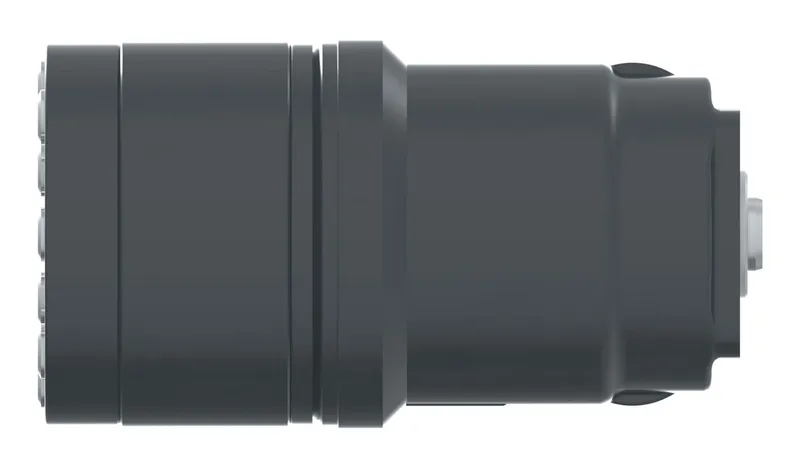

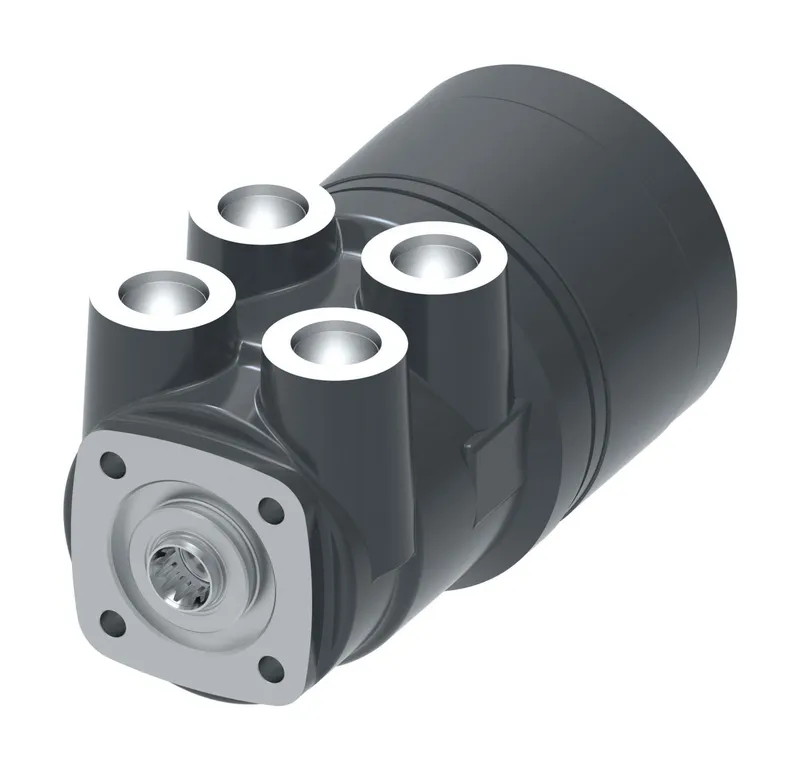

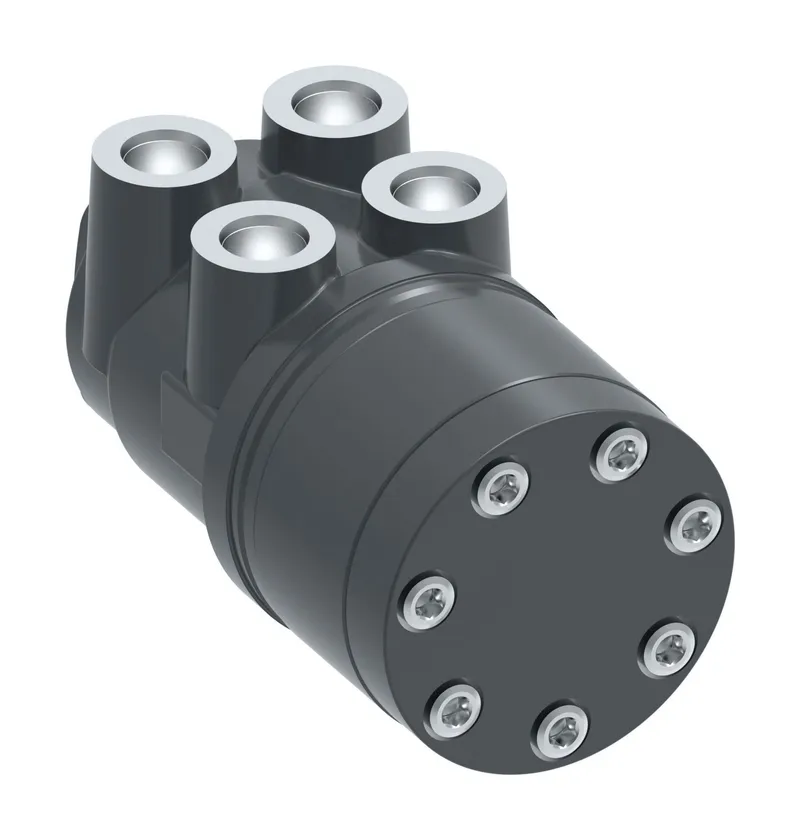

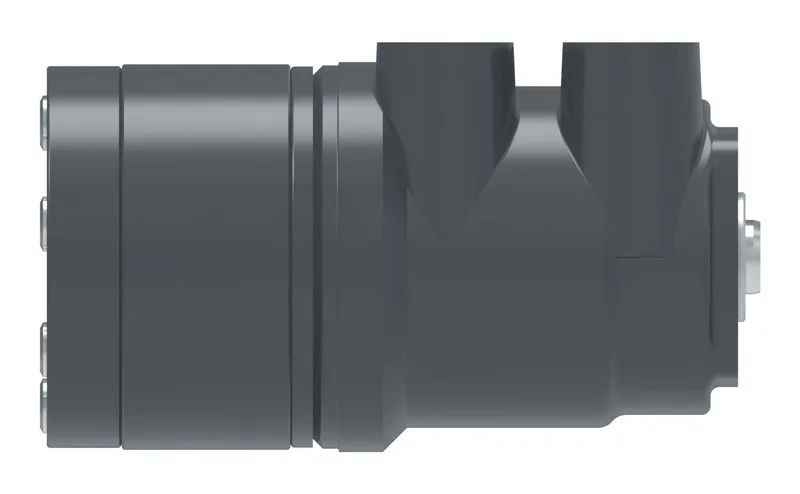

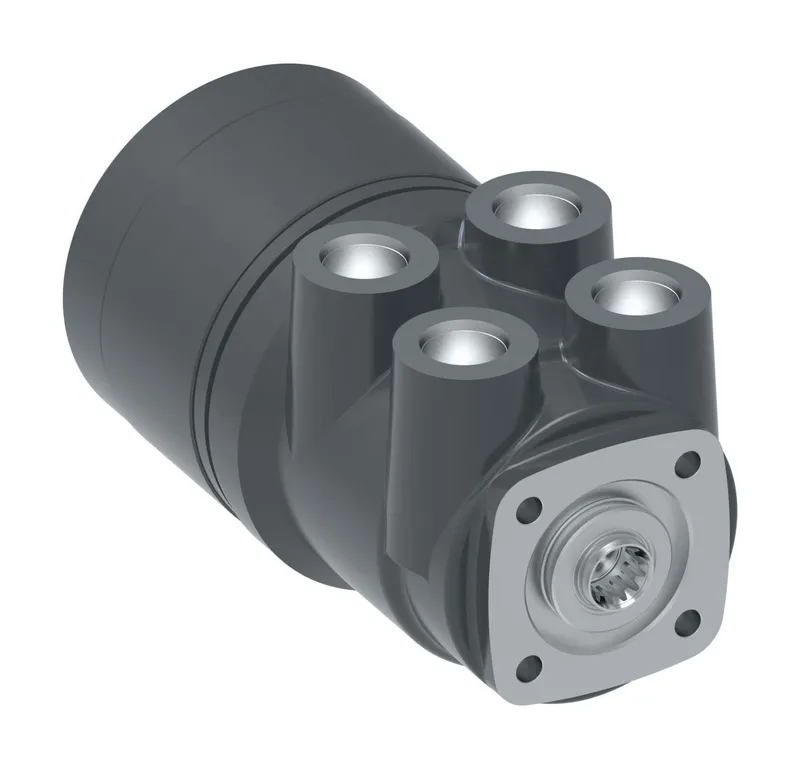

Danfoss ABW76A690CA21006FEAAA3A0AA10D, manufacturer part number 252-1017-004. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Additional ports	None
Brand	Danfoss
Cylinder relief valve setting	207 bar [3000] PSI
Design code	5
Displacement	983 cm3/r [60.0 in3/r]
Flow amplification	NONE
Fluid type	REFERENCE Danfoss TECHNICAL BULLETIN 3-401
Identification	DANFOSS NUMBER ON NAMEPLATE
Inlet or LS relief setting	None
Inlet pressure rating	241 bar [3500 lbf/in2]-DUCTILE HOUSING HIGH Pressure
Input torque	Standard
Load circuit	NON REACTION
Mounting threads	NONE ON PORT FACE 4X .375-16 UNC-2B ON MOUNTING FACE
Neutral circuit	Closed center
Nominal flow rating	95 LPM [25.00 GPM]
P,t,l, and r port size	4X 1.0625-12 UN-2B SAE O-RING PORT
Paint and packaging	Black paint
Product Series	Series 25
Return pressure rating	10 bar [145 lbf/in2] MAXIMUM
Special application options	NONE
Valve options	CYLINDER RELIEF VALVE, ANTI-CAVITATION VALVE
