Danfoss orbital motor quick selector Parts

Danfoss

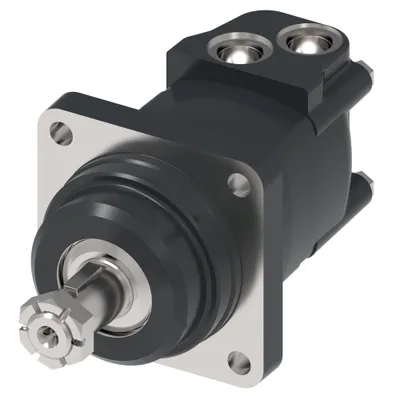

167-0143-001

MOTOR-ORBITAL,4000C SERIES 405 [24.6], ADK25AB03AA22000AH030UTA

Danfoss

167-0135-001

MOTOR-ORBITAL,4000C SERIES 160 [9.8], ADK10AB04AA01000AA000A0A

Danfoss

167-0126-001

MOTOR-ORBITAL,4000C SERIES 395 [24], ADK25BE98AA010000011000A

Danfoss

167-0125-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20BE98AA010000011000A

Danfoss

167-0124-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15BE98AA010000011000A

Danfoss

167-0121-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB06AA0000000060A0A

Danfoss

167-0109-001

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12BA35AD11A00AA000N0A

Danfoss

167-0101-001

MOTOR-ORBITAL,4000C SERIES 405 [24.6], ADK25AB04AA0100000000A0A

Danfoss

167-0092-001

MOTOR-ORBITAL,4000C SERIES 490 [30], ADK30AB03AA15000AA000A0A

Danfoss

167-0063-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AB03AA000000000000A

Danfoss

167-0060-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB03AA15000AA000A0A

Danfoss

167-0054-001

MOTOR-ORBITAL,4000C SERIES 490 [29.8], ADK30AB11AA01000AA000A0A

Danfoss

167-0047-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AM98BA0600000190M0A

Danfoss

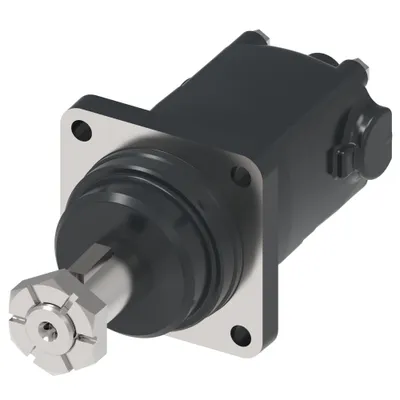

167-0046-001

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12AM98BB0600000190M0A

Danfoss

167-0044-001

MOTOR-ORBITAL,4000C SERIES 395 [24], ADK24AB03AA15000AA000A0A

Danfoss

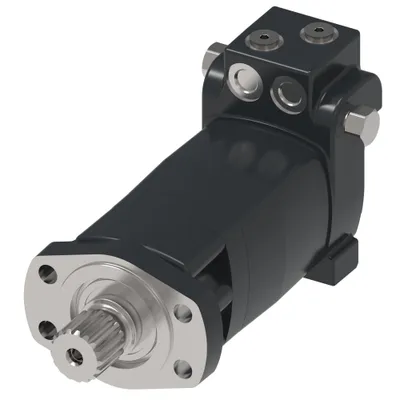

167-0039-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB98AH0100000000A0A

Danfoss

167-0037-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB98AA010000000000A

Danfoss

167-0036-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AM98BA0600000190F0A

Danfoss

167-0035-001

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12AM98BB0600000190F0A

Danfoss

167-0026-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AB98AA010000000000A

Danfoss

167-0024-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB45AA0300000000F0A

Danfoss

167-0005-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AG04AA0100000000F0A

Danfoss

158-4344-001

MOTOR-ORBITAL,T SERIES 100 [6.2], MT0062DD02AA0100070000AB0AA00A

Danfoss

158-4330-001

MOTOR-ORBITAL,T SERIES 195 [11.9], MT0119DDA8AC0000000000000AA42A

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port style
167-0143-001	ADK25AB03AA22000AH030UTA	405	403.2 [24.60]	Square key, 5/16 x 1 inch	Sideport - staggered
167-0135-001	ADK10AB04AA01000AA000A0A	160	160.6 [9.80]	n/a	Sideport - staggered
167-0126-001	ADK25BE98AA010000011000A	405	403.2 [24.60]	Square key, 7/16 x 1 1/4 inch	Sideport - staggered
167-0125-001	ADK20BE98AA010000011000A	325	324.6 [19.81]	Square key, 7/16 x 1 1/4 inch	Sideport - staggered
167-0124-001	ADK15BE98AA010000011000A	255	252.8 [15.43]	Square key, 7/16 x 1 1/4 inch	Sideport - staggered
167-0121-001	ADK20AB06AA0000000060A0A	325	324.6 [19.81]	n/a	Sideport - staggered
167-0109-001	ADK12BA35AD11A00AA000N0A	200	201.4 [12.29]	Spec. Component	Endport - aligned
167-0101-001	ADK25AB04AA0100000000A0A	405	403.2 [24.60]	n/a	Sideport - staggered
167-0092-001	ADK30AB03AA15000AA000A0A	490	489.0 [29.84]	Square key, 5/16 x 1 inch	Sideport - staggered
167-0063-001	ADK15AB03AA000000000000A	255	252.8 [15.43]	Square key, 5/16 x 1 inch	Sideport - staggered
167-0060-001	ADK20AB03AA15000AA000A0A	325	324.6 [19.81]	Square key, 5/16 x 1 inch	Sideport - staggered
167-0054-001	ADK30AB11AA01000AA000A0A	490	489.0 [29.84]	Square key, 3/8 x 2 1/4 inch	Sideport - staggered
167-0047-001	ADK15AM98BA0600000190M0A	255	252.8 [15.43]	Square key, 7/16 x 1 1/4 inch	Endport - aligned
167-0046-001	ADK12AM98BB0600000190M0A	200	201.4 [12.29]	Square key, 7/16 x 1 1/4 inch	Endport - aligned
167-0044-001	ADK24AB03AA15000AA000A0A	395	393.8 [24.03]	Square key, 5/16 x 1 inch	Sideport - staggered
167-0039-001	ADK20AB98AH0100000000A0A	325	324.6 [19.81]	Square key, 7/16 x 1 1/4 inch	Sideport - 180 deg to each other
167-0037-001	ADK20AB98AA010000000000A	325	324.6 [19.81]	Square key, 7/16 x 1 1/4 inch	Sideport - staggered
167-0036-001	ADK15AM98BA0600000190F0A	255	252.8 [15.43]	Square key, 7/16 x 1 1/4 inch	Endport - aligned
167-0035-001	ADK12AM98BB0600000190F0A	200	201.4 [12.29]	Square key, 7/16 x 1 1/4 inch	Endport - aligned
167-0026-001	ADK15AB98AA010000000000A	255	252.8 [15.43]	Square key, 7/16 x 1 1/4 inch	Sideport - staggered
167-0024-001	ADK20AB45AA0300000000F0A	325	324.6 [19.81]	Square key, 6 x 50 mm	Sideport - staggered
167-0005-001	ADK15AG04AA0100000000F0A	255	252.8 [15.43]	n/a	Sideport - staggered
158-4344-001	MT0062DD02AA0100070000AB0AA00A	100	102 [6.2]	n/a	Sideport - aligned
158-4330-001	MT0119DDA8AC0000000000000AA42A	195	195 [11.9]	n/a	Sideport - aligned

Common to all listed parts

Orbital gearwheel set type	Geroler
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Sensor	None
Design code	01
