Danfoss 167-0035-001

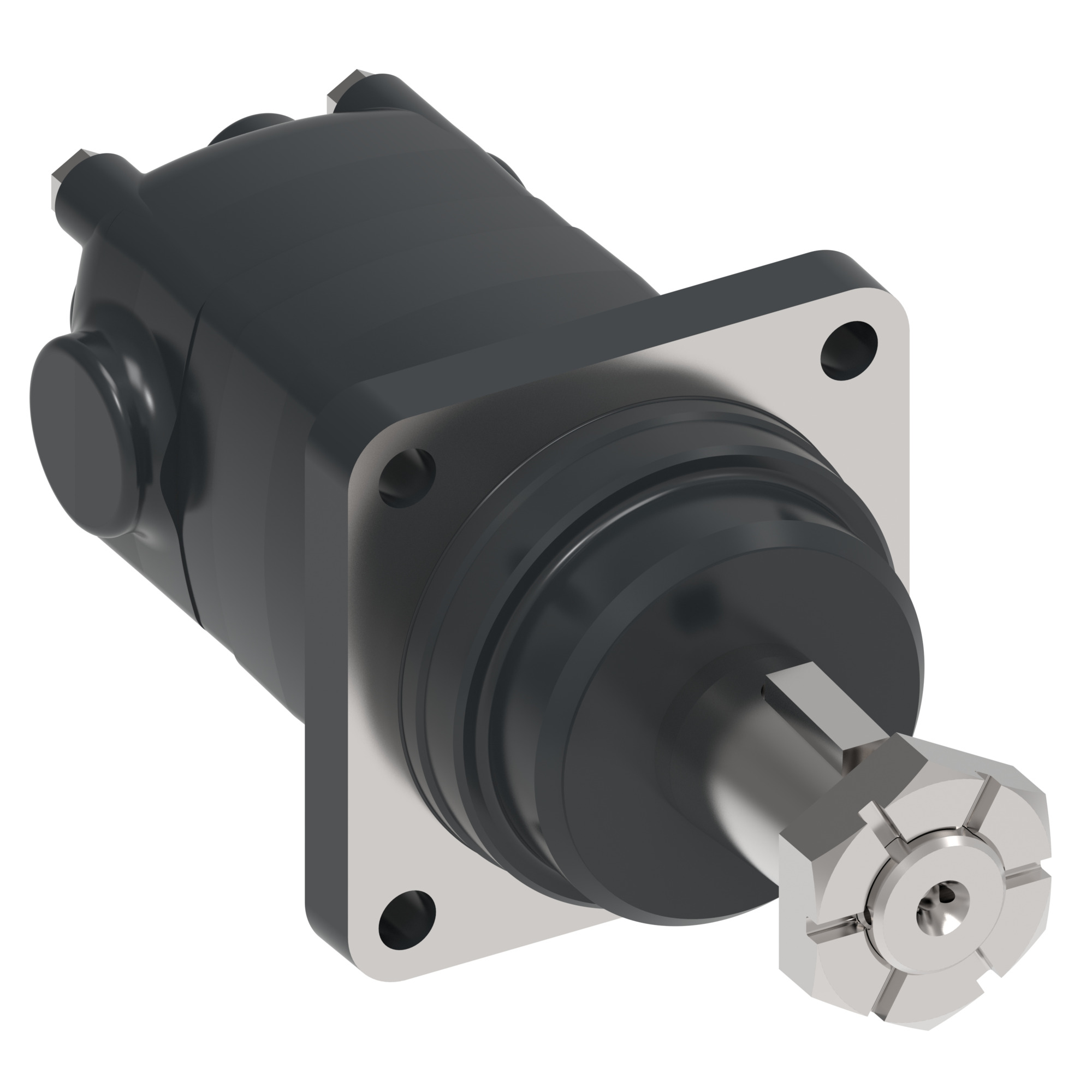

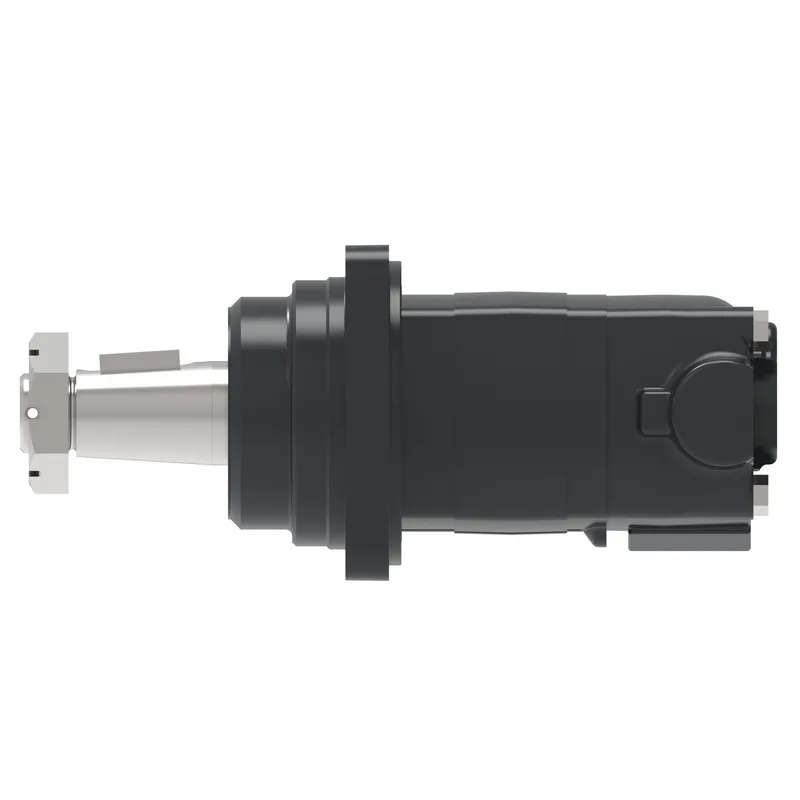

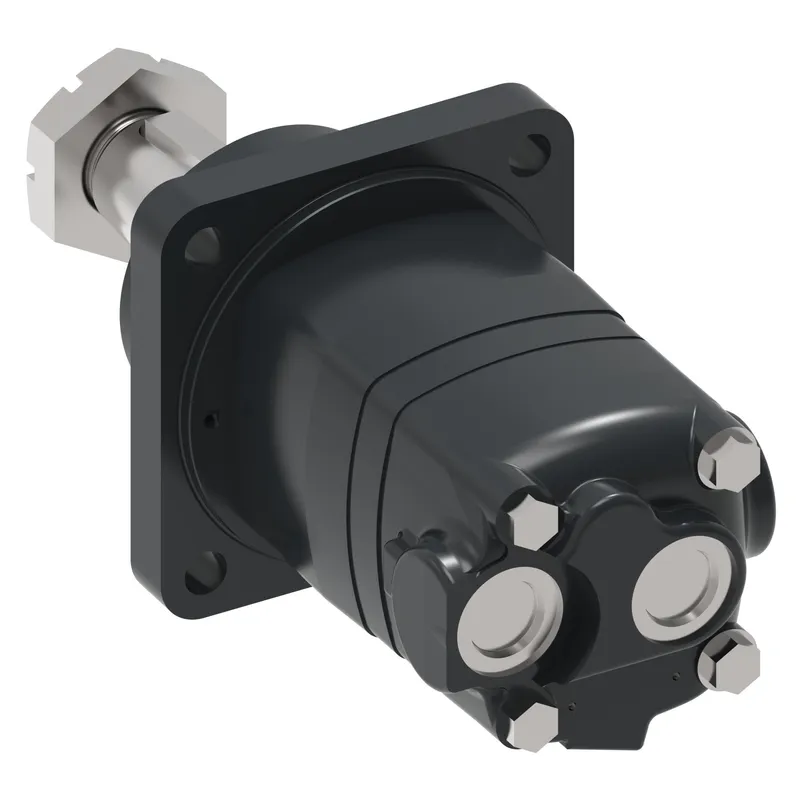

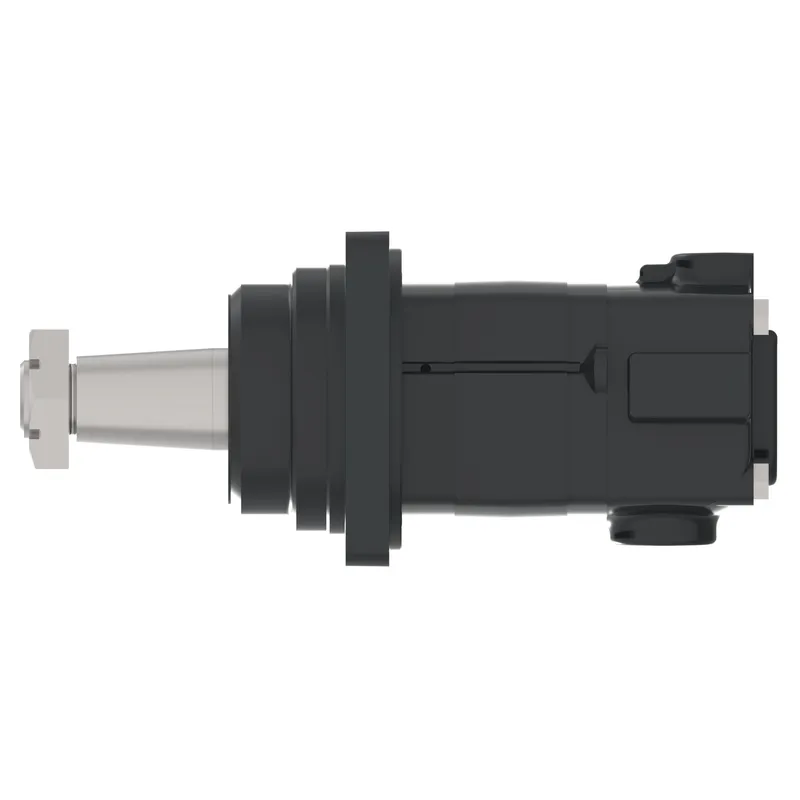

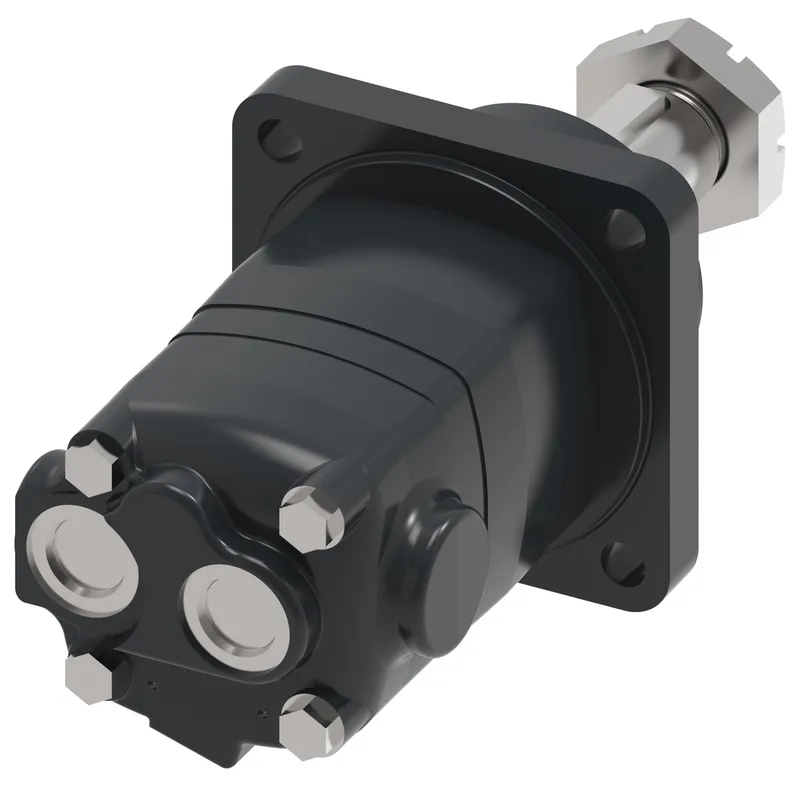

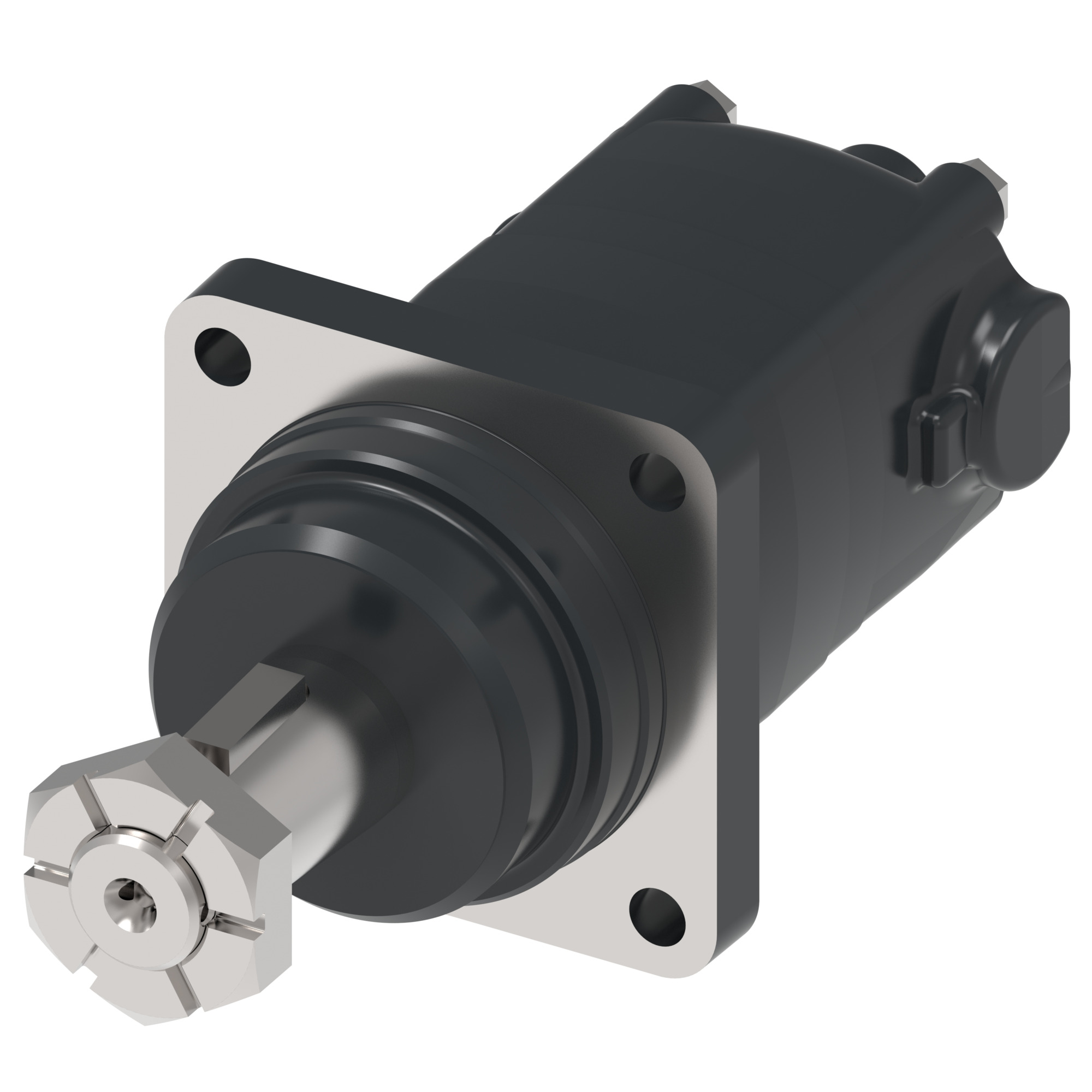

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12AM98BB0600000190F0A

MPN: 167-0035-001
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 167-0035-001?

Danfoss MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12AM98BB0600000190F0A, manufacturer part number 167-0035-001. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	ADK12AM98BB0600000190F0A
Motor Series	4000 Compact Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor size	200
Geometric displacement [cm3/r [in3/r]]	201.4 [12.29]
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	108.0 x 6.4, 147.6, 13.6 [4.25 x 0.25, 5.81, 0.54] Rear: 120.7 x 5.1, 147.6, 13.6 [4.75 x 0.20, 5.81, 0.54]
Shaft dimension	Dia. 1 5/8 inch, 1 1/4 - 18 UNEF -2A thread in shaft end
Shaft Key	Square key, 7/16 x 1 1/4 inch
Main port thread type	UN / UNF
Main port style	Endport - aligned
Main port dimension	7/8 - 14 UNF-2B SAE O-Ring port - Spec. Component
Drain Port Dimension	None - Spec. Component
Brake Release Port Dimension	n/a
Painted	No
Paint information	n/a
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Orbital gearwheel set	Tight
Check valve function	Yes
Hydraulic valve function	None
Sensor	None
Packaging	Bulk box
Name Tag	Danfoss name tag
Design code	01
