Danfoss orbital motor quick selector Parts

Danfoss

169-0136-001

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12AJ06AA000000000000A

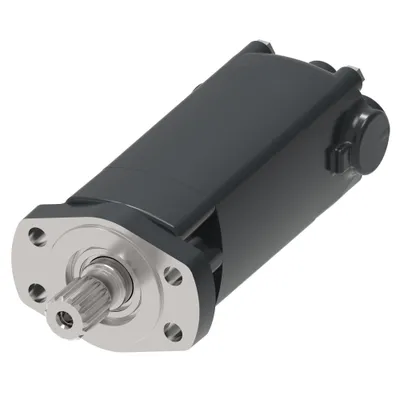

Danfoss

169-0132-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AJ04AD010000000000A

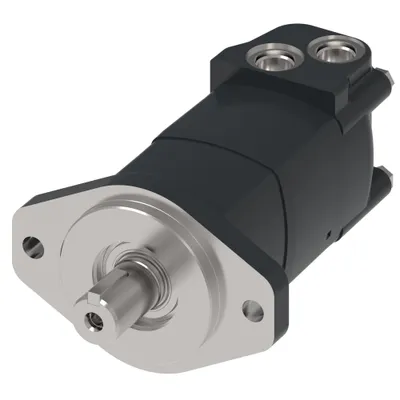

Danfoss

169-0124-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AF02AA000000000000A

Danfoss

169-0121-001

MOTOR-ORBITAL,4000C SERIES 405 [24.6], ADK25AJ04AD010000000000A

Danfoss

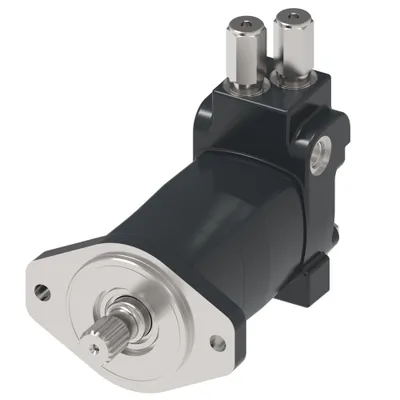

169-0120-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AT17AJ1900000170R0A

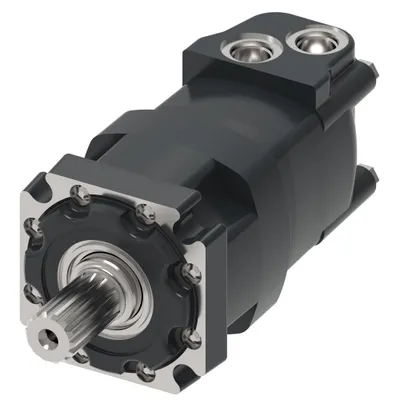

Danfoss

169-0119-001

MOTOR-ORBITAL,4000C SERIES 200 [12.3], ADK12BB07AA0100000110P0A

Danfoss

169-0111-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AJ04AD010000000000A

Danfoss

169-0109-001

MOTOR-ORBITAL,4000C SERIES 160 [9.8], ADK10AJ06AB010000000000A

Danfoss

169-0100-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AT17AJ1900000170ATA

Danfoss

169-0095-001

MOTOR-ORBITAL,4000C SERIES 160 [9.8], ADK10AJ06AA010000000000A

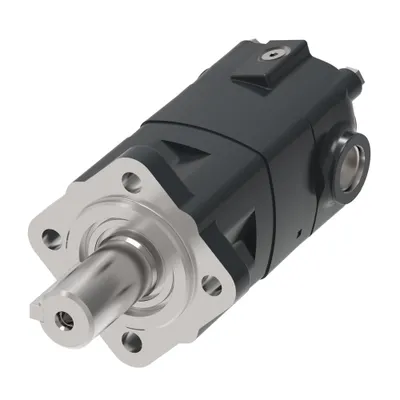

Danfoss

169-0093-001

MOTOR-ORBITAL,4000C SERIES 160 [9.8], ADK10AH11AH000000000000A

Danfoss

169-0089-001

MOTOR-ORBITAL,4000C SERIES 395 [24], ADK25AJ04AA010000000000A

Danfoss

169-0081-001

MOTOR-ORBITAL,4000C SERIES 250 [15.4], ADK15AJ10AE020000000000A

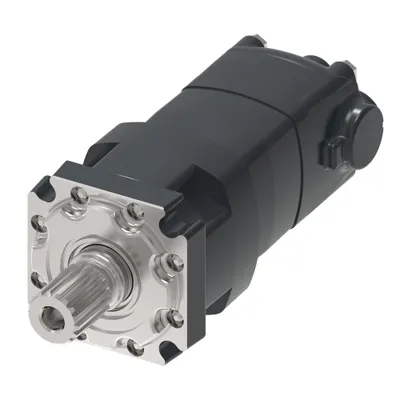

Danfoss

169-0079-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20BH97AD0000000150A0A

Danfoss

169-0076-001

MOTOR-ORBITAL,4000C SERIES 405 [24.6], ADK25AJ06AA000000000000A

Danfoss

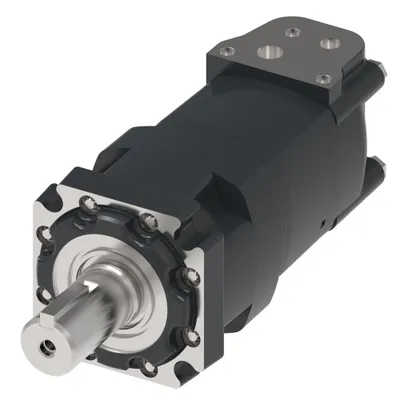

169-0072-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20BB15AB000000011000A

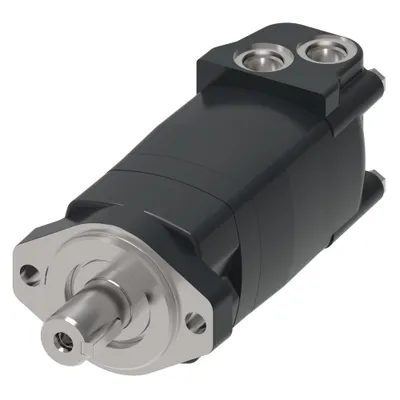

Danfoss

169-0068-001

MOTOR-ORBITAL,4000C SERIES 405 [24.6], ADK25AC04AA010000000000A

Danfoss

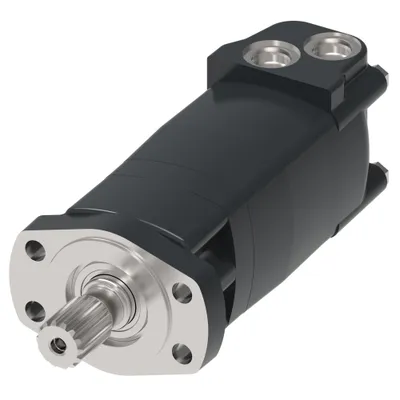

169-0052-001

MOTOR-ORBITAL,4000C SERIES 490 [29.8], ADK30AJ02AA010000000000A

Danfoss

169-0045-001

MOTOR-ORBITAL,4000C SERIES 395 [24], ADK24AF06AB010000000A00A

Danfoss

169-0043-001

MOTOR-ORBITAL,4000C SERIES 490 [29.8], ADK30AJ06AA010000000000A

Danfoss

169-0033-001

MOTOR-ORBITAL,4000C SERIES 395 [24], ADK24AH08AC0200000000A0A

Danfoss

169-0026-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AJ02AA0100000000A0A

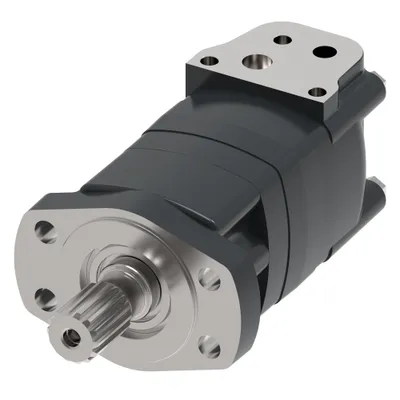

Danfoss

169-0006-001

MOTOR-ORBITAL,4000C SERIES 490 [30], ADK30AJ02AE0900000000A0A

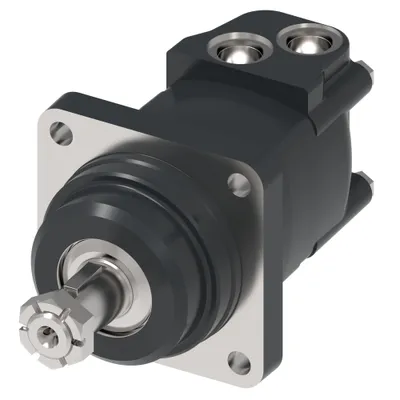

Danfoss

167-0144-001

MOTOR-ORBITAL,4000C SERIES 325 [19.8], ADK20AB98AA01000AA010A0A

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Shaft Key
169-0136-001	ADK12AJ06AA000000000000A	200	201.4 [12.29]	4 Bolt - Magneto	n/a
169-0132-001	ADK15AJ04AD010000000000A	255	252.8 [15.43]	4 Bolt - Magneto	n/a
169-0124-001	ADK15AF02AA000000000000A	255	252.8 [15.43]	2 Bolt - B	Square key, 5/16 x 1 1/4 inch
169-0121-001	ADK25AJ04AD010000000000A	405	403.2 [24.60]	4 Bolt - Magneto	n/a
169-0120-001	ADK20AT17AJ1900000170R0A	325	324.6 [19.81]	2 Bolt - B	n/a
169-0119-001	ADK12BB07AA0100000110P0A	200	201.4 [12.29]	4 Bolt - Square	n/a
169-0111-001	ADK20AJ04AD010000000000A	325	324.6 [19.81]	4 Bolt - Magneto	n/a
169-0109-001	ADK10AJ06AB010000000000A	160	160.6 [9.80]	4 Bolt - Magneto	n/a
169-0100-001	ADK20AT17AJ1900000170ATA	325	324.6 [19.81]	2 Bolt - B	n/a
169-0095-001	ADK10AJ06AA010000000000A	160	160.6 [9.80]	4 Bolt - Magneto	n/a
169-0093-001	ADK10AH11AH000000000000A	160	160.6 [9.80]	4 Bolt - Square	Square key, 3/8 x 2 1/4 inch
169-0089-001	ADK25AJ04AA010000000000A	405	403.2 [24.60]	4 Bolt - Magneto	n/a
169-0081-001	ADK15AJ10AE020000000000A	255	252.8 [15.43]	4 Bolt - Magneto	Rectangular key, 10 x 8 x 45 mm
169-0079-001	ADK20BH97AD0000000150A0A	325	324.6 [19.81]	4 Bolt - Square	n/a
169-0076-001	ADK25AJ06AA000000000000A	405	403.2 [24.60]	4 Bolt - Magneto	n/a
169-0072-001	ADK20BB15AB000000011000A	325	324.6 [19.81]	4 Bolt - Square	Square key, 3/8 x 1 5/8 inch
169-0068-001	ADK25AC04AA010000000000A	405	403.2 [24.60]	2 Bolt - A	n/a
169-0052-001	ADK30AJ02AA010000000000A	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
169-0045-001	ADK24AF06AB010000000A00A	395	393.8 [24.03]	2 Bolt - B	n/a
169-0043-001	ADK30AJ06AA010000000000A	490	489.0 [29.84]	4 Bolt - Magneto	n/a
169-0033-001	ADK24AH08AC0200000000A0A	395	393.8 [24.03]	4 Bolt - Square	Rectangular key, 8 x 12 x 70 mm
169-0026-001	ADK20AJ02AA0100000000A0A	325	324.6 [19.81]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
169-0006-001	ADK30AJ02AE0900000000A0A	490	489.0 [29.84]	4 Bolt - Magneto	Square key, 5/16 x 1 1/4 inch
167-0144-001	ADK20AB98AA01000AA010A0A	325	324.6 [19.81]	4 Bolt - Wheel	Square key, 7/16 x 1 1/4 inch

Common to all listed parts

Motor Series	4000 Compact Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor function	Standard
Brake Release Port Dimension	n/a
Front bearing type	Tapered roller bearing
Rear bearing type	Tapered roller bearing
Check valve function	Yes
