Danfoss orbital motor quick selector Parts

Danfoss

016-0518-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA04AA110020A000D00B

Danfoss

016-0517-002

MOTOR-ORBITAL,XLH SERIES 50 [3.0], MCH050AR04AN020040A030C00B

Danfoss

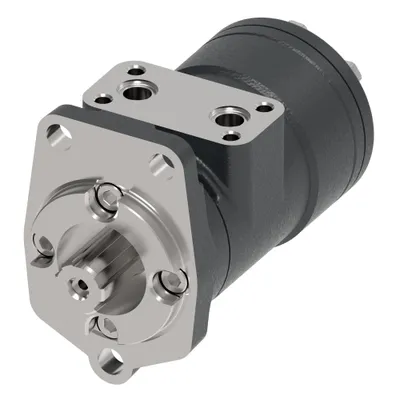

016-0516-002

MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AR04AN020040A030C00B

Danfoss

016-0515-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AM03AA010000A030B02B

Danfoss

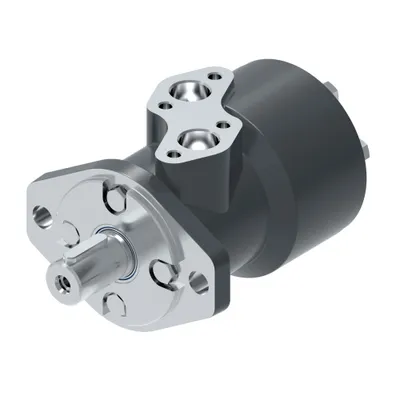

016-0512-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AC05AE010000A000D08B

Danfoss

016-0511-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AC08AE010000A000D00B

Danfoss

016-0510-002

MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AC05AE020000A000C00B

Danfoss

016-0509-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA04AA010000A000C00B

Danfoss

016-0508-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA04AA010000A000C00B

Danfoss

016-0507-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA04AA010000A000C00B

Danfoss

016-0506-002

MOTOR-ORBITAL,XLH SERIES 485 [30.0], MCH485AB01AA110000A000H00B

Danfoss

016-0505-002

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AB01AA110000A000H00B

Danfoss

016-0502-002

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA03AA110020A000C02B

Danfoss

016-0498-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA03AA110020A000C02B

Danfoss

016-0497-002

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA03AA110020A000C02B

Danfoss

016-0496-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA03AA110020A000C02B

Danfoss

016-0495-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA03AA110020A000C02B

Danfoss

016-0494-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA03AA110020A000C02B

Danfoss

016-0493-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AA110020A000C02B

Danfoss

016-0491-002

MOTOR-ORBITAL,XLH SERIES 50 [3.0], MCH050AR04AN020040A030C06B

Danfoss

016-0490-002

MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AR04AN020040A030C06B

Danfoss

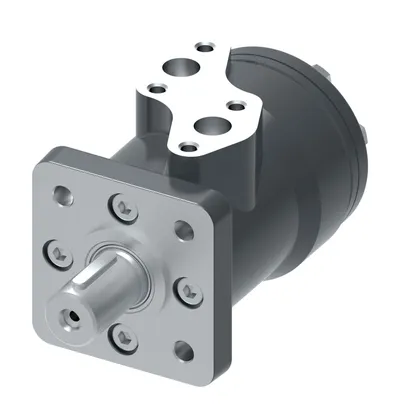

016-0489-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AE02AA110020A000C00B

Danfoss

016-0488-002

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA04AA110020A000B00B

Danfoss

016-0487-002

MOTOR-ORBITAL,XLH SERIES 35 [2.2], MCH036AA01AA020000A000B00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Mounting flange type	Paint information
016-0518-002	MCH245AA04AA110020A000D00B	240	240.0 [14.64]	2 Bolt - A	Painted, Black - Spec. Component
016-0517-002	MCH050AR04AN020040A030C00B	50	52.2 [3.19]	Special	Painted, Black
016-0516-002	MCH036AR04AN020040A030C00B	35	37.3 [2.28]	Special	Painted, Black
016-0515-002	MCH053AM03AA010000A030B02B	55	53.0 [3.23]	2 Bolt - A	Painted, Blue
016-0512-002	MCH080AC05AE010000A000D08B	80	78.7 [4.80]	2 Bolt - A	Painted, Black - Spec. Component
016-0511-002	MCH053AC08AE010000A000D00B	55	53.0 [3.23]	2 Bolt - A	Painted, Black - Spec. Component
016-0510-002	MCH036AC05AE020000A000C00B	35	37.3 [2.28]	2 Bolt - A	Painted, Black
016-0509-002	MCH390AA04AA010000A000C00B	390	390.8 [23.85]	2 Bolt - A	Painted, Black
016-0508-002	MCH315AA04AA010000A000C00B	315	317.0 [19.34]	2 Bolt - A	Painted, Black
016-0507-002	MCH245AA04AA010000A000C00B	240	240.0 [14.64]	2 Bolt - A	Painted, Black
016-0506-002	MCH485AB01AA110000A000H00B	485	482.5 [29.44]	2 Bolt - A	Painted, Grey - Spec. Component
016-0505-002	MCH315AB01AA110000A000H00B	315	317.0 [19.34]	2 Bolt - A	Painted, Grey - Spec. Component
016-0502-002	MCH390AA03AA110020A000C02B	390	390.8 [23.85]	2 Bolt - A	Painted, Black
016-0498-002	MCH245AA03AA110020A000C02B	240	240.0 [14.64]	2 Bolt - A	Painted, Black
016-0497-002	MCH200AA03AA110020A000C02B	200	195.0 [11.90]	2 Bolt - A	Painted, Black
016-0496-002	MCH160AA03AA110020A000C02B	160	158.0 [9.64]	2 Bolt - A	Painted, Black
016-0495-002	MCH100AA03AA110020A000C02B	100	97.9 [5.97]	2 Bolt - A	Painted, Black
016-0494-002	MCH080AA03AA110020A000C02B	80	78.7 [4.80]	2 Bolt - A	Painted, Black
016-0493-002	MCH053AA03AA110020A000C02B	55	53.0 [3.23]	2 Bolt - A	Painted, Black
016-0491-002	MCH050AR04AN020040A030C06B	50	52.2 [3.19]	Special	Painted, Black
016-0490-002	MCH036AR04AN020040A030C06B	35	37.3 [2.28]	Special	Painted, Black
016-0489-002	MCH100AE02AA110020A000C00B	100	97.9 [5.97]	4 Bolt - Square	Painted, Black
016-0488-002	MCH245AA04AA110020A000B00B	240	240.0 [14.64]	2 Bolt - A	Painted, Blue
016-0487-002	MCH036AA01AA020000A000B00B	35	37.3 [2.28]	2 Bolt - A	Painted, Blue

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
