Danfoss orbital motor quick selector Parts

Danfoss

016-0546-003

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA10AA110020A000C00C

Danfoss

016-0545-003

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA10AA110020A000C00C

Danfoss

016-0544-003

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AA10AA110020A000C00C

Danfoss

016-0543-003

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA10AA110020A000C00C

Danfoss

016-0541-003

MOTOR-ORBITAL,XLH SERIES 485 [30.0], MCH485AA07AA110020A000C00C

Danfoss

016-0540-003

MOTOR-ORBITAL,XLH SERIES 390 [23.8], MCH390AA07AA110020A000C00C

Danfoss

016-0539-003

MOTOR-ORBITAL,XLH SERIES 315 [19.2], MCH315AA07AA110020A000C00C

Danfoss

016-0538-003

MOTOR-ORBITAL,XLH SERIES 245 [14.9], MCH245AA07AA110020A000C00C

Danfoss

016-0537-003

MOTOR-ORBITAL,XLH SERIES 200 [12.2], MCH200AA07AA110020A000C00C

Danfoss

016-0536-003

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA07AA110020A000C00C

Danfoss

016-0535-003

MOTOR-ORBITAL,XLH SERIES 125 [7.6], MCH125AA07AA110020A000C00C

Danfoss

016-0534-003

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AA07AA110020A000C00C

Danfoss

016-0533-003

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA07AA110020A000C00C

Danfoss

016-0532-003

MOTOR-ORBITAL,XLH SERIES 63 [3.8], MCH063AA07AA110020A000C00C

Danfoss

016-0531-003

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA07AA110020A000C00C

Danfoss

016-0528-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA03AE010000A000D00B

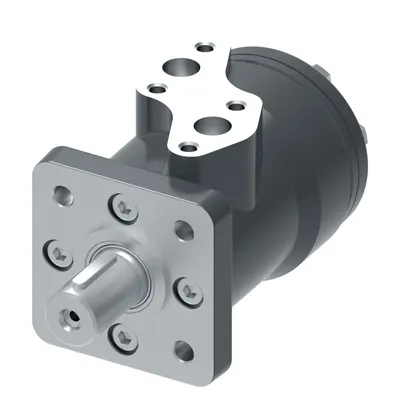

Danfoss

016-0527-002

MOTOR-ORBITAL,XLH SERIES 100 [6.2], MCH100AD05AE010020A000C00B

Danfoss

016-0526-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AD05AE010020A000C00B

Danfoss

016-0525-002

MOTOR-ORBITAL,XLH SERIES 36 [2.2], MCH036AA03AA020000A000C00B

Danfoss

016-0524-002

MOTOR-ORBITAL,XLH SERIES 53 [3.2], MCH053AA01AA110020A000D00B

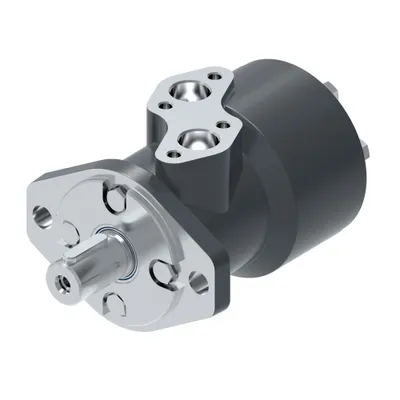

Danfoss

016-0523-002

MOTOR-ORBITAL,XLH SERIES 80 [4.9], MCH080AA02AA110020A000D00B

Danfoss

016-0522-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AC04AA110020A000D00B

Danfoss

016-0520-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AC04AA110020A000C00B

Danfoss

016-0519-002

MOTOR-ORBITAL,XLH SERIES 160 [9.6], MCH160AA04AA110020A000B00B

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
016-0546-003	MCH100AA10AA110020A000C00C	100	97.9 [5.97]	Rectangular key, A8 x 7 x 32 mm	Painted, Black
016-0545-003	MCH080AA10AA110020A000C00C	80	78.7 [4.80]	Rectangular key, A8 x 7 x 32 mm	Painted, Black
016-0544-003	MCH063AA10AA110020A000C00C	65	63.6 [3.88]	Rectangular key, A8 x 7 x 32 mm	Painted, Black
016-0543-003	MCH053AA10AA110020A000C00C	55	53.0 [3.23]	Rectangular key, A8 x 7 x 32 mm	Painted, Black
016-0541-003	MCH485AA07AA110020A000C00C	485	482.5 [29.44]	n/a	Painted, Black
016-0540-003	MCH390AA07AA110020A000C00C	390	390.8 [23.85]	n/a	Painted, Black
016-0539-003	MCH315AA07AA110020A000C00C	315	317.0 [19.34]	n/a	Painted, Black
016-0538-003	MCH245AA07AA110020A000C00C	240	240.0 [14.64]	n/a	Painted, Black
016-0537-003	MCH200AA07AA110020A000C00C	200	195.0 [11.90]	n/a	Painted, Black
016-0536-003	MCH160AA07AA110020A000C00C	160	158.0 [9.64]	n/a	Painted, Black
016-0535-003	MCH125AA07AA110020A000C00C	120	121.0 [7.38]	n/a	Painted, Black
016-0534-003	MCH100AA07AA110020A000C00C	100	97.9 [5.97]	n/a	Painted, Black
016-0533-003	MCH080AA07AA110020A000C00C	80	78.7 [4.80]	n/a	Painted, Black
016-0532-003	MCH063AA07AA110020A000C00C	65	63.6 [3.88]	n/a	Painted, Black
016-0531-003	MCH053AA07AA110020A000C00C	55	53.0 [3.23]	n/a	Painted, Black
016-0528-002	MCH053AA03AE010000A000D00B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	Painted, Black - Spec. Component
016-0527-002	MCH100AD05AE010020A000C00B	100	97.9 [5.97]	Square key, 1/4 x 1 1/4 inch	Painted, Black
016-0526-002	MCH053AD05AE010020A000C00B	55	53.0 [3.23]	Square key, 1/4 x 1 1/4 inch	Painted, Black
016-0525-002	MCH036AA03AA020000A000C00B	35	37.3 [2.28]	Square key, 1/4 x 1 1/4 inch	Painted, Black
016-0524-002	MCH053AA01AA110020A000D00B	55	53.0 [3.23]	Rectangular key, A8 x 7 x 32 mm	Painted, Black - Spec. Component
016-0523-002	MCH080AA02AA110020A000D00B	80	78.7 [4.80]	Rectangular key, A8 x 7 x 32 mm	Painted, Black - Spec. Component
016-0522-002	MCH160AC04AA110020A000D00B	160	158.0 [9.64]	n/a	Painted, Black - Spec. Component
016-0520-002	MCH160AC04AA110020A000C00B	160	158.0 [9.64]	n/a	Painted, Black
016-0519-002	MCH160AA04AA110020A000B00B	160	158.0 [9.64]	n/a	Painted, Blue

Common to all listed parts

Motor Series	XLH Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
Painted	Yes
