Danfoss orbital motor quick selector Parts

Danfoss

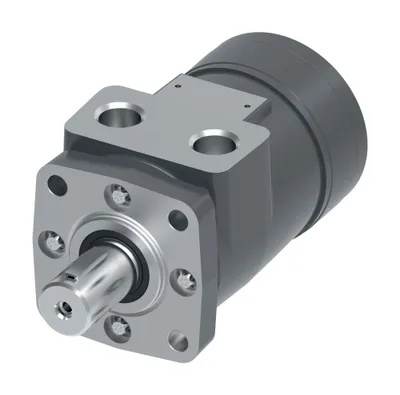

101-2015-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BN01AB000N000000SS0AD00J

Danfoss

101-2011-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AB00000000000000000J

Danfoss

101-2010-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AB00000000000000000J

Danfoss

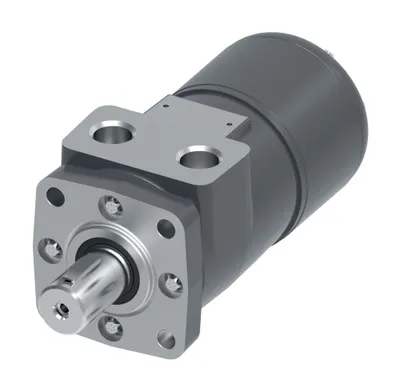

101-2008-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AB0100000000000AA00J

Danfoss

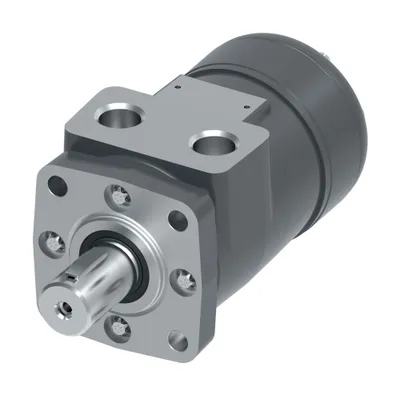

101-2005-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA01AB0100000000000AA00J

Danfoss

101-2001-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AB0100000000000AA00J

Danfoss

101-1872-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA02AA0000000000000AA00J

Danfoss

101-1863-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA08AB0000000000000AA00J

Danfoss

101-1861-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA08AB00A0000000000AA00J

Danfoss

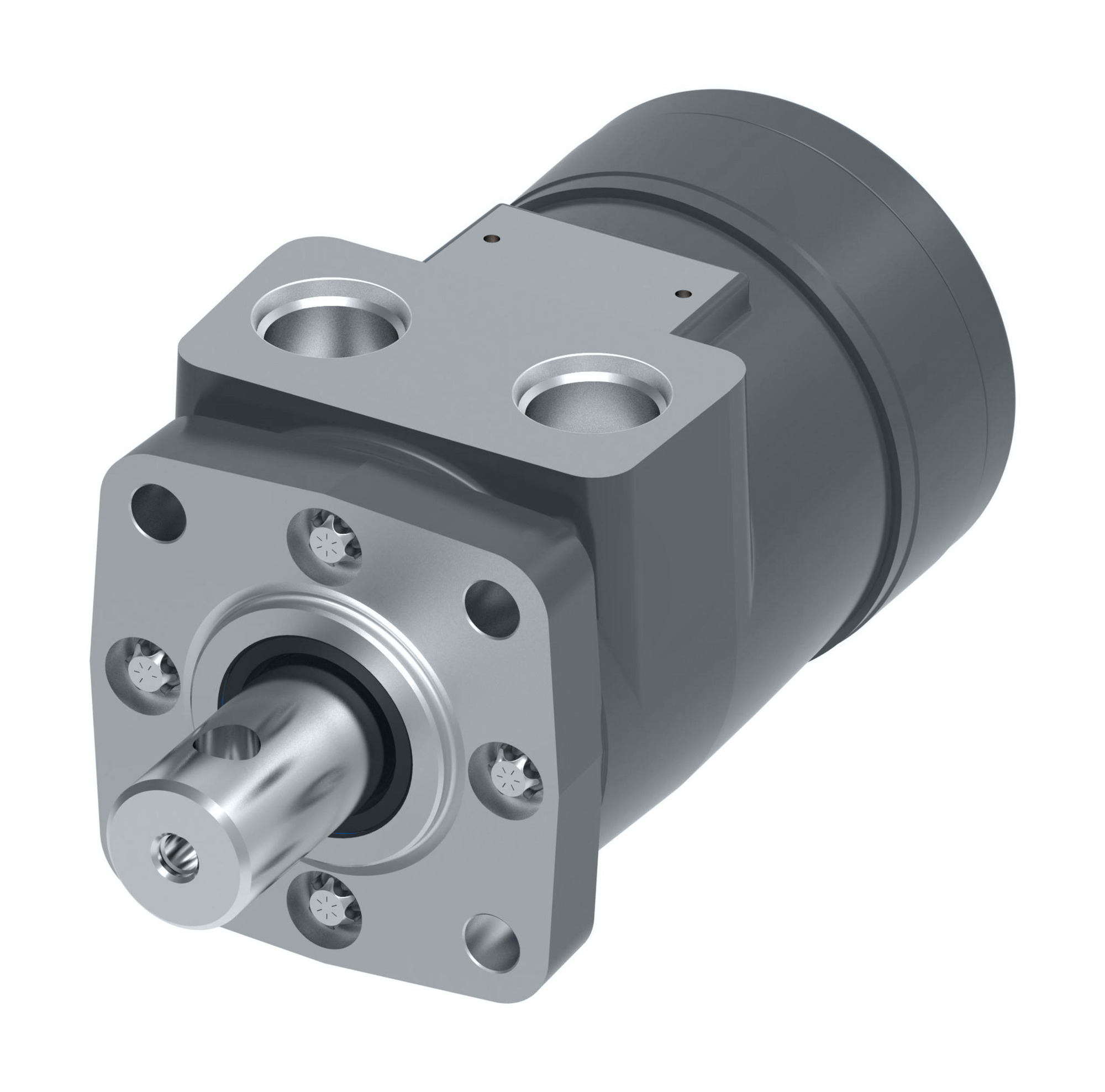

101-1860-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA08AA0000000000000AA00J

Danfoss

101-1857-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA08AA0000000000000AA00J

Danfoss

101-1856-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA08AA0000000000000AA00J

Danfoss

101-1855-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035BA08AA00A0000000000AA00J

Danfoss

101-1854-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA08AA00A0000000000AA00J

Danfoss

101-1853-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA07AC0000000000000AA00J

Danfoss

101-1850-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA07AC0000000000000AA00J

Danfoss

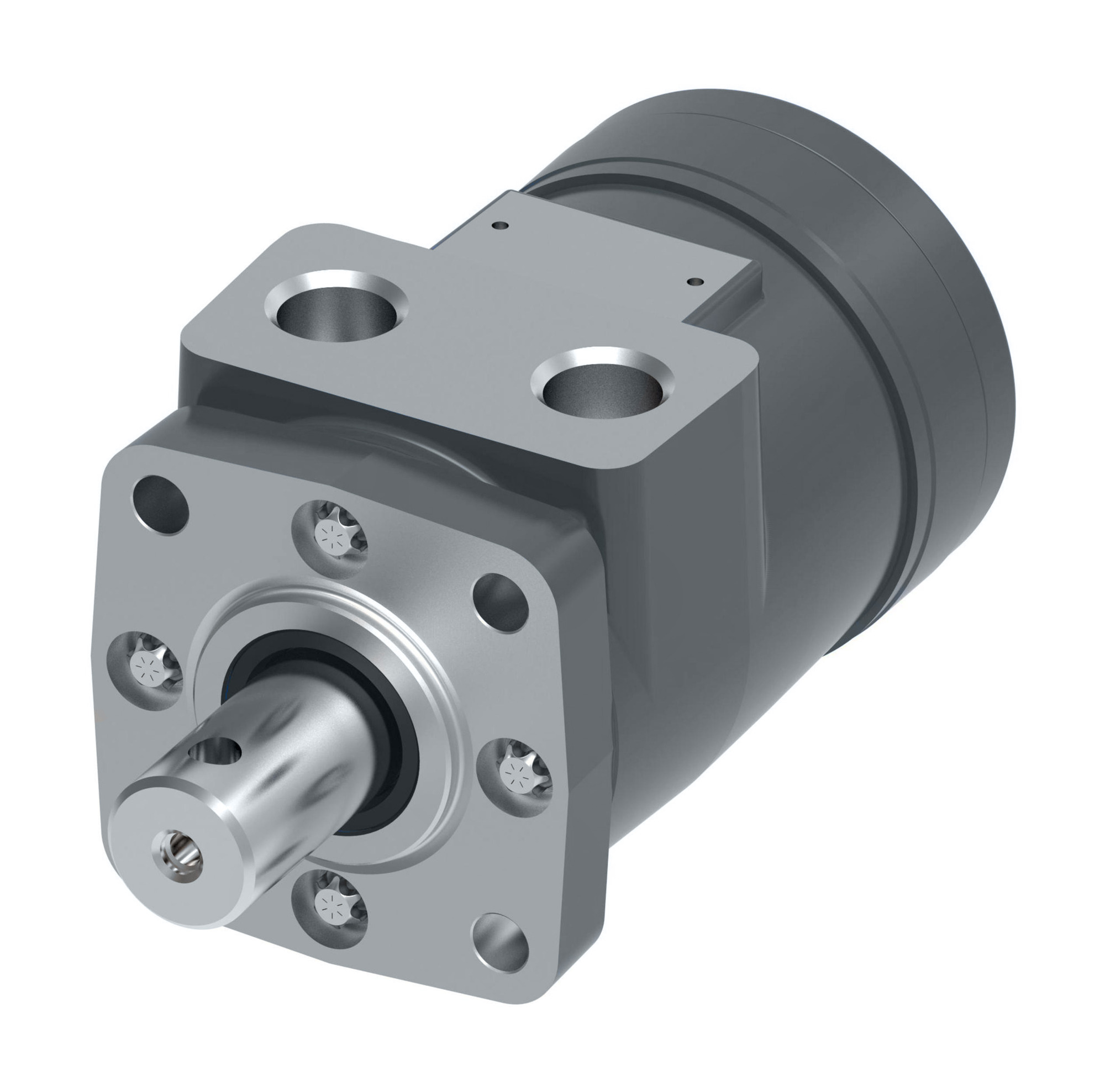

101-1845-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA07AB0000000000000AA00J

Danfoss

101-1842-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA07AA0000000000000AA00J

Danfoss

101-1839-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA07AA0000000000000AA00J

Danfoss

101-1838-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA07AA0000000000000AA00J

Danfoss

101-1836-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA07AA0000000000000AA00J

Danfoss

101-1835-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA07AA00A0000000000AA00J

Danfoss

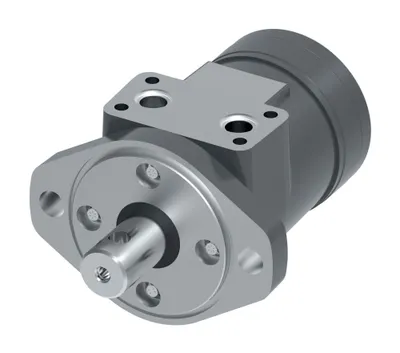

101-1833-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA08AC0000000000000AA00J

Danfoss

101-1828-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA08AB0000000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Paint information
101-2015-009	MH0097BN01AB000N000000SS0AD00J	160	159 [9.7]	NPT / NPTF	Environmental coated, White
101-2011-009	MH0059BA01AB00000000000000000J	95	96 [5.9]	NPT / NPTF	n/a
101-2010-009	MH0045BA01AB00000000000000000J	75	74 [4.5]	NPT / NPTF	n/a
101-2008-009	MH0226BA01AB0100000000000AA00J	370	370 [22.6]	NPT / NPTF	Primer, Black, Low gloss
101-2005-009	MH0113BA01AB0100000000000AA00J	185	185 [11.3]	NPT / NPTF	Primer, Black, Low gloss
101-2001-009	MH0028BA01AB0100000000000AA00J	45	46 [2.8]	NPT / NPTF	Primer, Black, Low gloss
101-1872-009	MH0073BA02AA0000000000000AA00J	120	120 [7.3]	UN / UNF	Primer, Black, Low gloss
101-1863-009	MH0073BA08AB0000000000000AA00J	120	120 [7.3]	NPT / NPTF	Primer, Black, Low gloss
101-1861-009	MH0022BA08AB00A0000000000AA00J	35	36 [2.2]	NPT / NPTF	Primer, Black, Low gloss
101-1860-009	MH0097BA08AA0000000000000AA00J	160	159 [9.7]	UN / UNF	Primer, Black, Low gloss
101-1857-009	MH0059BA08AA0000000000000AA00J	95	96 [5.9]	UN / UNF	Primer, Black, Low gloss
101-1856-009	MH0045BA08AA0000000000000AA00J	75	74 [4.5]	UN / UNF	Primer, Black, Low gloss
101-1855-009	MH0035BA08AA00A0000000000AA00J	60	58 [3.5]	UN / UNF	Primer, Black, Low gloss
101-1854-009	MH0022BA08AA00A0000000000AA00J	35	36 [2.2]	UN / UNF	Primer, Black, Low gloss
101-1853-009	MH0097BA07AC0000000000000AA00J	160	159 [9.7]	Manifold	Primer, Black, Low gloss
101-1850-009	MH0059BA07AC0000000000000AA00J	95	96 [5.9]	Manifold	Primer, Black, Low gloss
101-1845-009	MH0073BA07AB0000000000000AA00J	120	120 [7.3]	NPT / NPTF	Primer, Black, Low gloss
101-1842-009	MH0097BA07AA0000000000000AA00J	160	159 [9.7]	UN / UNF	Primer, Black, Low gloss
101-1839-009	MH0059BA07AA0000000000000AA00J	95	96 [5.9]	UN / UNF	Primer, Black, Low gloss
101-1838-009	MH0045BA07AA0000000000000AA00J	75	74 [4.5]	UN / UNF	Primer, Black, Low gloss
101-1836-009	MH0028BA07AA0000000000000AA00J	45	46 [2.8]	UN / UNF	Primer, Black, Low gloss
101-1835-009	MH0022BA07AA00A0000000000AA00J	35	36 [2.2]	UN / UNF	Primer, Black, Low gloss
101-1833-009	MH0073AA08AC0000000000000AA00J	120	120 [7.3]	Manifold	Primer, Black, Low gloss
101-1828-009	MH0097AA08AB0000000000000AA00J	160	159 [9.7]	NPT / NPTF	Primer, Black, Low gloss

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
