Danfoss orbital motor quick selector Parts

Danfoss

101-1757-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AC00A0000000000AA00J

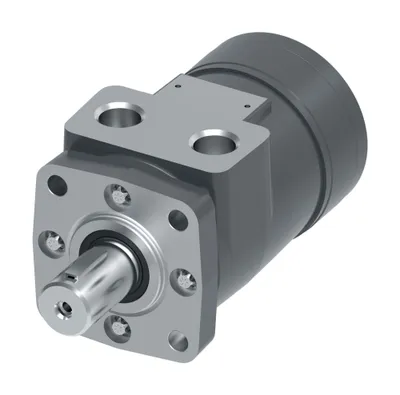

Danfoss

101-1756-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089BA01AB0000000000000AA00J

Danfoss

101-1755-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AB0000000000000AA00J

Danfoss

101-1754-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035BA01AB00A0000000000AA00J

Danfoss

101-1753-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AB00A0000000000AA00J

Danfoss

101-1752-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089BA01AA0000000000000AA00J

Danfoss

101-1751-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AA0000000000000AA00J

Danfoss

101-1750-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035BA01AA00A0000000000AA00J

Danfoss

101-1749-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AA00A0000000000AA00J

Danfoss

101-1748-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA24AF0200000000000AA00J

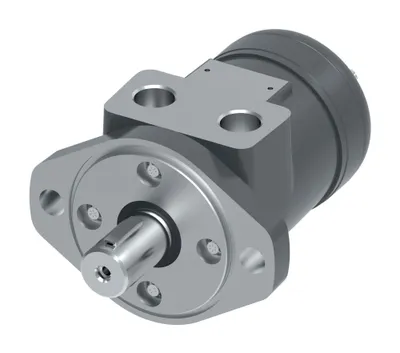

Danfoss

101-1747-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA24AF0200000000000AA00J

Danfoss

101-1746-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA24AF02A0000000000AA00J

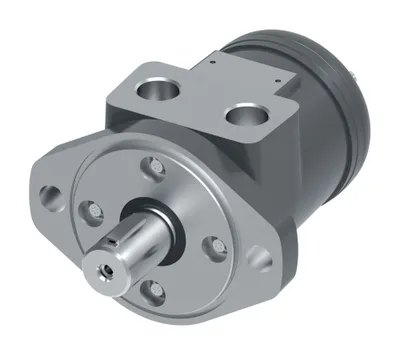

Danfoss

101-1745-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA24AF02A0000000000AA00J

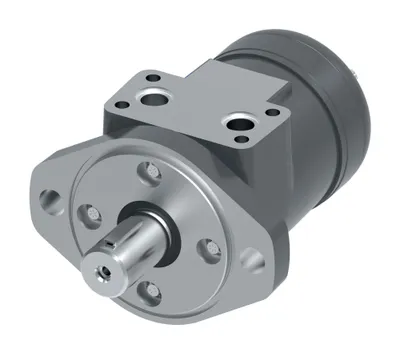

Danfoss

101-1743-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA24AD0200000000000AA00J

Danfoss

101-1741-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA24AD02A0000000000AA00J

Danfoss

101-1731-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA02AC0000000000000AA00J

Danfoss

101-1730-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA02AC00A0000000000AA00J

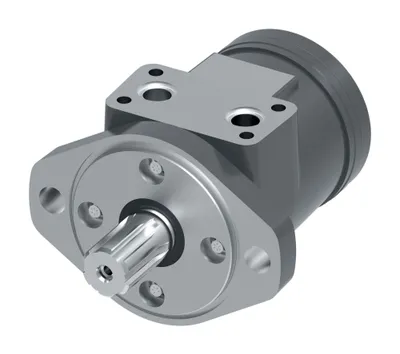

Danfoss

101-1729-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA02AC00A0000000000AA00J

Danfoss

101-1728-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA02AB0000000000000AA00J

Danfoss

101-1727-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA02AB0000000000000AA00J

Danfoss

101-1726-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA02AB00A0000000000AA00J

Danfoss

101-1725-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA02AB00A0000000000AA00J

Danfoss

101-1724-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA02AA0000000000000AA00J

Danfoss

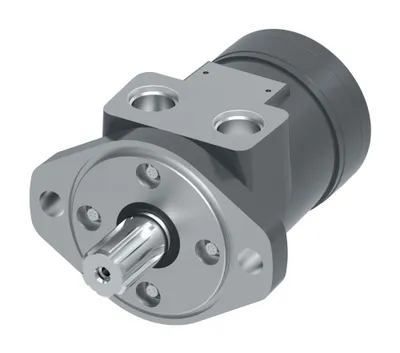

101-1723-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA02AA0000000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port thread type
101-1757-009	MH0022BA01AC00A0000000000AA00J	35	36 [2.2]	Woodruff key	Manifold
101-1756-009	MH0089BA01AB0000000000000AA00J	145	146 [8.9]	Woodruff key	NPT / NPTF
101-1755-009	MH0073BA01AB0000000000000AA00J	120	120 [7.3]	Woodruff key	NPT / NPTF
101-1754-009	MH0035BA01AB00A0000000000AA00J	60	58 [3.5]	Woodruff key	NPT / NPTF
101-1753-009	MH0022BA01AB00A0000000000AA00J	35	36 [2.2]	Woodruff key	NPT / NPTF
101-1752-009	MH0089BA01AA0000000000000AA00J	145	146 [8.9]	Woodruff key	UN / UNF
101-1751-009	MH0073BA01AA0000000000000AA00J	120	120 [7.3]	Woodruff key	UN / UNF
101-1750-009	MH0035BA01AA00A0000000000AA00J	60	58 [3.5]	Woodruff key	UN / UNF
101-1749-009	MH0022BA01AA00A0000000000AA00J	35	36 [2.2]	Woodruff key	UN / UNF
101-1748-009	MH0089AA24AF0200000000000AA00J	145	146 [8.9]	Square key, 8 x 30 mm	BSP
101-1747-009	MH0073AA24AF0200000000000AA00J	120	120 [7.3]	Square key, 8 x 30 mm	BSP
101-1746-009	MH0035AA24AF02A0000000000AA00J	60	58 [3.5]	Square key, 8 x 30 mm	BSP
101-1745-009	MH0022AA24AF02A0000000000AA00J	35	36 [2.2]	Square key, 8 x 30 mm	BSP
101-1743-009	MH0073AA24AD0200000000000AA00J	120	120 [7.3]	Square key, 8 x 30 mm	Manifold
101-1741-009	MH0022AA24AD02A0000000000AA00J	35	36 [2.2]	Square key, 8 x 30 mm	Manifold
101-1731-009	MH0073AA02AC0000000000000AA00J	120	120 [7.3]	n/a	Manifold
101-1730-009	MH0035AA02AC00A0000000000AA00J	60	58 [3.5]	n/a	Manifold
101-1729-009	MH0022AA02AC00A0000000000AA00J	35	36 [2.2]	n/a	Manifold
101-1728-009	MH0089AA02AB0000000000000AA00J	145	146 [8.9]	n/a	NPT / NPTF
101-1727-009	MH0073AA02AB0000000000000AA00J	120	120 [7.3]	n/a	NPT / NPTF
101-1726-009	MH0035AA02AB00A0000000000AA00J	60	58 [3.5]	n/a	NPT / NPTF
101-1725-009	MH0022AA02AB00A0000000000AA00J	35	36 [2.2]	n/a	NPT / NPTF
101-1724-009	MH0089AA02AA0000000000000AA00J	145	146 [8.9]	n/a	UN / UNF
101-1723-009	MH0073AA02AA0000000000000AA00J	120	120 [7.3]	n/a	UN / UNF

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Main port style	Sideport - aligned
Brake Release Port Dimension	n/a
Painted	Yes
