Danfoss 101-1845-009

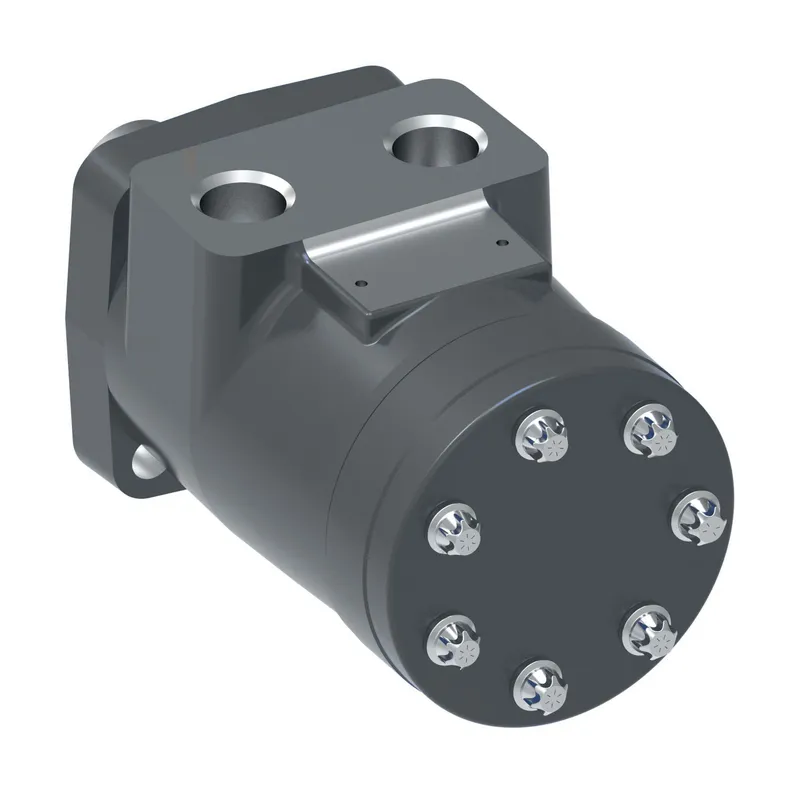

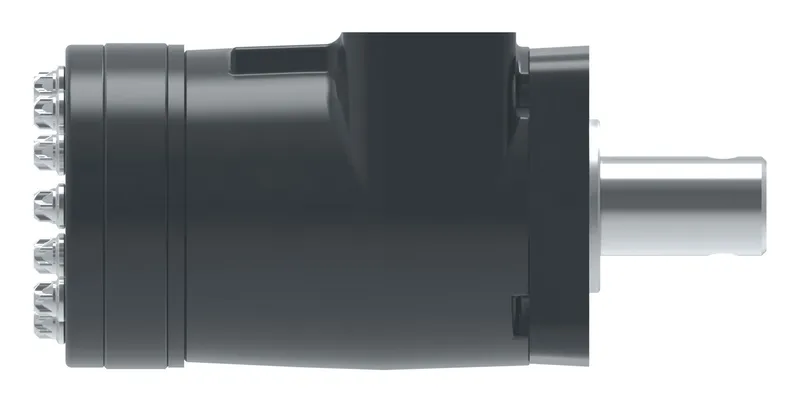

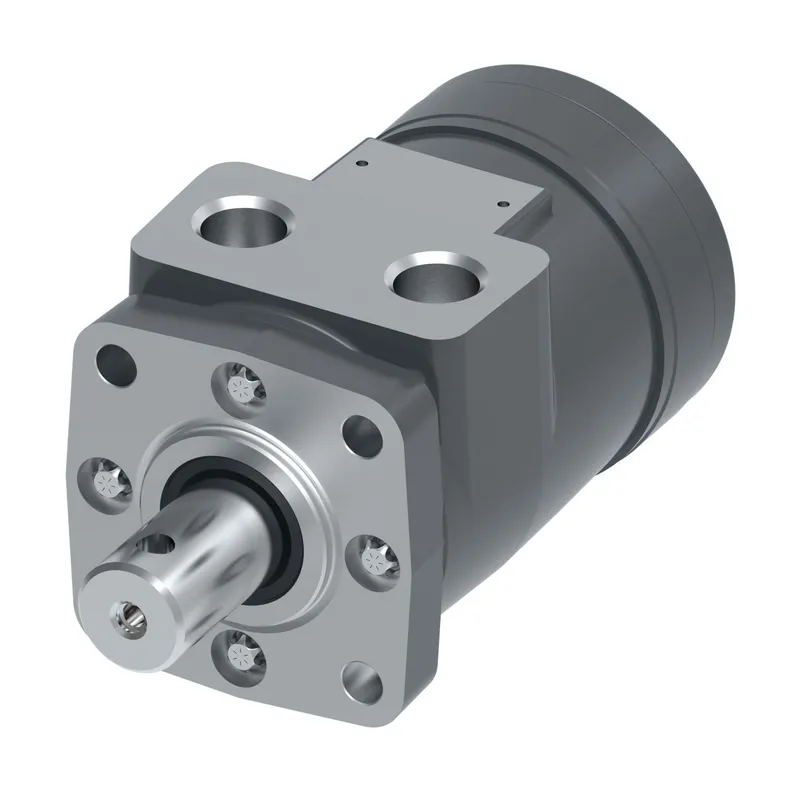

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA07AB0000000000000AA00J

MPN: 101-1845-009
Category: Danfoss orbital motor quick selector

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 101-1845-009?

Danfoss MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA07AB0000000000000AA00J, manufacturer part number 101-1845-009. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Model Code	MH0073BA07AB0000000000000AA00J
Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor size	120
Geometric displacement [cm3/r [in3/r]]	120 [7.3]
Motor type	Standard
Motor function	Standard
Mounting flange type	4 Bolt - Square
Mounting flange dimension [pilot dia x height, bolt circle dia, hole [mm [inch]]]	44.4 x 3.1, 82.6, 3/8 - 16 UNC-2B [1.75 x 0.12, 3.25, 3/8 - 16 UNC-2B]
Shaft type	Straight
Shaft dimension	Dia. 1 inch, Crosshole 0.316 inch - Spec. Component
Shaft Key	n/a
Main port thread type	NPT / NPTF
Main port style	Sideport - aligned
Main port dimension	1/2 - 14 NPTF
Drain Port Dimension	None
Brake Release Port Dimension	n/a
Painted	Yes
Paint information	Primer, Black, Low gloss
Special Features Assembly	Standard
Dust seal	Standard
Shaft Seal	NBR - Standard
Seal Kit	60540-000
Front bearing type	Journal bearing
Rear bearing type	Journal bearing
Orbital gearwheel set	Standard
Check valve function	No
Hydraulic valve function	None
Sensor	None
Packaging	No data available
Name Tag	Danfoss name tag
Design code	09
Brand	Danfoss
Sub brand	Char-Lynn
