Danfoss orbital motor quick selector Parts

Danfoss

101-3689-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA01AA0000000000000AA00J

Danfoss

101-3686-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AA0000000000000AA00J

Danfoss

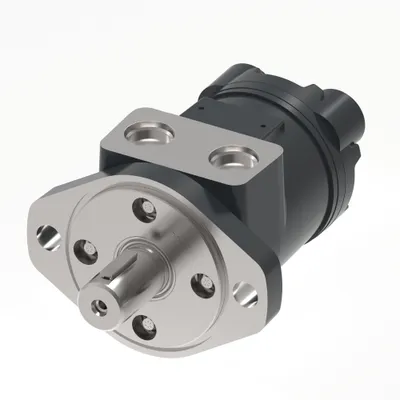

101-3682-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA07EB0100000000000AA00J

Danfoss

101-3681-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045AA01EB0100000000000AA00J

Danfoss

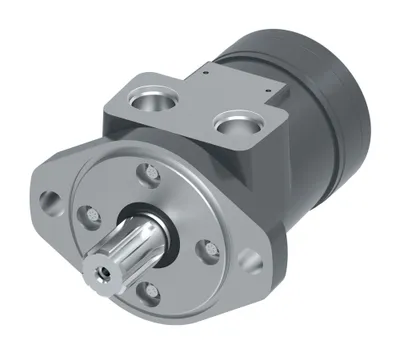

101-3673-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA02AA0000070000000AA00J

Danfoss

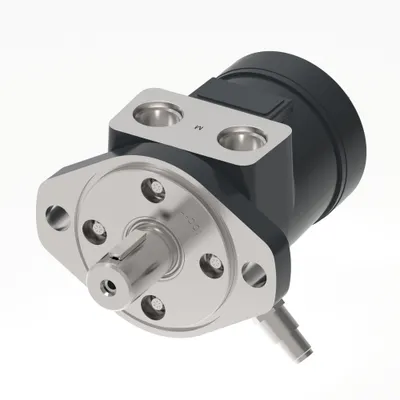

101-3669-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AA000007AB00000AA00J

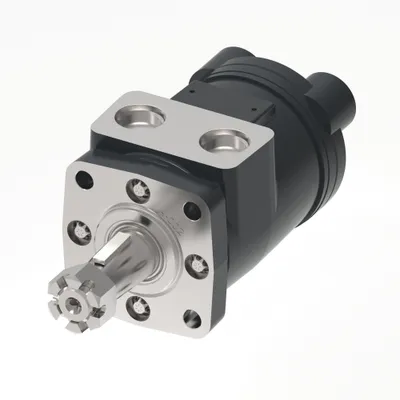

Danfoss

101-3664-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA40EB00A0000000000AA00J

Danfoss

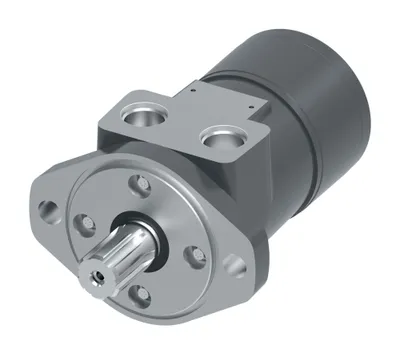

101-3658-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA02AA0000070000000AA00J

Danfoss

101-3649-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AA0000000000000AR00J

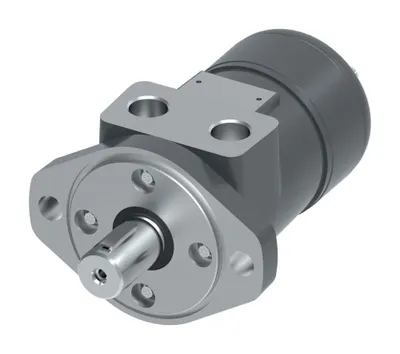

Danfoss

101-3641-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141AA24AF02A0000000000AA00J

Danfoss

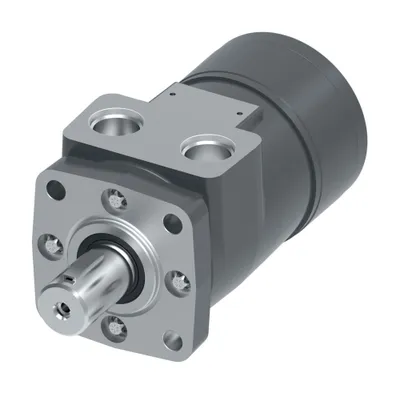

101-3638-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AA0000070000000AA00J

Danfoss

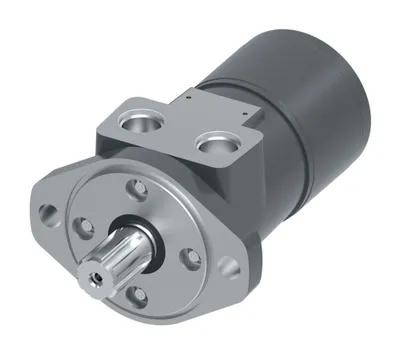

101-3637-009

MOTOR-ORBITAL,H SERIES 370 (22.6)

Danfoss

101-3630-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028FA01AF020N070000000AA00J

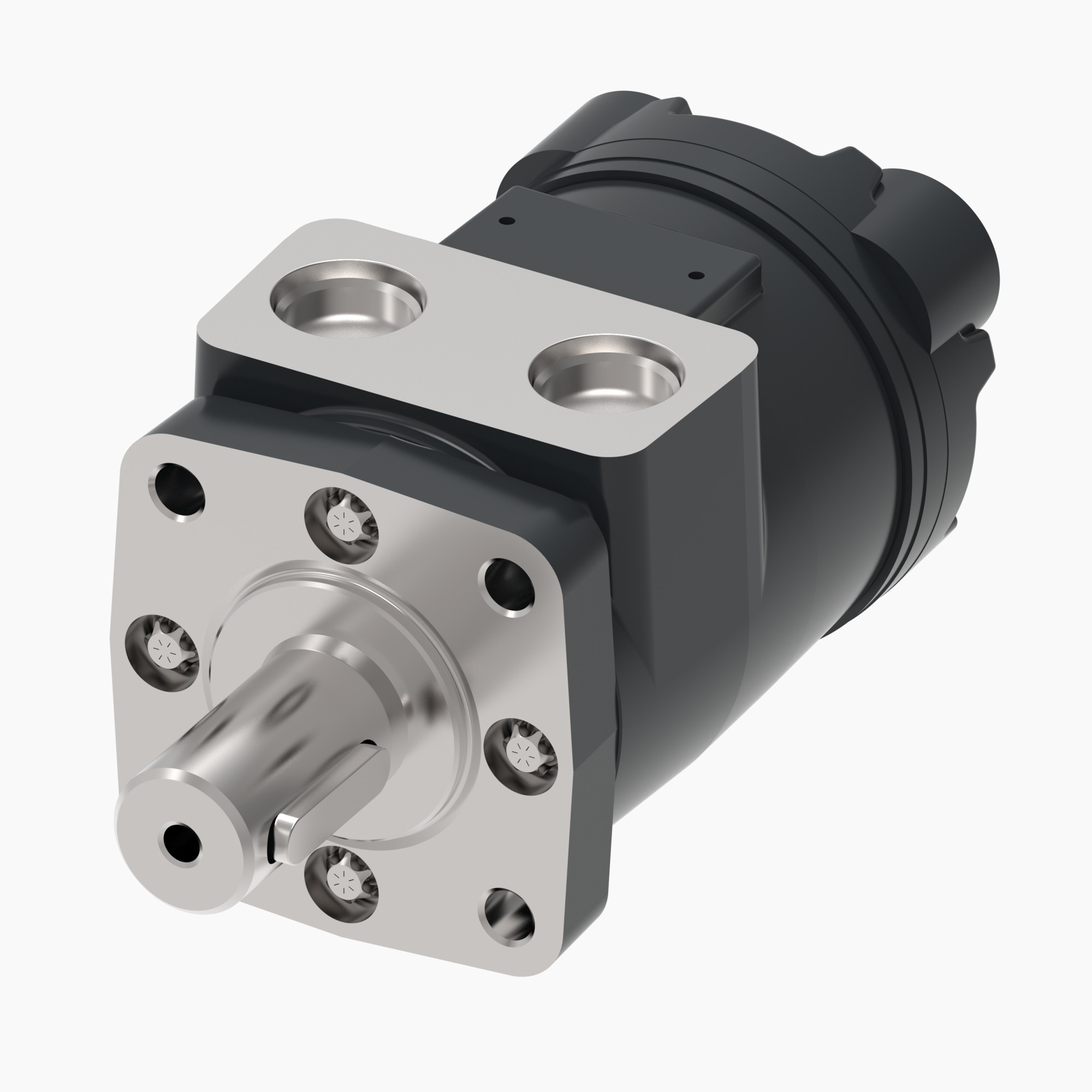

Danfoss

101-3629-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA24AF020N070000000AA00J

Danfoss

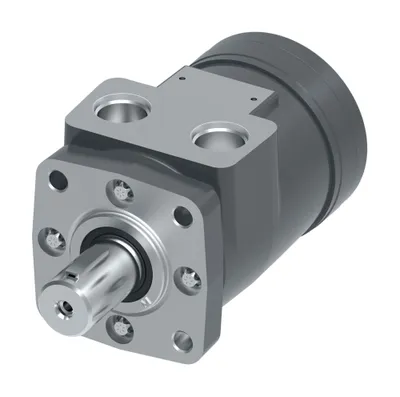

101-3624-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059FA01AL0000000000000AA00J

Danfoss

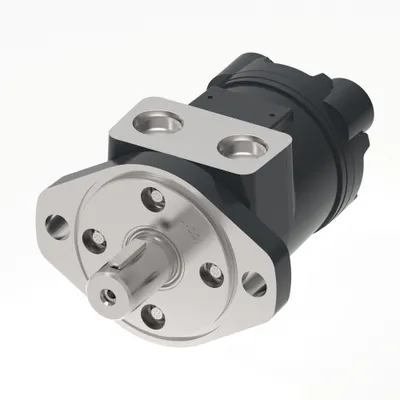

101-3620-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AA0000000000000AY00J

Danfoss

101-3619-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA01AA00A0000000000AY00J

Danfoss

101-3606-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AA0100070000000AA00J

Danfoss

101-3603-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA02AA00A0070000000AA00J

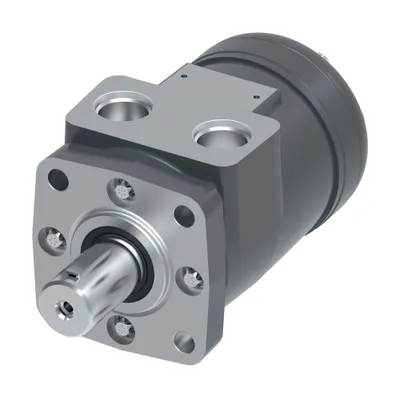

Danfoss

101-3590-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059BA01AA0100070000000AA00J

Danfoss

101-3572-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073AA01AA0000070000000AA00J

Danfoss

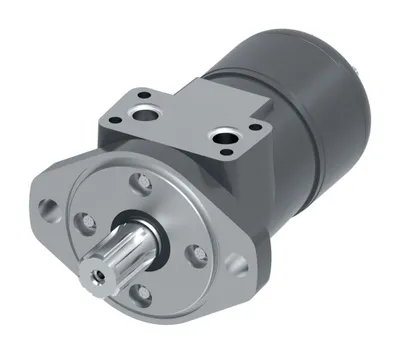

101-3566-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA02AC1800000000000AA00J

Danfoss

101-3565-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA02AC1800000000000AA00J

Danfoss

101-3561-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA01AA00AA00AB00000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Drain Port Dimension
101-3689-009	MH0045AA01AA0000000000000AA00J	75	74 [4.5]	UN / UNF	None
101-3686-009	MH0059BA01AA0000000000000AA00J	95	96 [5.9]	UN / UNF	None
101-3682-009	MH0089AA07EB0100000000000AA00J	145	146 [8.9]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3681-009	MH0045AA01EB0100000000000AA00J	75	74 [4.5]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3673-009	MH0073AA02AA0000070000000AA00J	120	120 [7.3]	UN / UNF	None
101-3669-009	MH0097AA01AA000007AB00000AA00J	160	159 [9.7]	UN / UNF	None
101-3664-009	MH0059BA40EB00A0000000000AA00J	95	96 [5.9]	UN / UNF	None
101-3658-009	MH0179AA02AA0000070000000AA00J	295	294 [17.9]	UN / UNF	None
101-3649-009	MH0028BA01AA0000000000000AR00J	45	46 [2.8]	UN / UNF	None
101-3641-009	MH0141AA24AF02A0000000000AA00J	230	231 [14.1]	BSP	G 1/4
101-3638-009	MH0141BA01AA0000070000000AA00J	230	231 [14.1]	UN / UNF	None
101-3630-009	MH0028FA01AF020N070000000AA00J	45	46 [2.8]	BSP	G 1/4
101-3629-009	MH0059AA24AF020N070000000AA00J	95	96 [5.9]	BSP	G 1/4
101-3624-009	MH0059FA01AL0000000000000AA00J	95	96 [5.9]	Metric	None
101-3620-009	MH0059AA01AA0000000000000AY00J	95	96 [5.9]	UN / UNF	None
101-3619-009	MH0035AA01AA00A0000000000AY00J	60	58 [3.5]	UN / UNF	None
101-3606-009	MH0073BA01AA0100070000000AA00J	120	120 [7.3]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3603-009	MH0022AA02AA00A0070000000AA00J	35	36 [2.2]	UN / UNF	None
101-3590-009	MH0059BA01AA0100070000000AA00J	95	96 [5.9]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3572-009	MH0073AA01AA0000070000000AA00J	120	120 [7.3]	UN / UNF	None
101-3566-009	MH0179AA02AC1800000000000AA00J	295	294 [17.9]	Manifold	9/16 - 18 UNF-2A SAE O-Ring port
101-3565-009	MH0059AA02AC1800000000000AA00J	95	96 [5.9]	Manifold	9/16 - 18 UNF-2A SAE O-Ring port
101-3561-009	MH0022BA01AA00AA00AB00000AA00J	35	36 [2.2]	UN / UNF	None

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
