Danfoss orbital motor quick selector Parts

Danfoss

101-3877-009

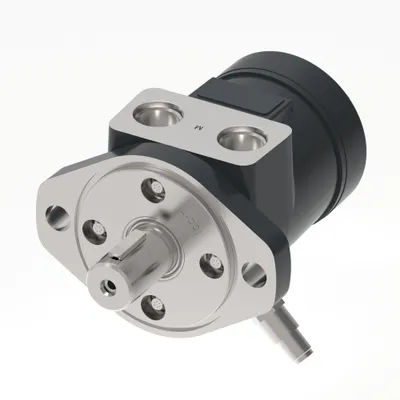

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA01AA00A000AA00000AA00J

Danfoss

101-3875-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01AA000N000000000AY00J

Danfoss

101-3874-009

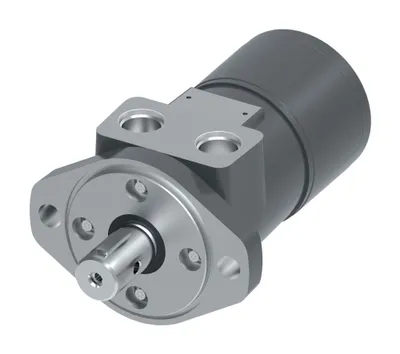

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226AA05AA0000000000000AA00J

Danfoss

101-3869-009

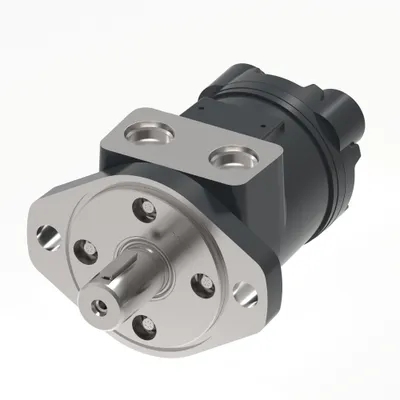

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01EB0100000000000AA00J

Danfoss

101-3863-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035AA01AA10A0000000000AA00J

Danfoss

101-3842-009

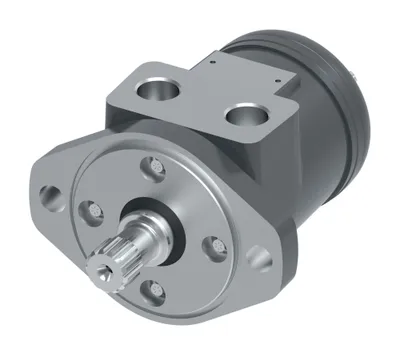

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA16AF0200000000000AA00J

Danfoss

101-3838-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AA0000030000000AJ00J

Danfoss

101-3835-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AA1100070000AJ0AA00J

Danfoss

101-3825-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA08AA000N000000000AA00J

Danfoss

101-3823-009

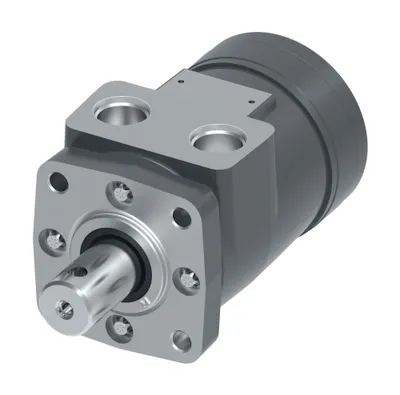

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073FA07AL0000000000000AA00J

Danfoss

101-3822-009

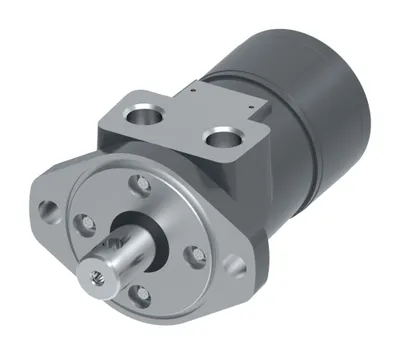

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179AA08AB0000000000000AA00J

Danfoss

101-3821-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113AA16AC0000000000000AA00J

Danfoss

101-3802-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089BA01AA0000000000AJ0AA00J

Danfoss

101-3794-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA02AL18A0000000000AA00J

Danfoss

101-3793-009

MOTOR-ORBITAL,H SERIES 40 [2.5], MH0025FA02AL18A0000000000AA00J

Danfoss

101-3790-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028AA01EB0100000000000AA00J

Danfoss

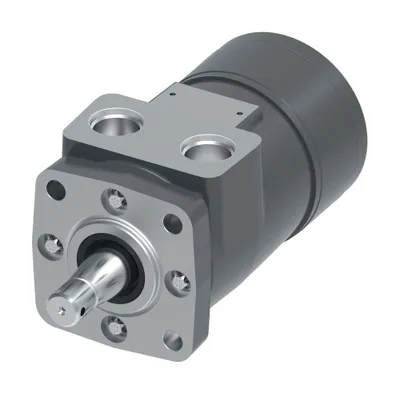

101-3787-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA18AA0000000000000AA00J

Danfoss

101-3778-009

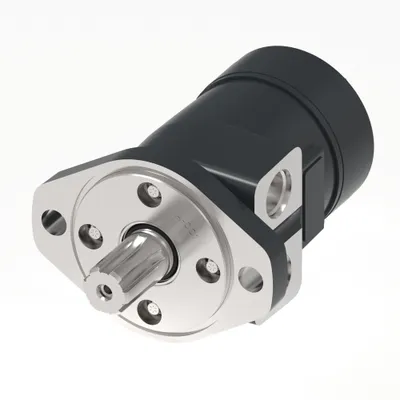

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AA0000000000002AJ00J

Danfoss

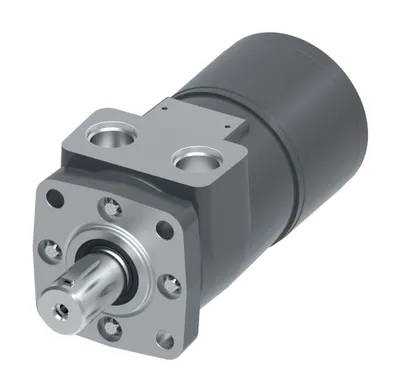

101-3775-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AA0000000000000AY00J

Danfoss

101-3774-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA01AA0000000000000AY00J

Danfoss

101-3773-009

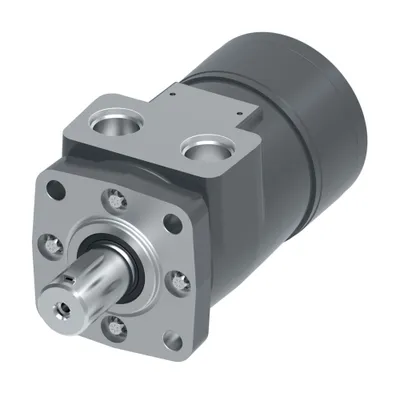

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA01AA0000000000000AY00J

Danfoss

101-3772-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AA0000000000000AY00J

Danfoss

101-3771-009

MOTOR-ORBITAL,H SERIES 75 [4.5], MH0045BA01AA0000000000000AY00J

Danfoss

101-3770-009

MOTOR-ORBITAL,H SERIES 60 [3.5], MH0035BA01AA00A0000000000AY00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port thread type	Drain Port Dimension
101-3877-009	MH0035AA01AA00A000AA00000AA00J	60	58 [3.5]	UN / UNF	None
101-3875-009	MH0028AA01AA000N000000000AY00J	45	46 [2.8]	UN / UNF	None
101-3874-009	MH0226AA05AA0000000000000AA00J	370	370 [22.6]	UN / UNF	None
101-3869-009	MH0059AA01EB0100000000000AA00J	95	96 [5.9]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3863-009	MH0035AA01AA10A0000000000AA00J	60	58 [3.5]	UN / UNF	No data available
101-3842-009	MH0028AA16AF0200000000000AA00J	45	46 [2.8]	BSP	G 1/4
101-3838-009	MH0097AA01AA0000030000000AJ00J	160	159 [9.7]	UN / UNF	None
101-3835-009	MH0073BA01AA1100070000AJ0AA00J	120	120 [7.3]	UN / UNF	No data available
101-3825-009	MH0028BA08AA000N000000000AA00J	45	46 [2.8]	UN / UNF	None
101-3823-009	MH0073FA07AL0000000000000AA00J	120	120 [7.3]	Metric	None
101-3822-009	MH0179AA08AB0000000000000AA00J	295	294 [17.9]	NPT / NPTF	None
101-3821-009	MH0113AA16AC0000000000000AA00J	185	185 [11.3]	Manifold	None
101-3802-009	MH0089BA01AA0000000000AJ0AA00J	145	146 [8.9]	UN / UNF	None
101-3794-009	MH0028AA02AL18A0000000000AA00J	45	46 [2.8]	Metric	9/16 - 18 UNF-2A SAE O-Ring port
101-3793-009	MH0025FA02AL18A0000000000AA00J	40	41 [2.5]	Metric	9/16 - 18 UNF-2A SAE O-Ring port
101-3790-009	MH0028AA01EB0100000000000AA00J	45	46 [2.8]	UN / UNF	7/16 - 20 UNF-2B SAE O-Ring port
101-3787-009	MH0141BA18AA0000000000000AA00J	230	231 [14.1]	UN / UNF	None
101-3778-009	MH0097AA01AA0000000000002AJ00J	160	159 [9.7]	UN / UNF	None
101-3775-009	MH0226BA01AA0000000000000AY00J	370	370 [22.6]	UN / UNF	None
101-3774-009	MH0179BA01AA0000000000000AY00J	295	294 [17.9]	UN / UNF	None
101-3773-009	MH0141BA01AA0000000000000AY00J	230	231 [14.1]	UN / UNF	None
101-3772-009	MH0073BA01AA0000000000000AY00J	120	120 [7.3]	UN / UNF	None
101-3771-009	MH0045BA01AA0000000000000AY00J	75	74 [4.5]	UN / UNF	None
101-3770-009	MH0035BA01AA00A0000000000AY00J	60	58 [3.5]	UN / UNF	None

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Motor function	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Dust seal	Standard
