Danfoss orbital motor quick selector Parts

Danfoss

101-3766-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA08AA000000AB00000AA00J

Danfoss

101-3763-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AH0100020000AJ0AA00J

Danfoss

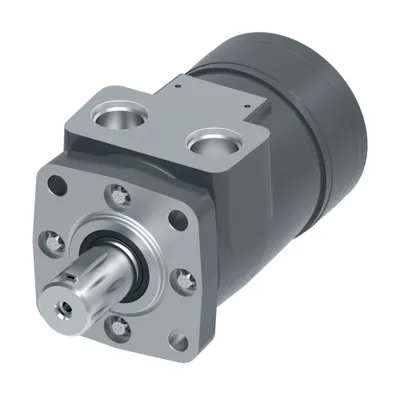

101-3748-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097BA01AA0000000000000AY00J

Danfoss

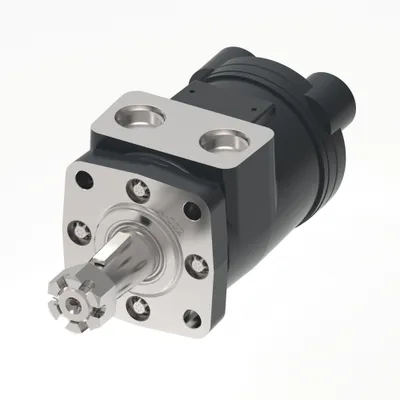

101-3742-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01EB0000070000000AA00J

Danfoss

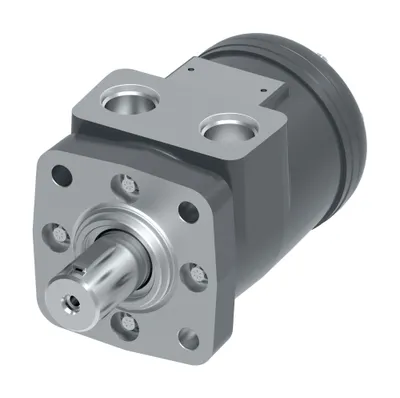

101-3741-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA01AA0100130000000AA00J

Danfoss

101-3739-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA07AA0000070000000AA00J

Danfoss

101-3729-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA02AA0000070000000AA00J

Danfoss

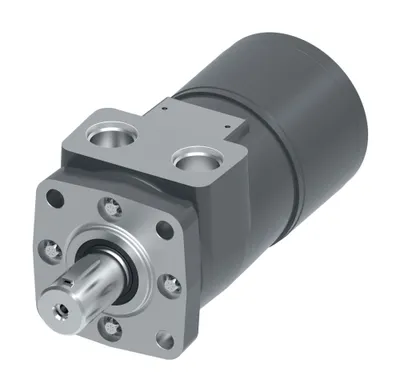

101-3724-009

MOTOR-ORBITAL,H SERIES 740 [45.1], MH0451BA01AA00A0030000000AA00J

Danfoss

101-3721-009

MOTOR-ORBITAL,H SERIES 370 [22.6], MH0226BA01AA0000030000AB0AA00J

Danfoss

101-3720-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01AA0000070000AJ0AA00J

Danfoss

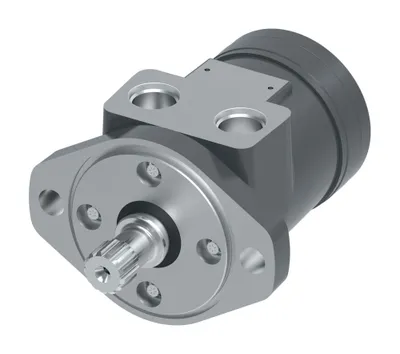

101-3718-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA16AA00A0000000000AA00J

Danfoss

101-3717-009

MOTOR-ORBITAL,H SERIES 185 [11.3], MH0113BA18EB0100000000000AA00J

Danfoss

101-3716-009

MOTOR-ORBITAL,H SERIES 740 [45.1], MH0451BA01AA00A0000000AB0AA00J

Danfoss

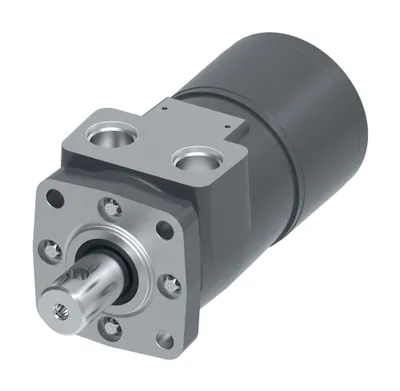

101-3715-009

MOTOR-ORBITAL,H SERIES 740 [45.1], MH0451BA08AA00A0000000000AA00J

Danfoss

101-3711-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022BA18EB01A0000000AJ0AA00J

Danfoss

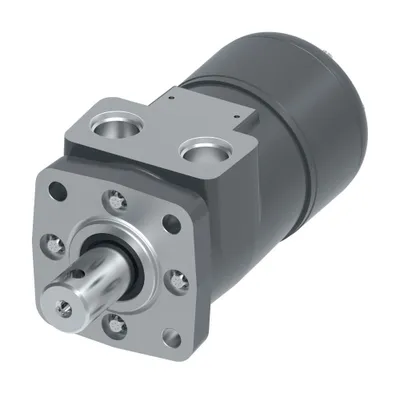

101-3709-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BD07AA0100070000000AA00J

Danfoss

101-3708-009

MOTOR-ORBITAL,H SERIES 45 [2.8], MH0028BA18EB0100040000AJ0AA00J

Danfoss

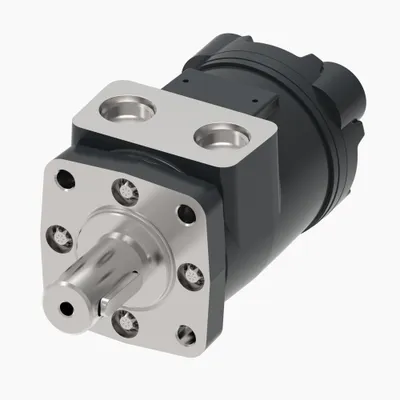

101-3706-009

MOTOR-ORBITAL,H SERIES 120 [7.3], MH0073BA01EB0100070000AJ0AA00J

Danfoss

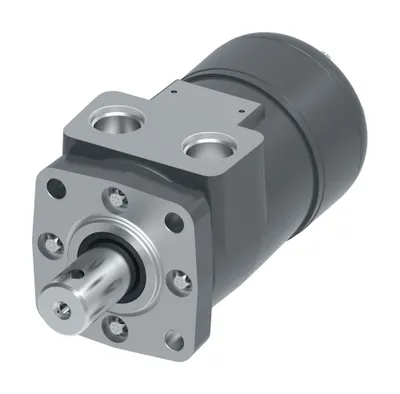

101-3704-009

MOTOR-ORBITAL,H SERIES 230 [14.1], MH0141BA07AA0100040000AJ0AA00J

Danfoss

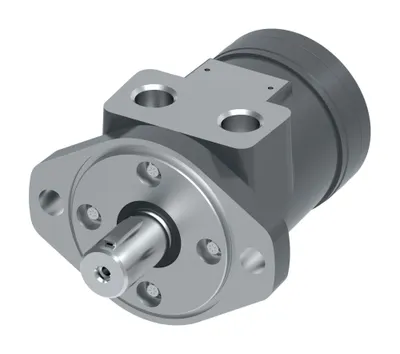

101-3700-009

MOTOR-ORBITAL,H SERIES 95 [5.9], MH0059AA01AB0000000000AB0AA00J

Danfoss

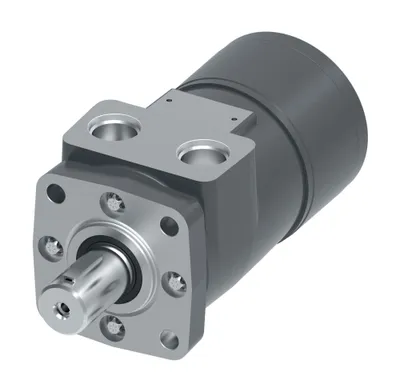

101-3698-009

MOTOR-ORBITAL,H SERIES 295 [17.9], MH0179BA01AA0000000000000AA00J

Danfoss

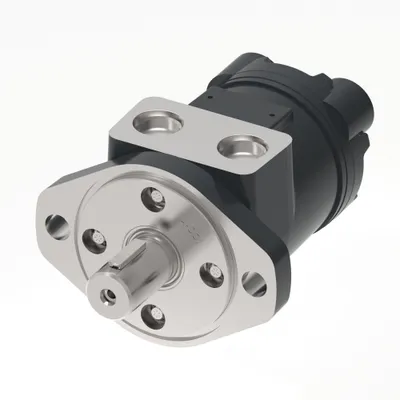

101-3697-009

MOTOR-ORBITAL,H SERIES 145 [8.9], MH0089AA02EB0000000000000AA00J

Danfoss

101-3696-009

MOTOR-ORBITAL,H SERIES 35 [2.2], MH0022AA02EB00A0000000000AA00J

Danfoss

101-3690-009

MOTOR-ORBITAL,H SERIES 160 [9.7], MH0097AA01AA0000000000000AA00J

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Main port dimension	Seal Kit
101-3766-009	MH0028BA08AA000000AB00000AA00J	45	46 [2.8]	7/8 - 14 UNF-2B SAE O-Ring port	60540-000
101-3763-009	MH0097BA01AH0100020000AJ0AA00J	160	159 [9.7]	3/4 - 16 UNF-2B SAE O-Ring port	60573-000
101-3748-009	MH0097BA01AA0000000000000AY00J	160	159 [9.7]	7/8 - 14 UNF-2B SAE O-Ring port	60540-000
101-3742-009	MH0028BA01EB0000070000000AA00J	45	46 [2.8]	3/4 - 16 UNF-2B SAE O-Ring port	60572-000
101-3741-009	MH0028BA01AA0100130000000AA00J	45	46 [2.8]	7/8 - 14 UNF-2B SAE O-Ring port	9900076-000
101-3739-009	MH0179BA07AA0000070000000AA00J	295	294 [17.9]	7/8 - 14 UNF-2B SAE O-Ring port	60572-000
101-3729-009	MH0059AA02AA0000070000000AA00J	95	96 [5.9]	7/8 - 14 UNF-2B SAE O-Ring port	60572-000
101-3724-009	MH0451BA01AA00A0030000000AA00J	740	739 [45.1]	7/8 - 14 UNF-2B SAE O-Ring port	No data available
101-3721-009	MH0226BA01AA0000030000AB0AA00J	370	370 [22.6]	7/8 - 14 UNF-2B SAE O-Ring port	No data available
101-3720-009	MH0073BA01AA0000070000AJ0AA00J	120	120 [7.3]	7/8 - 14 UNF-2B SAE O-Ring port	60572-000
101-3718-009	MH0059AA16AA00A0000000000AA00J	95	96 [5.9]	7/8 - 14 UNF-2B SAE O-Ring port	60540-000
101-3717-009	MH0113BA18EB0100000000000AA00J	185	185 [11.3]	3/4 - 16 UNF-2B SAE O-Ring port	60540-000
101-3716-009	MH0451BA01AA00A0000000AB0AA00J	740	739 [45.1]	7/8 - 14 UNF-2B SAE O-Ring port	9901031-000
101-3715-009	MH0451BA08AA00A0000000000AA00J	740	739 [45.1]	7/8 - 14 UNF-2B SAE O-Ring port	9901031-000
101-3711-009	MH0022BA18EB01A0000000AJ0AA00J	35	36 [2.2]	3/4 - 16 UNF-2B SAE O-Ring port	60540-000
101-3709-009	MH0179BD07AA0100070000000AA00J	295	294 [17.9]	7/8 - 14 UNF-2B SAE O-Ring port	60572-000
101-3708-009	MH0028BA18EB0100040000AJ0AA00J	45	46 [2.8]	3/4 - 16 UNF-2B SAE O-Ring port	60561-000
101-3706-009	MH0073BA01EB0100070000AJ0AA00J	120	120 [7.3]	3/4 - 16 UNF-2B SAE O-Ring port	60572-000
101-3704-009	MH0141BA07AA0100040000AJ0AA00J	230	231 [14.1]	7/8 - 14 UNF-2B SAE O-Ring port	60561-000
101-3700-009	MH0059AA01AB0000000000AB0AA00J	95	96 [5.9]	1/2 - 14 NPTF	60540-000
101-3698-009	MH0179BA01AA0000000000000AA00J	295	294 [17.9]	7/8 - 14 UNF-2B SAE O-Ring port	60540-000
101-3697-009	MH0089AA02EB0000000000000AA00J	145	146 [8.9]	3/4 - 16 UNF-2B SAE O-Ring port	60540-000
101-3696-009	MH0022AA02EB00A0000000000AA00J	35	36 [2.2]	3/4 - 16 UNF-2B SAE O-Ring port	60540-000
101-3690-009	MH0097AA01AA0000000000000AA00J	160	159 [9.7]	7/8 - 14 UNF-2B SAE O-Ring port	60540-000

Common to all listed parts

Motor Series	H Series
Valve system	Spool valve
Orbital gearwheel set type	Gerotor
Motor type	Standard
Brake Release Port Dimension	n/a
Painted	Yes
Special Features Assembly	Standard
Front bearing type	Journal bearing
