Danfoss orbital motor quick selector Parts

Danfoss

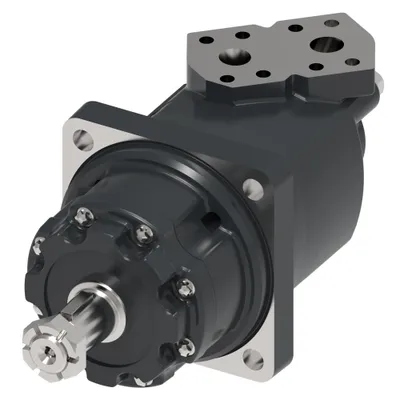

110-1083-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AC02AB02000000000000000F

Danfoss

110-1082-006

MOTOR-ORBITAL,4000 SERIES 130 [7.9], M04080AC02AB02000000000000000F

Danfoss

110-1081-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AC02AB02000000000000000F

Danfoss

110-1080-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC01AB02000000000000000F

Danfoss

110-1079-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC01AB02000000000000000F

Danfoss

110-1078-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC01AB02000000000000000F

Danfoss

110-1077-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AC01AB02000000000000000F

Danfoss

110-1076-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AC01AB02000000000000000F

Danfoss

110-1073-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AD02AB0200000000000AD00F

Danfoss

110-1044-006

MOTOR 4K-006, M04080AC02AD02000000000000000F

Danfoss

110-1041-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC01AD02000000000000000F

Danfoss

110-1007-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AC02AD02000000000000000F

Danfoss

109-1754-006

4K MOTOR/MED BLACK/FREE RUN/LOW NOISE, M04099AF03AD0200020001700AKAGF

Danfoss

109-1752-006

4K MOTOR/LOCTITE, M04240AF10AD020000A0013000000F

Danfoss

109-1751-006

4K MOTOR/HP/LOCTITE, M04301AF10AD020000A0013000000F

Danfoss

109-1749-006

4K MOTOR/HP/LOCTITE, M04301AB10AD020000A0013000000F

Danfoss

109-1748-006

4K MOTOR/PR BLACK/HP/SP SEN READY, M04080AB03AB020000AAF0000AA00F

Danfoss

109-1747-006

4K MOTOR/LOCTITE, M04240AB10AD020000A0013000000F

Danfoss

109-1745-006

4K MOTOR/SPEED SENSOR, M04125AB03AB0200000AA00000000F

Danfoss

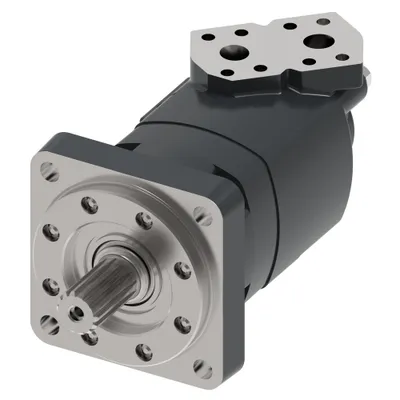

109-1744-006

4K MOTOR/PR BLACK, M04099AF07AD0200000000000AA00F

Danfoss

109-1743-006

4K MOTOR/PR BLACK, M04099AF03AD0200000000000AA00F

Danfoss

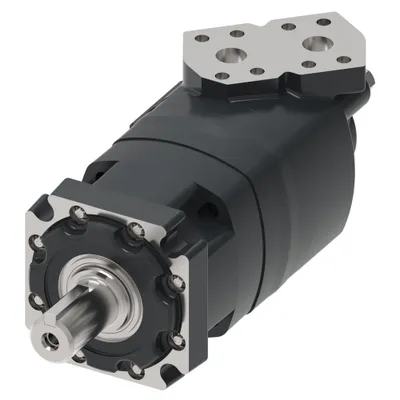

109-1736-006

4K MOTOR/HP, M04190AB02AD020000A0000000000F

Danfoss

109-1730-006

4K MOTOR/PRLG BLK/SP SEN, M04190AB03AB0200000AA0000AD00F

Danfoss

109-1728-006

MOTOR 4K-006, M04080AB01AB02000010000000000F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Paint information
110-1083-006	M04099AC02AB02000000000000000F	160	162.2 [9.90]	Square key, 7/16 x 1 1/4 inch	n/a
110-1082-006	M04080AC02AB02000000000000000F	130	130.3 [7.95]	Square key, 7/16 x 1 1/4 inch	n/a
110-1081-006	M04067AC02AB02000000000000000F	110	109.8 [6.70]	Square key, 7/16 x 1 1/4 inch	n/a
110-1080-006	M04240AC01AB02000000000000000F	395	393.9 [24.04]	Square key, 5/16 x 1 5/8 inch	n/a
110-1079-006	M04190AC01AB02000000000000000F	310	311.8 [19.03]	Square key, 5/16 x 1 5/8 inch	n/a
110-1078-006	M04150AC01AB02000000000000000F	245	246.3 [15.03]	Square key, 5/16 x 1 5/8 inch	n/a
110-1077-006	M04125AC01AB02000000000000000F	205	205.5 [12.54]	Square key, 5/16 x 1 5/8 inch	n/a
110-1076-006	M04099AC01AB02000000000000000F	160	162.2 [9.90]	Square key, 5/16 x 1 5/8 inch	n/a
110-1073-006	M04190AD02AB0200000000000AD00F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	Primer, Black, Low gloss
110-1044-006	M04080AC02AD02000000000000000F	130	130.3 [7.95]	Square key, 7/16 x 1 1/4 inch	n/a
110-1041-006	M04150AC01AD02000000000000000F	245	246.3 [15.03]	Square key, 5/16 x 1 5/8 inch	n/a
110-1007-006	M04099AC02AD02000000000000000F	160	162.2 [9.90]	Square key, 7/16 x 1 1/4 inch	n/a
109-1754-006	M04099AF03AD0200020001700AKAGF	160	162.2 [9.90]	n/a	Primer, Black, Medium gloss, Customized
109-1752-006	M04240AF10AD020000A0013000000F	395	393.9 [24.04]	n/a	n/a
109-1751-006	M04301AF10AD020000A0013000000F	495	492.6 [30.06]	n/a	n/a
109-1749-006	M04301AB10AD020000A0013000000F	495	492.6 [30.06]	n/a	n/a
109-1748-006	M04080AB03AB020000AAF0000AA00F	130	130.3 [7.95]	n/a	Primer, Black, Low gloss
109-1747-006	M04240AB10AD020000A0013000000F	395	393.9 [24.04]	n/a	n/a
109-1745-006	M04125AB03AB0200000AA00000000F	205	205.5 [12.54]	n/a	n/a
109-1744-006	M04099AF07AD0200000000000AA00F	160	162.2 [9.90]	n/a	Primer, Black, Low gloss
109-1743-006	M04099AF03AD0200000000000AA00F	160	162.2 [9.90]	n/a	Primer, Black, Low gloss
109-1736-006	M04190AB02AD020000A0000000000F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	n/a
109-1730-006	M04190AB03AB0200000AA0000AD00F	310	311.8 [19.03]	n/a	Primer, Black, Low gloss
109-1728-006	M04080AB01AB02000010000000000F	130	130.3 [7.95]	Square key, 5/16 x 1 5/8 inch	n/a

Common to all listed parts

Motor Series	4000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Drain Port Dimension	7/16 - 20 UNF-2B SAE O-Ring port
Brake Release Port Dimension	n/a
Special Features Assembly	Standard
Dust seal	Standard
Front bearing type	Tapered roller bearing
