Danfoss orbital motor quick selector Parts

Showing 3,337–3,360 of 11,614 parts
Danfoss 109-1621-006 – MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AF07AD02000000000000000F
Danfoss
109-1621-006

MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AF07AD02000000000000000F

Danfoss 109-1619-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB03AB0200000000000AA00F
Danfoss
109-1619-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB03AB0200000000000AA00F

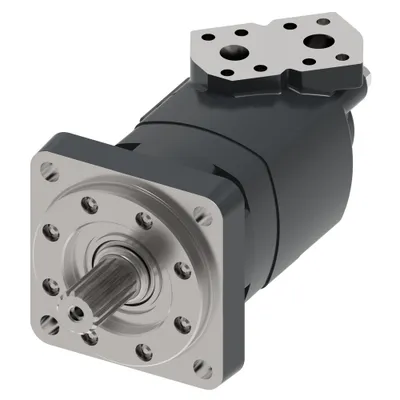

Danfoss 109-1618-006 – MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AF03AD02000200017000000F
Danfoss
109-1618-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AF03AD02000200017000000F

Danfoss 109-1616-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB11AC0300000000000AA00F
Danfoss
109-1616-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB11AC0300000000000AA00F

Danfoss 109-1615-006 – MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AB01AD0200000000000AA00F
Danfoss
109-1615-006

MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AB01AD0200000000000AA00F

Danfoss 109-1589-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AF03AD02000000000000000F
Danfoss
109-1589-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AF03AD02000000000000000F

Danfoss 109-1584-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AB0200000000000AR00F
Danfoss
109-1584-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AB0200000000000AR00F

Danfoss 109-1582-006 – MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB11AC0300000000000AA00F
Danfoss
109-1582-006

MOTOR-ORBITAL,4000 SERIES 110 [6.7], M04067AB11AC0300000000000AA00F

Danfoss 109-1558-006 – MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB30AF0200000AG2200AA00F
Danfoss
109-1558-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AB30AF0200000AG2200AA00F

Danfoss 109-1549-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB10AB02000000000000000F
Danfoss
109-1549-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB10AB02000000000000000F

Danfoss 109-1547-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB10AB02000000000000000F
Danfoss
109-1547-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB10AB02000000000000000F

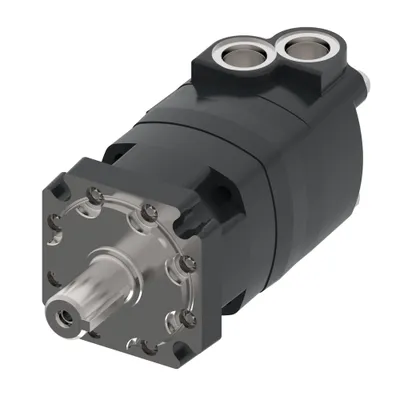

Danfoss 109-1498-006 – MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB01AC03000000000000000F
Danfoss
109-1498-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB01AC03000000000000000F

Danfoss 109-1492-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB01AB0200000000000AA00F
Danfoss
109-1492-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB01AB0200000000000AA00F

Danfoss 109-1479-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB02AB02000000000000000F
Danfoss
109-1479-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AB02AB02000000000000000F

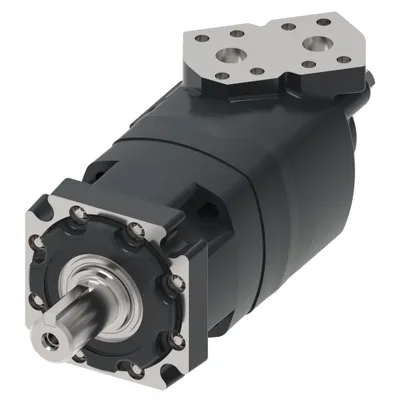

Danfoss 109-1475-006 – MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AB03AD02000200017000000F
Danfoss
109-1475-006

MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AB03AD02000200017000000F

Danfoss 109-1473-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AC03000000000000000F
Danfoss
109-1473-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB01AC03000000000000000F

Danfoss 109-1468-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB11AC0300000000000AA00F
Danfoss
109-1468-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AB11AC0300000000000AA00F

Danfoss 109-1466-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB01AB0200000AA00000000F
Danfoss
109-1466-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB01AB0200000AA00000000F

Danfoss 109-1464-006 – MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AB03AB0200000000000AA00F
Danfoss
109-1464-006

MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AB03AB0200000000000AA00F

Danfoss 109-1462-006 – MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB11AB01000000000000000F
Danfoss
109-1462-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AB11AB01000000000000000F

Danfoss 109-1460-006 – MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB11AC0300000000000AA00F
Danfoss
109-1460-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AB11AC0300000000000AA00F

Danfoss 109-1459-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB03AB0200000000000AA00F
Danfoss
109-1459-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AB03AB0200000000000AA00F

Danfoss 109-1453-006 – MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AF10AB0200000000000AA00F
Danfoss
109-1453-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AF10AB0200000000000AA00F

Danfoss 109-1450-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF07AD02000000013000000F
Danfoss
109-1450-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AF07AD02000000013000000F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNModel CodeMotor sizeGeometric displacement [cm3/r [in3/r]]Shaft KeyMain port thread type
109-1621-006M04080AF07AD02000000000000000F130130.3 [7.95]n/aManifold
109-1619-006M04301AB03AB0200000000000AA00F495492.6 [30.06]n/aUN / UNF
109-1618-006M04099AF03AD02000200017000000F160162.2 [9.90]n/aManifold
109-1616-006M04190AB11AC0300000000000AA00F310311.8 [19.03]Rectangular key, 8 x 12 x 70 mmBSP
109-1615-006M04080AB01AD0200000000000AA00F130130.3 [7.95]Square key, 5/16 x 1 5/8 inchManifold
109-1589-006M04301AF03AD02000000000000000F495492.6 [30.06]n/aManifold
109-1584-006M04190AB01AB0200000000000AR00F310311.8 [19.03]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1582-006M04067AB11AC0300000000000AA00F110109.8 [6.70]Rectangular key, 8 x 12 x 70 mmBSP
109-1558-006M04099AB30AF0200000AG2200AA00F160162.2 [9.90]n/aSpecial
109-1549-006M04150AB10AB02000000000000000F245246.3 [15.03]n/aUN / UNF
109-1547-006M04301AB10AB02000000000000000F495492.6 [30.06]n/aUN / UNF
109-1498-006M04125AB01AC03000000000000000F205205.5 [12.54]Square key, 5/16 x 1 5/8 inchBSP
109-1492-006M04301AB01AB0200000000000AA00F495492.6 [30.06]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1479-006M04301AB02AB02000000000000000F495492.6 [30.06]Square key, 7/16 x 1 1/4 inchUN / UNF
109-1475-006M04080AB03AD02000200017000000F130130.3 [7.95]n/aManifold
109-1473-006M04190AB01AC03000000000000000F310311.8 [19.03]Square key, 5/16 x 1 5/8 inchBSP
109-1468-006M04240AB11AC0300000000000AA00F395393.9 [24.04]Rectangular key, 8 x 12 x 70 mmBSP
109-1466-006M04150AB01AB0200000AA00000000F245246.3 [15.03]Square key, 5/16 x 1 5/8 inchUN / UNF
109-1464-006M04381AB03AB0200000000000AA00F625623.9 [38.07]n/aUN / UNF
109-1462-006M04190AB11AB01000000000000000F310311.8 [19.03]Rectangular key, 8 x 12 x 70 mmUN / UNF
109-1460-006M04125AB11AC0300000000000AA00F205205.5 [12.54]Rectangular key, 8 x 12 x 70 mmBSP
109-1459-006M04150AB03AB0200000000000AA00F245246.3 [15.03]n/aUN / UNF
109-1453-006M04240AF10AB0200000000000AA00F395393.9 [24.04]n/aUN / UNF
109-1450-006M04150AF07AD02000000013000000F245246.3 [15.03]n/aManifold

Common to all listed parts

Motor Series4000 Series
Valve systemDisc valve with valve drive
Orbital gearwheel set typeGeroler
Motor typeStandard
Mounting flange type4 Bolt - Square
Brake Release Port Dimensionn/a
Special Features AssemblyStandard
Dust sealStandard
