Danfoss orbital motor quick selector Parts

Danfoss

110-1145-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AD02AB0200004000000AD00F

Danfoss

110-1144-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC02AB02000000020000000F

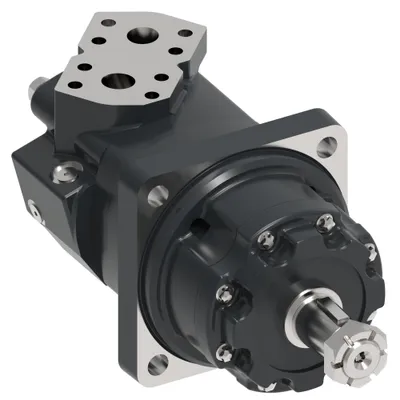

Danfoss

110-1136-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC02AC03000000000000000F

Danfoss

110-1135-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC02AC0300000000600AA00F

Danfoss

110-1134-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC02AC0300000000600AA00F

Danfoss

110-1130-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC02AB0200000000000AD00F

Danfoss

110-1129-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC02AB0200000000000AA00F

Danfoss

110-1125-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC11AC0300000000000AA00F

Danfoss

110-1122-006

MOTOR-ORBITAL,4000 SERIES 625 [38], M04381AC01AB02000000000000000F

Danfoss

110-1120-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC02AA01000000000000000F

Danfoss

110-1117-006

MOTOR-ORBITAL,4000 SERIES 625 [38.1], M04381AC02AB02000000000000000F

Danfoss

110-1116-006

MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB02000000000000000F

Danfoss

110-1113-006

MOTOR 4K-006/PAINT BLK, M04190AC11AC0300000000000AA00F

Danfoss

110-1112-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC11AC0300000000000AA00F

Danfoss

110-1110-006

MOTOR-ORBITAL,4000 SERIES 160 [9.9], M04099AC11AC0300000000000AA00F

Danfoss

110-1109-006

MOTOR 4K-006/PAINT BLK, M04080AC11AC0300000000000AA00F

Danfoss

110-1094-006

MOTOR 4K-006, M04240AC03AB02000000000000000F

Danfoss

110-1093-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC03AB02000000000000000F

Danfoss

110-1092-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC03AB02000000000000000F

Danfoss

110-1089-006

MOTOR-ORBITAL,4000 SERIES 130 [8], M04080AC03AB02000000000000000F

Danfoss

110-1087-006

MOTOR-ORBITAL,4000 SERIES 395 [24], M04240AC02AB02000000000000000F

Danfoss

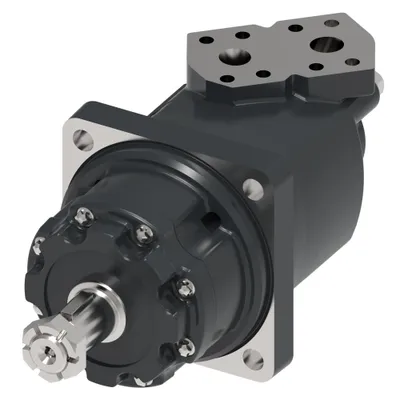

110-1086-006

MOTOR-ORBITAL,4000 SERIES 310 [19], M04190AC02AB02000000000000000F

Danfoss

110-1085-006

MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC02AB02000000000000000F

Danfoss

110-1084-006

MOTOR-ORBITAL,4000 SERIES 205 [12.5], M04125AC02AB02000000000000000F

Compare Danfoss orbital motor quick selector

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Model Code	Motor size	Geometric displacement [cm3/r [in3/r]]	Shaft Key	Main port dimension
110-1145-006	M04190AD02AB0200004000000AD00F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1144-006	M04240AC02AB02000000020000000F	395	393.9 [24.04]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1136-006	M04150AC02AC03000000000000000F	245	246.3 [15.03]	Square key, 7/16 x 1 1/4 inch	G 3/4
110-1135-006	M04240AC02AC0300000000600AA00F	395	393.9 [24.04]	Square key, 7/16 x 1 1/4 inch	G 3/4
110-1134-006	M04190AC02AC0300000000600AA00F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	G 3/4
110-1130-006	M04240AC02AB0200000000000AD00F	395	393.9 [24.04]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1129-006	M04190AC02AB0200000000000AA00F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1125-006	M04240AC11AC0300000000000AA00F	395	393.9 [24.04]	Rectangular key, 8 x 12 x 70 mm	G 3/4
110-1122-006	M04381AC01AB02000000000000000F	625	623.9 [38.07]	Square key, 5/16 x 1 5/8 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1120-006	M04190AC02AA01000000000000000F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	7/8 - 14 UNF-2B SAE O-Ring port
110-1117-006	M04381AC02AB02000000000000000F	625	623.9 [38.07]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1116-006	M04301AC02AB02000000000000000F	495	492.6 [30.06]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1113-006	M04190AC11AC0300000000000AA00F	310	311.8 [19.03]	Rectangular key, 8 x 12 x 70 mm	G 3/4
110-1112-006	M04150AC11AC0300000000000AA00F	245	246.3 [15.03]	Rectangular key, 8 x 12 x 70 mm	G 3/4
110-1110-006	M04099AC11AC0300000000000AA00F	160	162.2 [9.90]	Rectangular key, 8 x 12 x 70 mm	G 3/4
110-1109-006	M04080AC11AC0300000000000AA00F	130	130.3 [7.95]	Rectangular key, 8 x 12 x 70 mm	G 3/4
110-1094-006	M04240AC03AB02000000000000000F	395	393.9 [24.04]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
110-1093-006	M04190AC03AB02000000000000000F	310	311.8 [19.03]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
110-1092-006	M04150AC03AB02000000000000000F	245	246.3 [15.03]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
110-1089-006	M04080AC03AB02000000000000000F	130	130.3 [7.95]	n/a	1 1/16 - 12 UN-2B SAE O-Ring port
110-1087-006	M04240AC02AB02000000000000000F	395	393.9 [24.04]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1086-006	M04190AC02AB02000000000000000F	310	311.8 [19.03]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1085-006	M04150AC02AB02000000000000000F	245	246.3 [15.03]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port
110-1084-006	M04125AC02AB02000000000000000F	205	205.5 [12.54]	Square key, 7/16 x 1 1/4 inch	1 1/16 - 12 UN-2B SAE O-Ring port

Common to all listed parts

Motor Series	4000 Series
Valve system	Disc valve with valve drive
Orbital gearwheel set type	Geroler
Motor type	Wheel
Motor function	Standard
Mounting flange type	4 Bolt - Wheel
Main port style	Sideport - staggered
Brake Release Port Dimension	n/a
