Danfoss orbital motor quick selector Parts
![Danfoss 11008044 – MOTOR-ORBITAL,TMV SERIES 630 [38.4]](/media/assets/danfoss-drives/11008044/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 11008044 – MOTOR-ORBITAL,TMV SERIES 630 [38.4]")
![Danfoss 11008043 – MOTOR-ORBITAL,TMV SERIES 500 [30.5]](/media/assets/danfoss-drives/11008043/images/sha256_7a7ce347bac56a1c41a72d3dc66e89683928d3461708e71ff6a2dad2c815736f.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fphotos%2Fpreview%2Flatest%2F119476%2FID114021258166-0101_preview.jpg&w=400 "Danfoss 11008043 – MOTOR-ORBITAL,TMV SERIES 500 [30.5]")

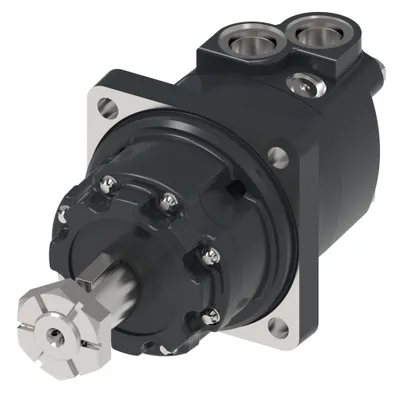

![Danfoss 110-1276-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200000AB0000AA00F](/media/assets/danfoss-drives/110-1276-006/images/sha256_46dcf2cc76606b80fa34b01f1b6311e21a223db5ec420b6d1f8b9d41266c2e1d.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F396529%2FID488238271541-0101_preview.jpg&w=400 "Danfoss 110-1276-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200000AB0000AA00F")
![Danfoss 110-1271-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC01AB0200000AA00000000F](/media/assets/danfoss-drives/110-1271-006/images/sha256_46dcf2cc76606b80fa34b01f1b6311e21a223db5ec420b6d1f8b9d41266c2e1d.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F396529%2FID488238271541-0101_preview.jpg&w=400 "Danfoss 110-1271-006 – MOTOR-ORBITAL,4000 SERIES 245 [15], M04150AC01AB0200000AA00000000F")
![Danfoss 110-1270-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200000000000AA00F](/media/assets/danfoss-drives/110-1270-006/images/sha256_2c2774db1aa7810f883986af90b5b36952b716398e0bcae3e934ad9e35d0f222.jpg?src=https%3A%2F%2Fassets.danfoss.com%2Fdrawings%2Fpreview%2Flatest%2F400926%2FID488238108508-0201_preview.jpg&w=400 "Danfoss 110-1270-006 – MOTOR-ORBITAL,4000 SERIES 495 [30], M04301AC02AB0200000000000AA00F")
Compare Danfoss orbital motor quick selector
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Motor Series | Motor size | Geometric displacement [cm3/r [in3/r]] | Main port dimension | Seal Kit |
|---|---|---|---|---|---|
| 11008907 | TMK Series | 400 | 397.2 [24.24] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |
| 11008905 | TMK Series | 250 | 252.2 [15.39] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |
| 11008904 | TMK Series | 200 | 201.5 [12.30] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |
| 11008903 | TMK Series | 160 | 158.0 [9.64] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |

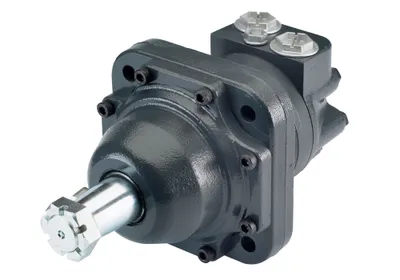

| 11008899 | TMK Series | 470 | 471.1 [28.75] | 1 1/16 - 12 UN-2B SAE O-Ring port, | 151F0142 |
| 11006502 | OMT Series | 500 | 523.6 [31.95] | G 3/4, 4 x M10 block mounting threads | 151B0161 |
| 11005426 | TMT Series | 500 | 494.8 [30.19] | G 3/4 | 151B0176 |
| 110-1276-006 | 4000 Series | 495 | 492.6 [30.06] | 1 1/16 - 12 UN-2B SAE O-Ring port | 61232-000 |
| 110-1271-006 | 4000 Series | 245 | 246.3 [15.03] | 1 1/16 - 12 UN-2B SAE O-Ring port | 61232-000 |
| 110-1270-006 | 4000 Series | 495 | 492.6 [30.06] | 1 1/16 - 12 UN-2B SAE O-Ring port | 61232-000 |
Common to all listed parts
| Valve system | Disc valve with valve drive |
| Orbital gearwheel set type | Geroler |
| Main port style | Sideport - staggered |
| Special Features Assembly | Standard |
| Shaft Seal | NBR - Standard |
| Front bearing type | Tapered roller bearing |
| Rear bearing type | Tapered roller bearing |
| Orbital gearwheel set | Standard |
