Schneider Electric NSYAEFPF40SC

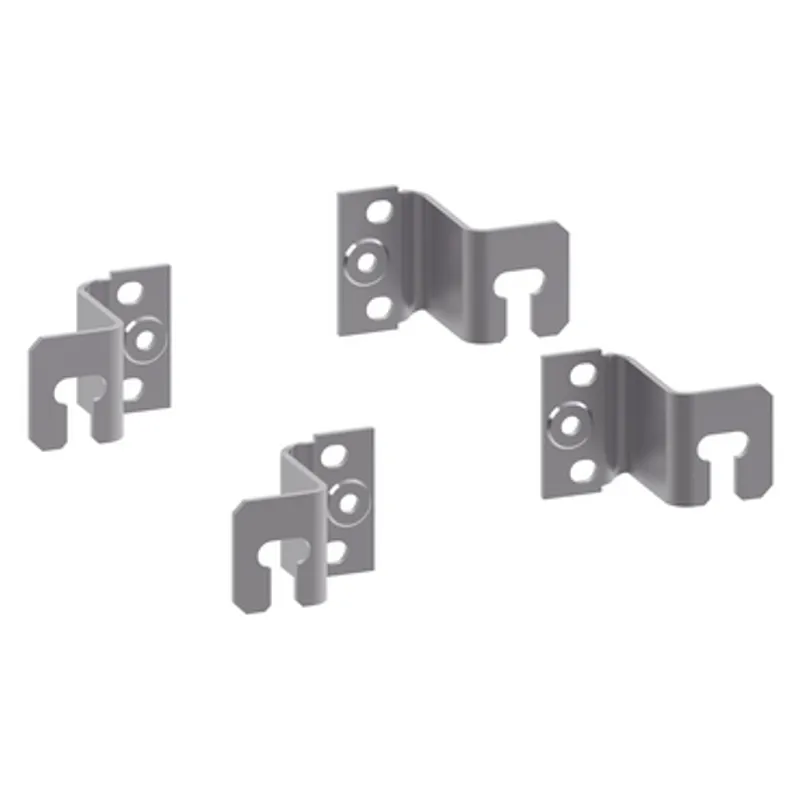

Steel wall fixing lugs 40 mm (4) for PanelSeT 3D encl.
- MPN
- NSYAEFPF40SC
- EAN
- 3606480168734
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYAEFPF40SC?
Schneider Electric Steel wall fixing lugs 40 mm (4) for PanelSeT 3D encl., manufacturer part number NSYAEFPF40SC. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Fixing accessory |
| Product or component type | Wall fixing support |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | - |
| Mounting location | Rear of enclosure |
| Range compatibility | PanelSeT PanelSeT S3D |
| Device composition | Fixing screws, 4 lug, 4 pre-mounted sealing gasket |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Zinc coated |
| Fixing mode | Screwed - screw type M8 - inside location |
| Permanent permissible load | 100 kg |
| Height | 45 mm |
| Width | 60 mm |
| Depth | Wall-enclosure separation : 40 mm |
| Diameter | 10 mm |
| Net weight | 0.324 kg |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 11.000 cm × 11.000 cm × 3.500 cm (L × W × H), 322.000 g |
| Package 2 | 40 CAR, 40.000 cm × 30.000 cm × 20.000 cm (L × W × H), 13.450 kg |
| Package 3 | 480 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 169.000 kg |
